U-Shield

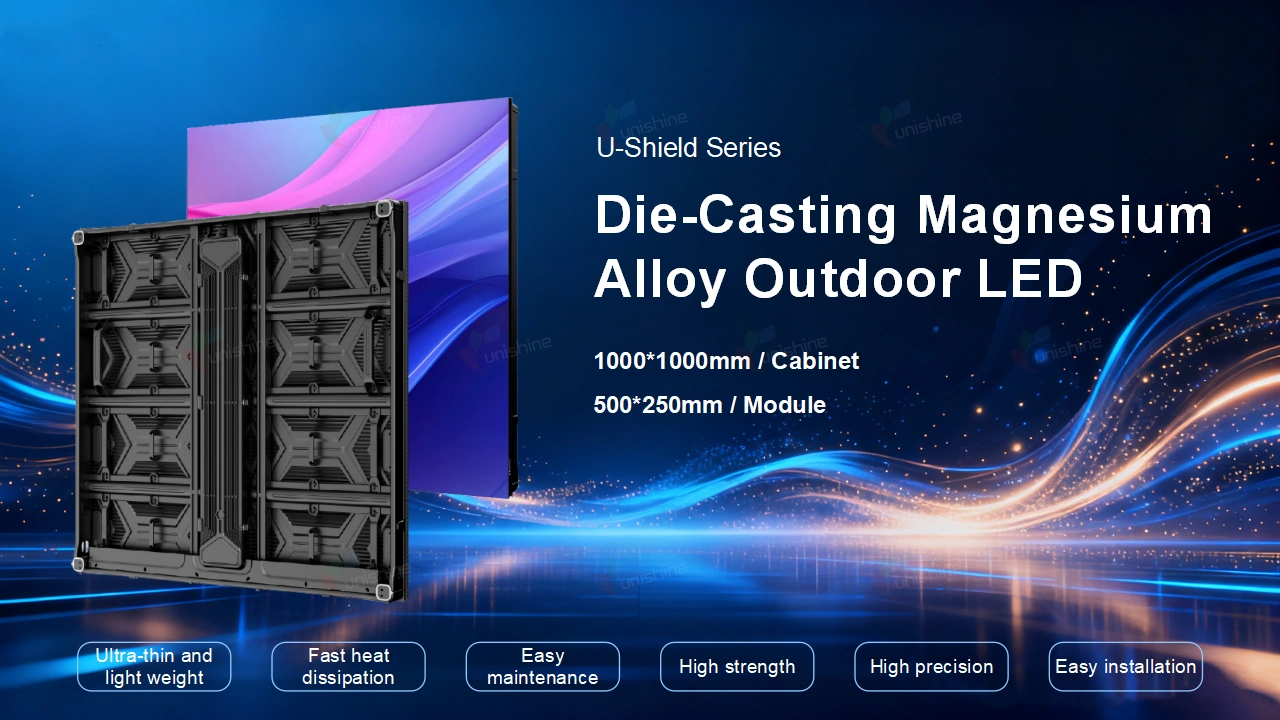

1000*1000mm Die-casting Magnesium Alloy Cabinet Outdoor LED Display

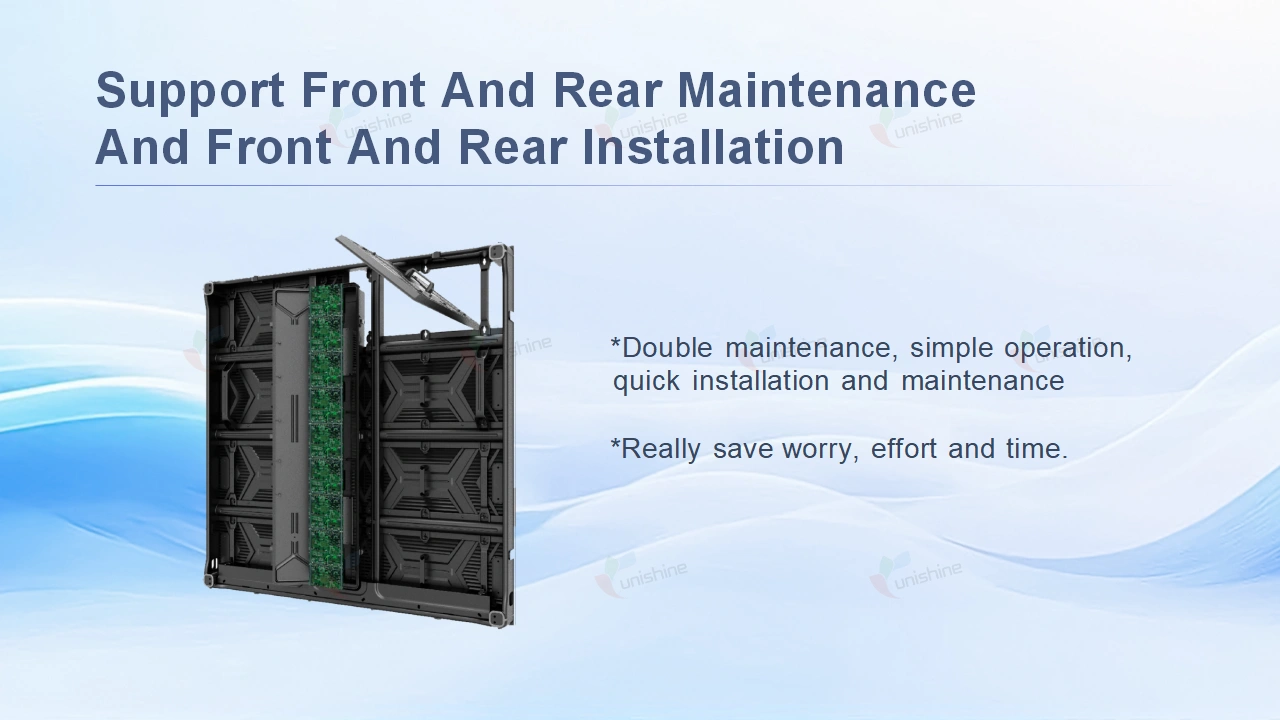

1.Double maintenance, simple operation, quick installation and maintenance.
2.Really save worry, effort and time.

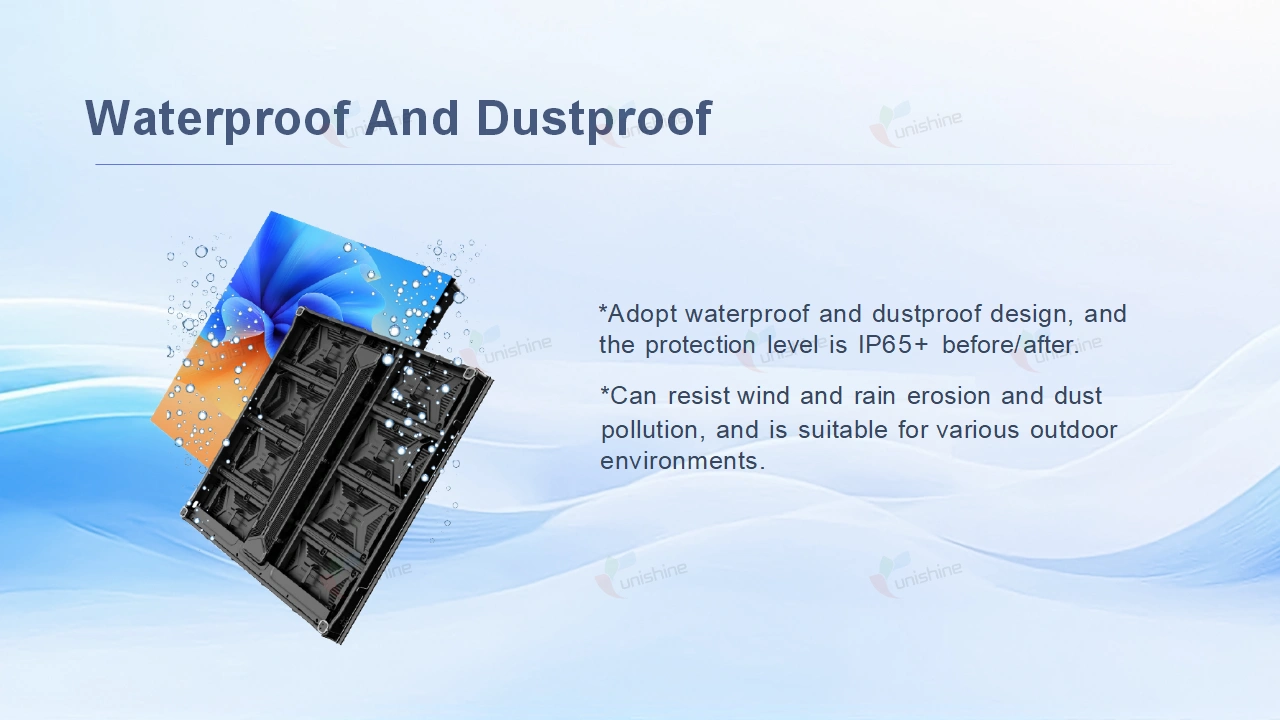

3.Adopt waterproof and dustproof design, and the protection level is IP65+ before/after.
4.Can resist wind and rain erosion and dust pollution, and is suitable for various outdoor environments.

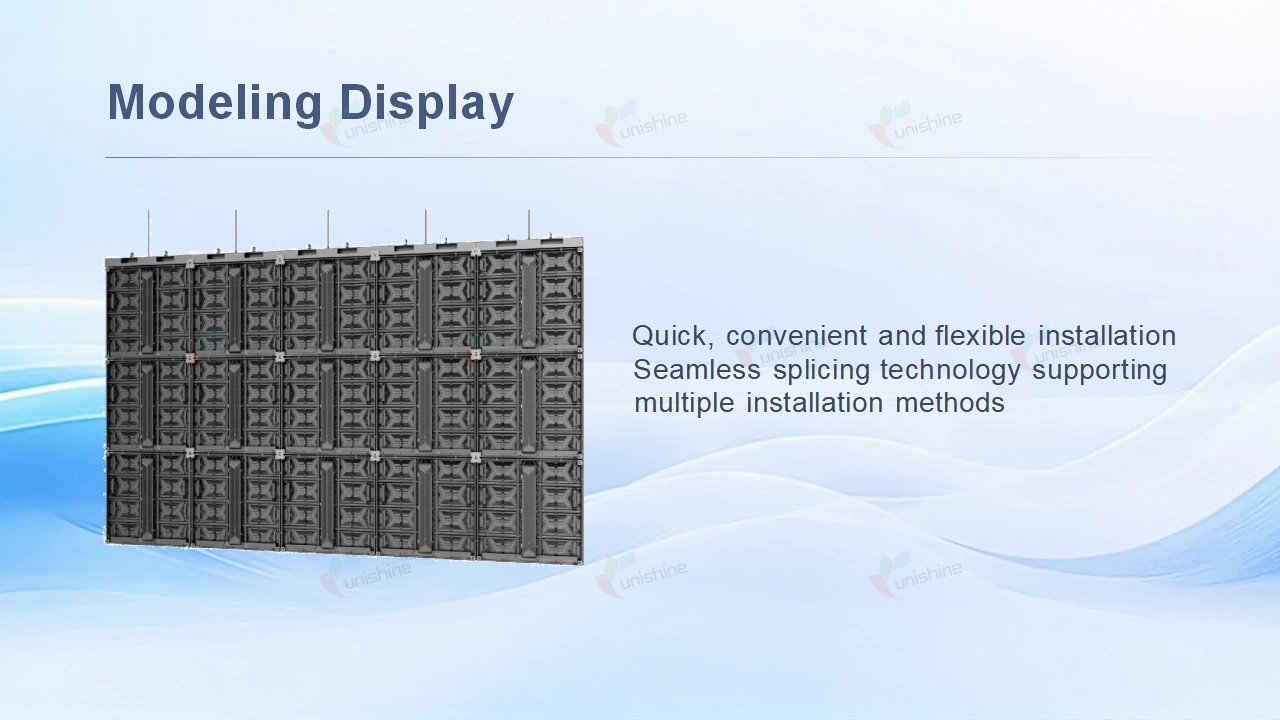

5.Quick, convenient and flexible installation Seamless splicing technology supporting multiple installation methods.
6.20000cd high brightness optional.
|
U-Shield |
||||||
|
Pixel pitch(mm) |
2.97 |
3.91 |
4.81 |
6.25 |
7.81 |
10.42 |
|
Pixel density(dots/m²) |
112896 |
65536 |
43264 |
25600 |
16384 |
9216 |
|
LED encapsulation |
SMD1415 |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 / 3535 |
SMD2727 / 3535 |
|
Driving method |
1/21 |
1/16 |
1/13 |
1/5 |
1/4 |
1/2 |
|
Resolution of module（dot） |
168*84 |
128*64 |
104*52 |
80*40 |
64*32 |
48*24 |
|
Module size(mm) |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
|
Module consumption(W) |
24 |
24 |
24 |
24 |
24 |
24 |
|
Working voltage(V) |
4.2V / 3.2V |
4.2V / 3.2V |
4.2V / 3.2V |
4.2V / 3.2V |
4.2V / 3.2V |
4.2V / 3.2V |
|
Max.consumption(W/m²) |
＜550 |
＜550 |
＜550 |
＜550 |
＜550 |
＜550 |
|
Ave.consumption(W/m²) |
150 |
150 |
150 |
150 |
150 |
150 |
|
Brightness(CD/m²) |
4000-6000 |
4000-6000 |
4000-6000 |
5500-10000 |
5500-10000 /20000 |
5500-10000 |
|
Cabinet Size(mm) |
1000*1000 |
1000*1000 |
1000*1000 |
1000*1000 |
1000*1000 |
1000*1000 |
|

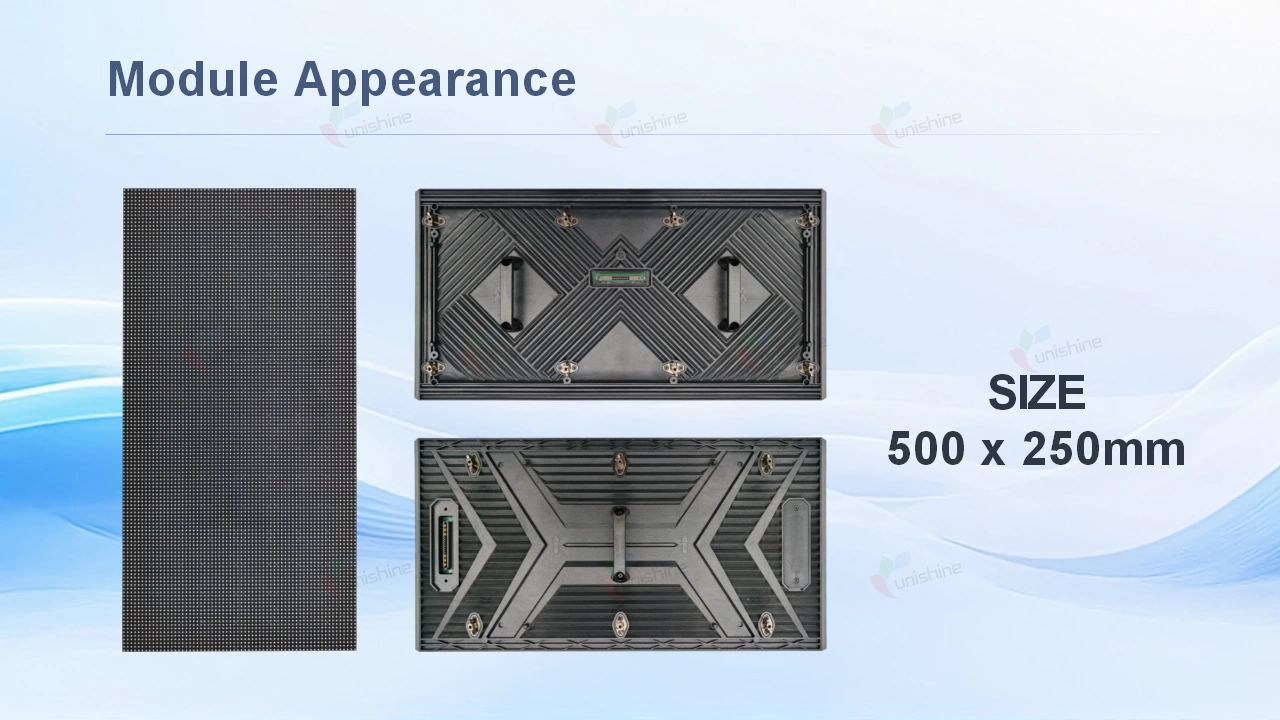

Module Size(mm) |
500*2550 |
500*2550 |
500*2550 |
500*2550 |
500*2550 |
500*2550 |
|
Refresh rate(Hz) |
3840 / 7680 |
3840 / 7680 |
3840 / 7680 |
3840 / 7680 |
3840 / 7680 |
3840 / 7680 |
|
Cabinet Weight(kg) |
23 |
23 |
23 |
23 |
23 |
23 |
|
Working temperature（℃） |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
|
Protect degree(F/B) |
IP65 |
IP65 |
IP65 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
