Uni-P

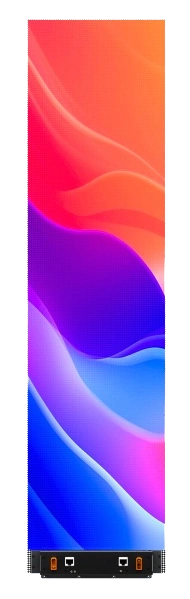

Hanging Holographic Invisible LED Screen
1.Standard all-in-one machine;
2.Built-in sending card, only one power supply cable, plug in and play;
3.Whole screen transparent and invisible;

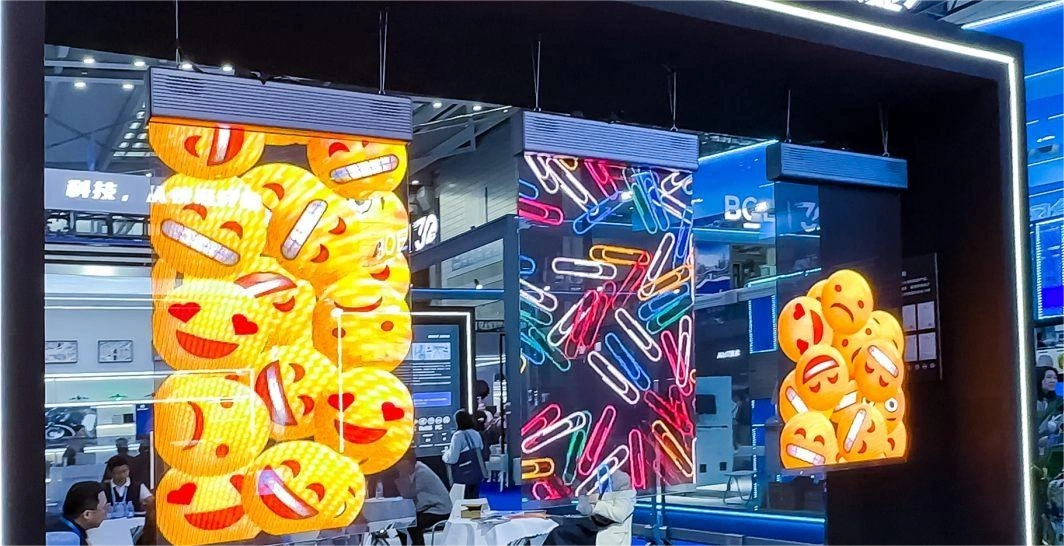

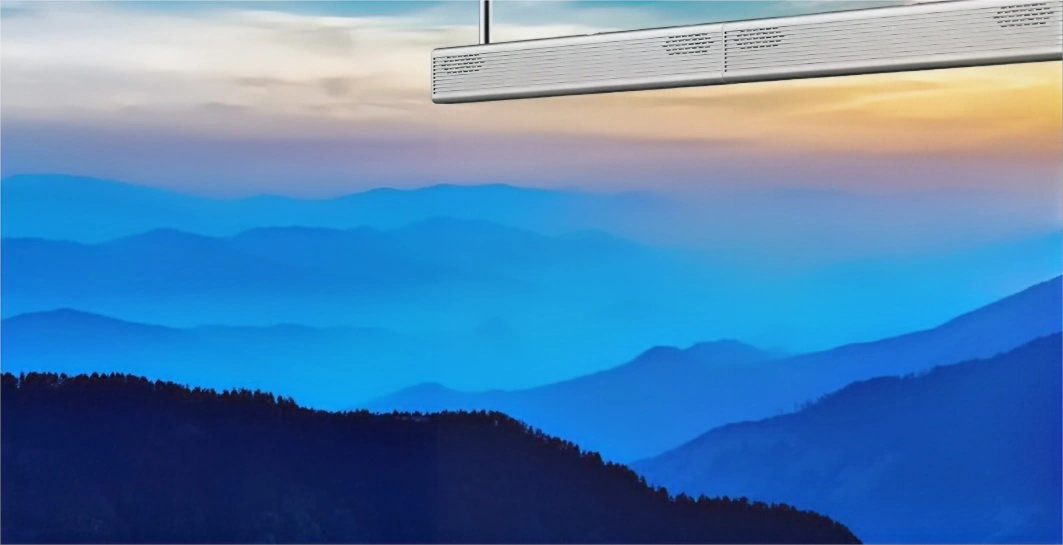

4.Standard hanging structure, easy installation;

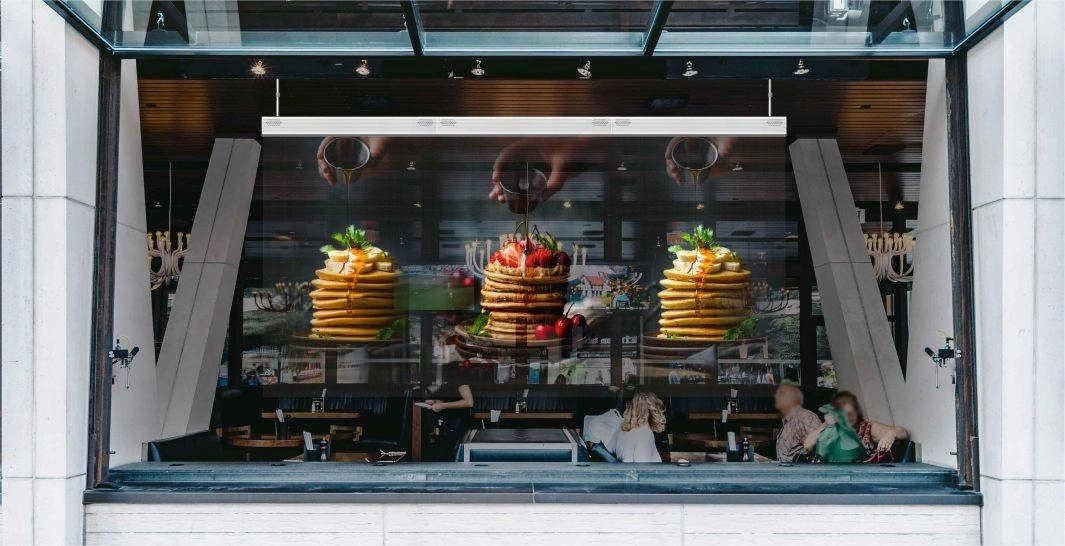

5.Bare-eye AR visual effect, eye-catching and attractive;
6.Free combined size, 55″, 70″, 100″, 135″;
6.High-resolution display quality, stable video and image, rich and delicate colors.
|

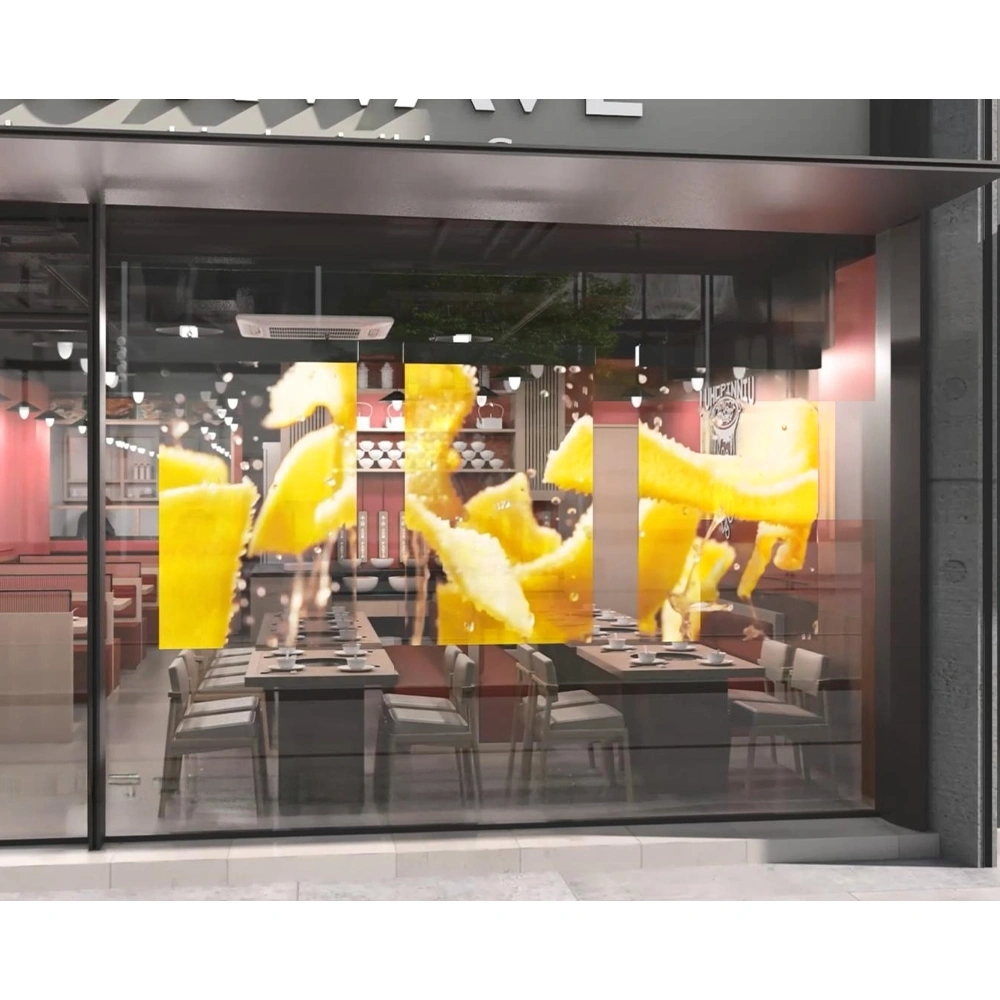

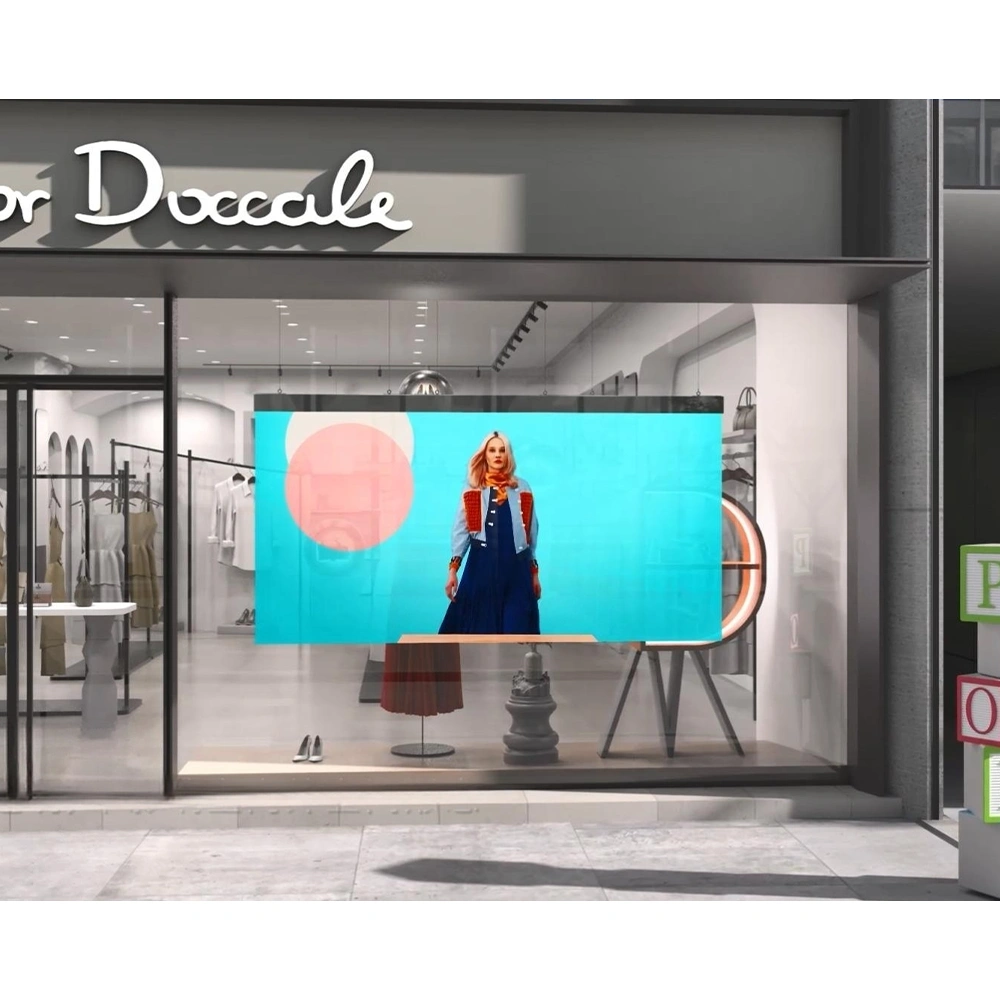

Holographic Invisible Screen Series Uni-P Unishine Borderless lnvisible Poster $creen, is ultra-thin and invisible. lt does not block light and view. lt is astandard product with easy installation, with built-in sending card and one power supply cable, it supports plug and play. lt can be used both in single piece and in combination, and the various sizes are 55", 70",100" and 130". lt can be widely applied in scenarios including retail, commercial shopping center, government, and company showroom. |
 |

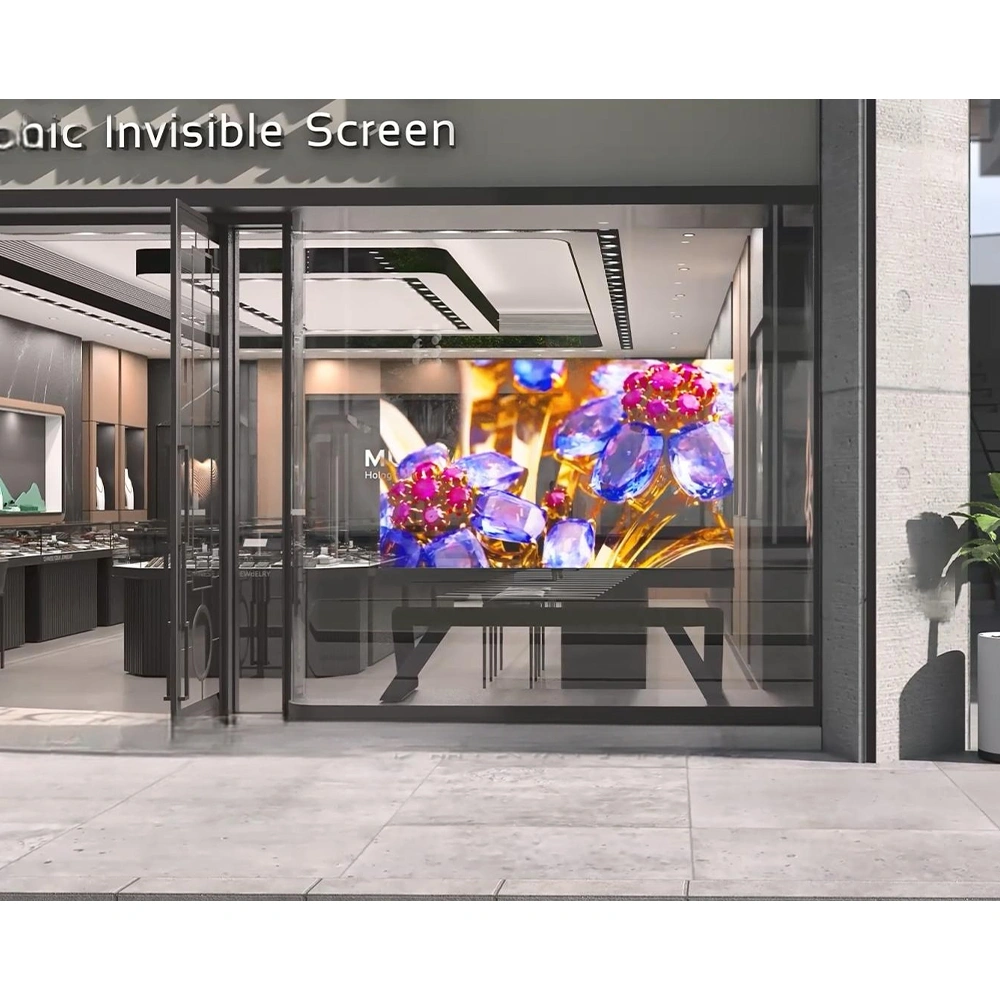

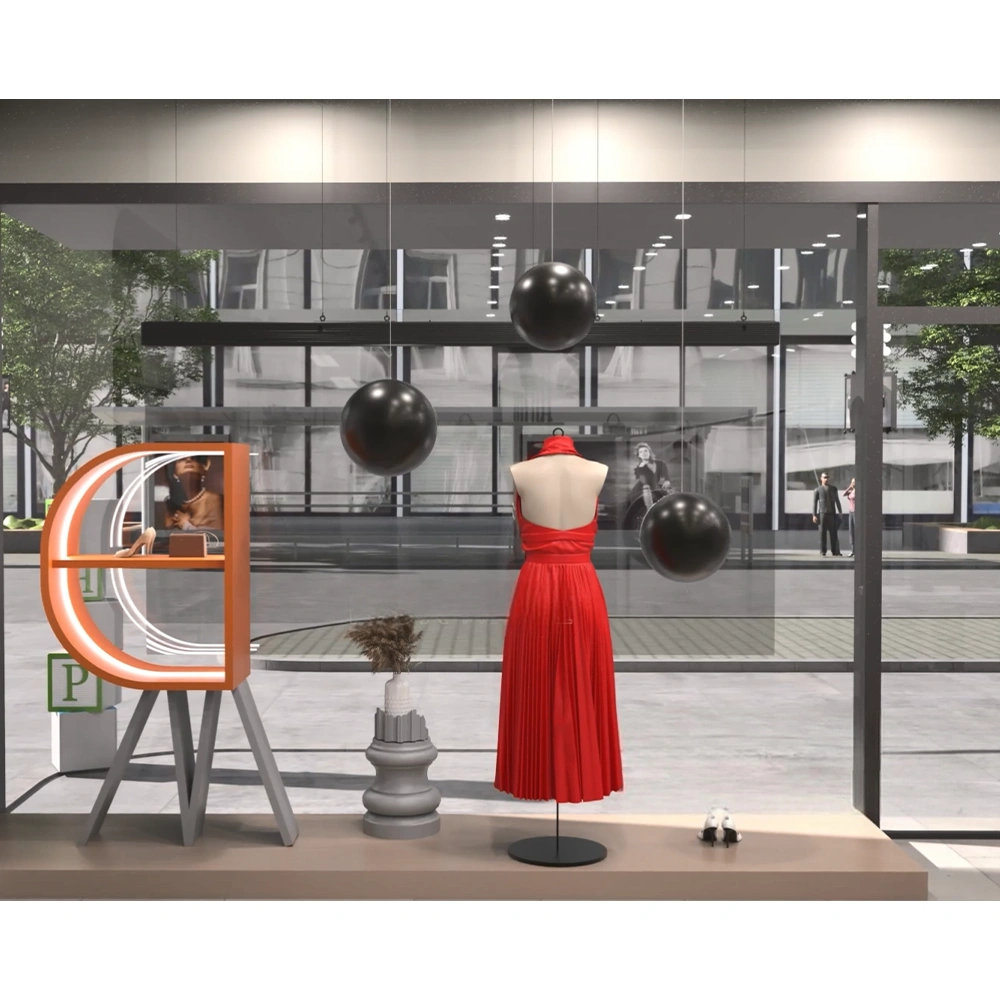

Application
 |
 |
 |
 |
 |
 |

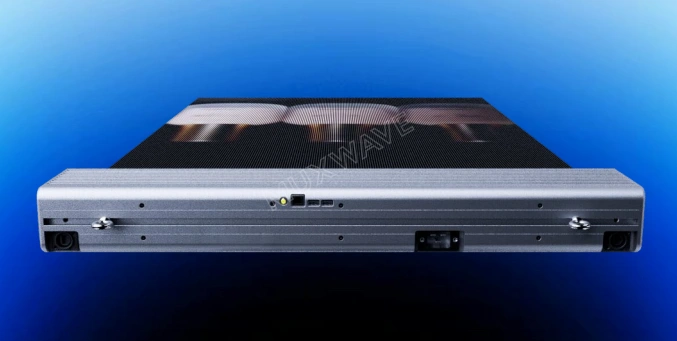

| Standard all-in-one machine, built-in sending card,only one power supply cable, plug in and play. | Whole screen transparent and invisible, it does not block any view and light. |
 |
 |

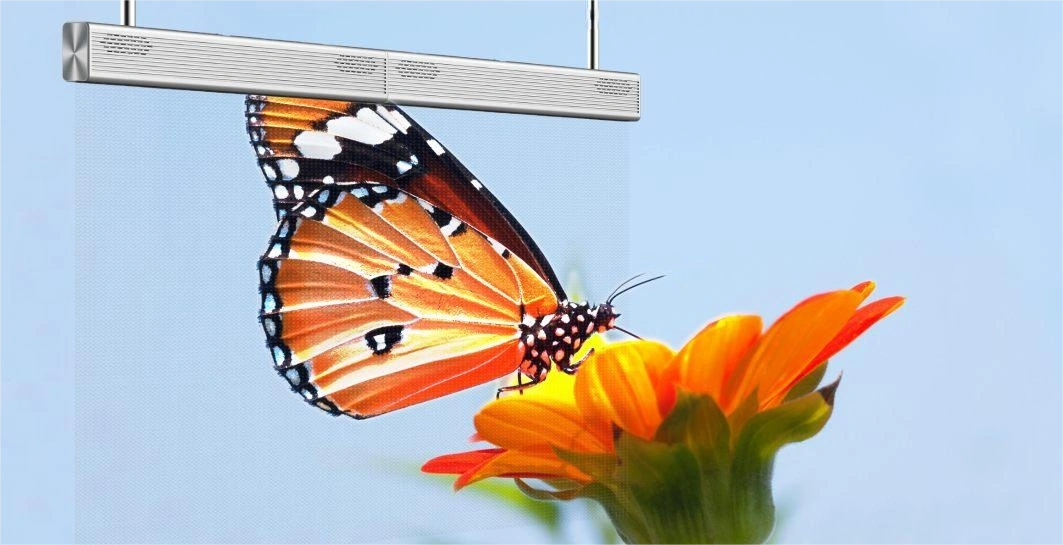

| Standard hanging structure, easy installation, widely applied in different kinds of installation environment. | Floating image, bare-eye AR visual effect, eye-catching and attractive. |
 |
 |

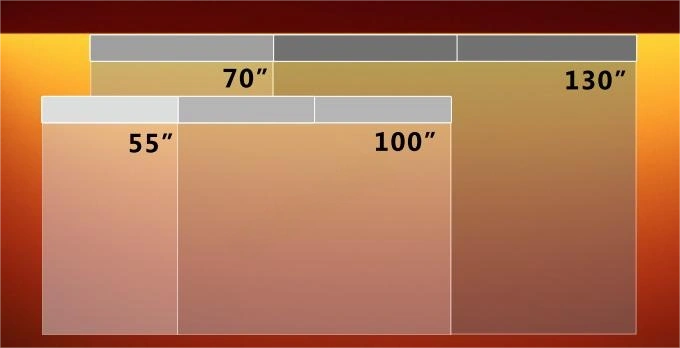

| Free combined size, 55", 70", 100", 135", to satisfy different display requirements. | High-resolution display quality, stable video and image, rich and delicate colors. |
|
Uni-P |
P2 |
P3 |
P6 |
|
Pixel pitch(mm) |
2.5mm |
3.91mm |
6.25mm |
|
Pixel density(dots/m²) |
160000 Dots/㎡ |
65536 Dots/㎡ |
25560 Dots/㎡ |
|
LED encapsulation |
SMD1515 |
SMD2121 |
SMD2121 |
|
Transparency Rate |
85% |
92% |
95% |
|
Resolution（dot） |
400x590 / 300x470 Dots |
256*376 / 192*300 Dots |
160*236 / 120*188 Dots |
|
Display Dimension(mm) |
1000*1475 / 750*1175 mm |
1000*1469 / 750*1172mm |
1000*1475 / 750*1175mm |
|

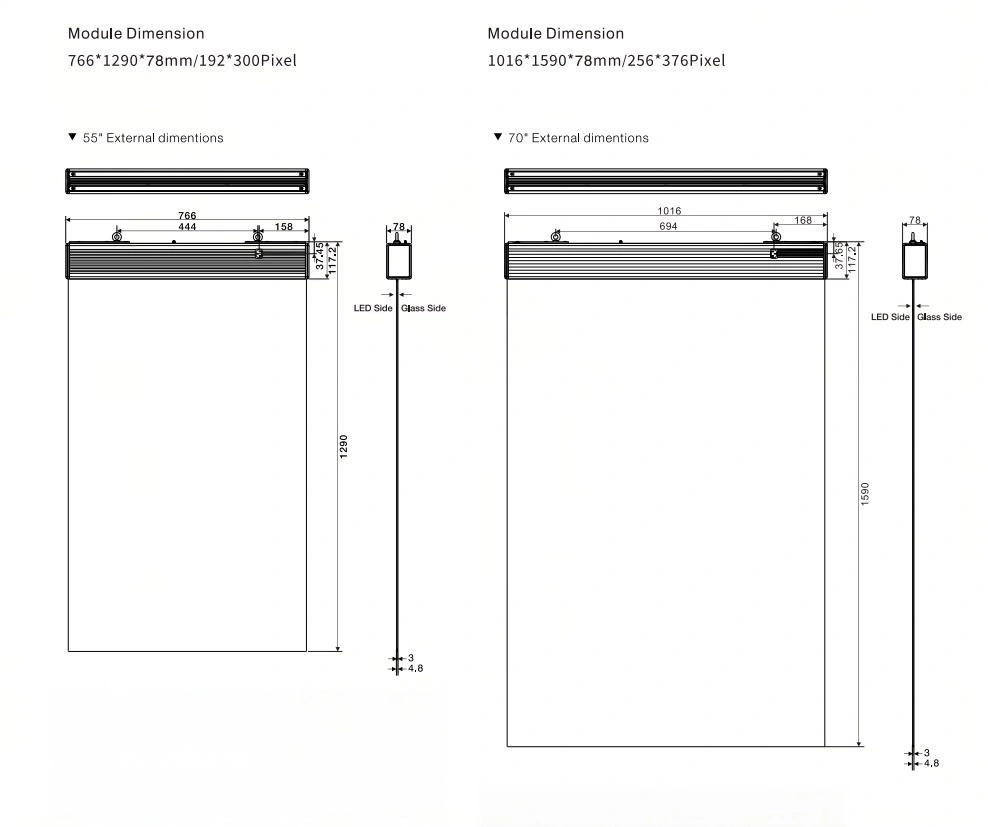

Profile Dimension(mm) |
1016*1592*78 / 766*1294*78 mm |
1016*1592*78 / 766*1291.5*78 |
1016*1592*78 / 766*1291.5*78 |
|
Screen Dimension(inch) |
70 / 55 inch |
70 / 55 inch |
70 / 55 inch |
|
Brightness(cd/㎡) |
≥1200 (Black Light) |
≥3000 (Black Light), ≥4500 (white Light) |
≥4500 (white Light) |
|
Max.consumption(W/m²) |
865W/㎡ |
865W/㎡ |
865W/㎡ |
|
Ave.consumption(W/m²) |
350W/㎡ |
350W/㎡ |
350W/㎡ |
|
Color temperature(K) |
3000-10000K |
3000-10000K |
3000-10000K |
|
Scanning Mode |
Static Driving (Single Pixel Single Control) |
Static Driving (Single Pixel Single Control) |
Static Driving (Single Pixel Single Control) |
|
Encapsulation Type |
Light Board & Driving Board Integrated |
Light Board & Driving Board Integrated |
Light Board & Driving Board Integrated |
|
View angle(H/V) |
H：160°；V：160° |
H：160°；V：160° |
H：160°；V：160° |
|
Input Voltage |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
|
Working Voltage |
DC 4.2V ± 0.2V |
DC 4.2V ± 0.2V |
DC 4.2V ± 0.2V |
|
Working temperature(℃) |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
|
Working Humidity |
Humidity: 20%-85%(Without Condensation) |
Humidity: 20%-85%(Without Condensation) |
Humidity: 20%-85%(Without Condensation) |
|
Protect degree(F/B) |
IP20 |
IP20 |
IP20 |
|
Installation Method |
Hanging Up |
Hanging Up |
Hanging Up |
|
Packing Way |
Pearl Cotton+Wooden case/Flight Case |
Pearl Cotton+Wooden case/Flight Case |
Pearl Cotton+Wooden case/Flight Case |
