Uni-G

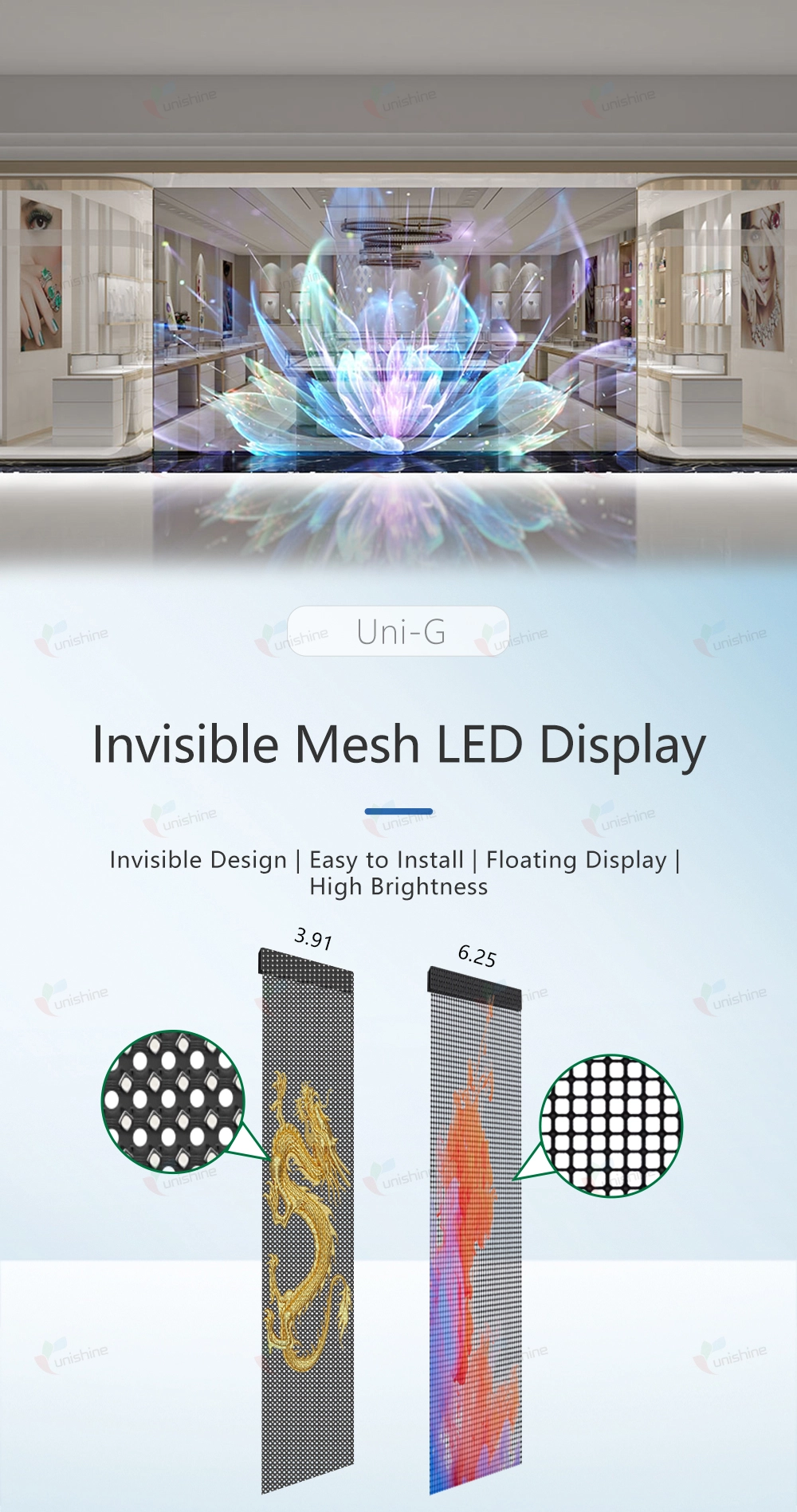

Invisible Mesh LED Display

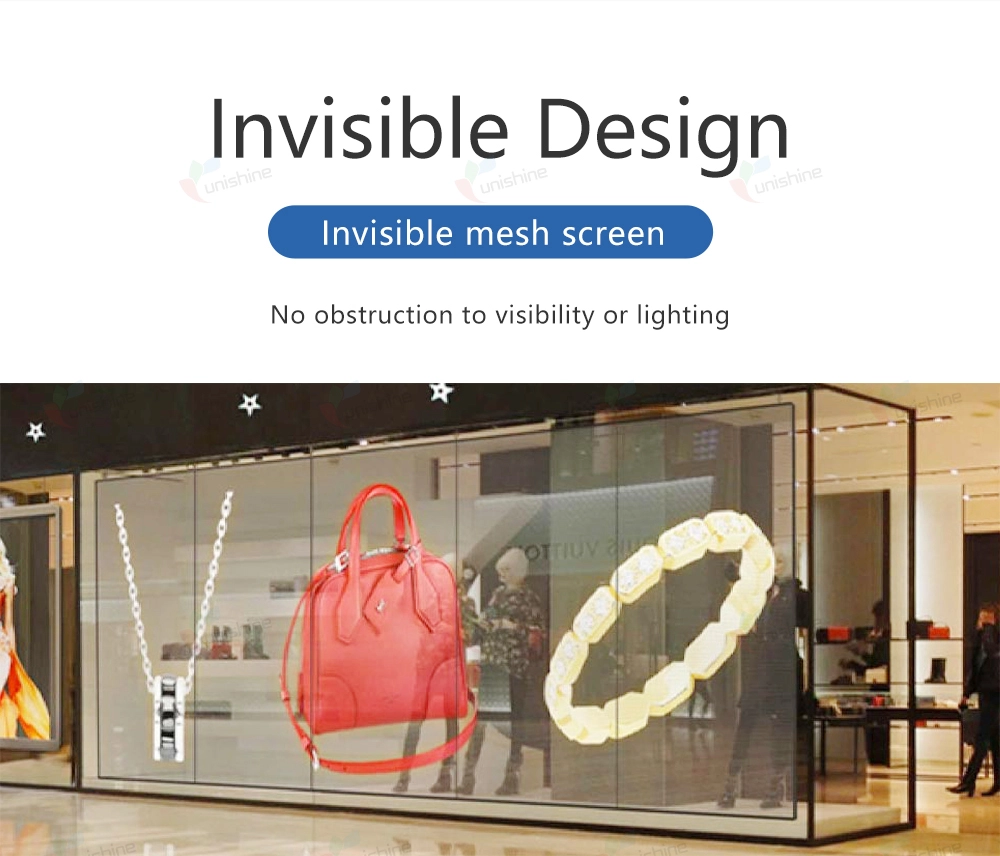

1.Invisible Design: Invisible mesh screen, no obstruction to visibility or lighting;
2.Easy to Install: Preserves original space structure, supporting hanging, embedded installations;
3.Tailor Match: Customizable screen size to seamlessly integrate with store window dimensions. Etc;

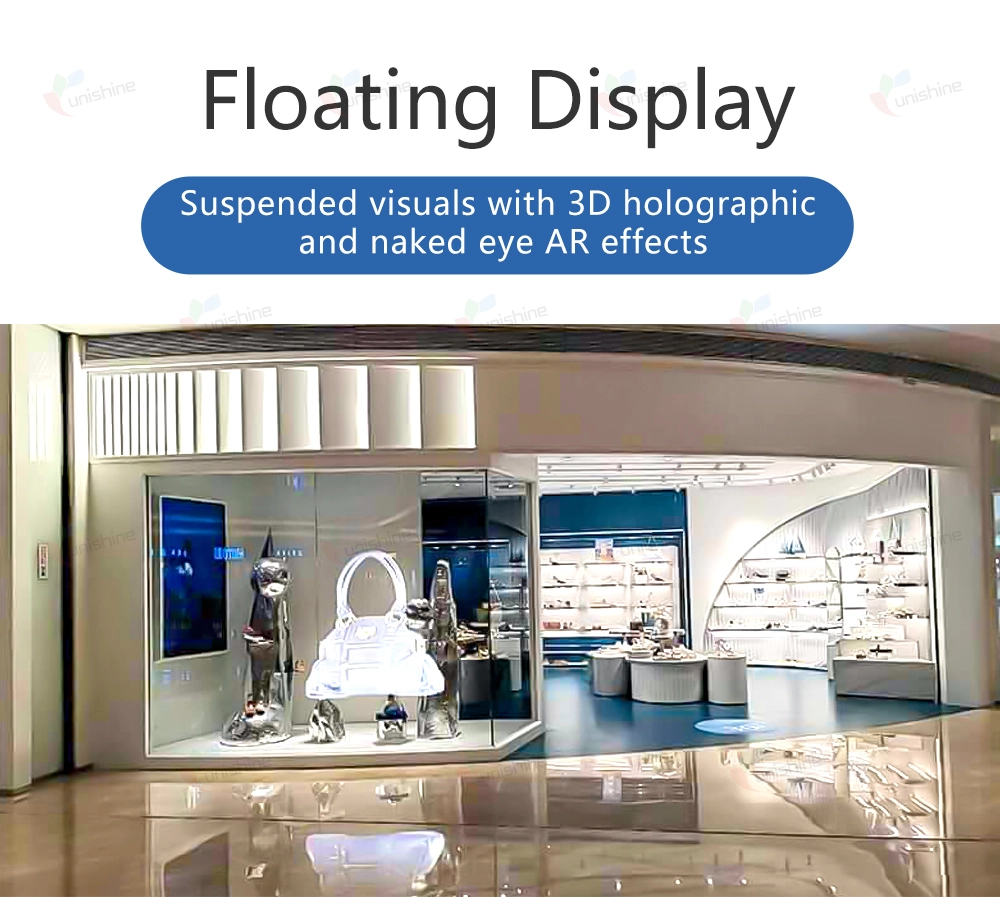

4.Floating Display: Suspended visuals with 3D holographic and naked eye AR effects;

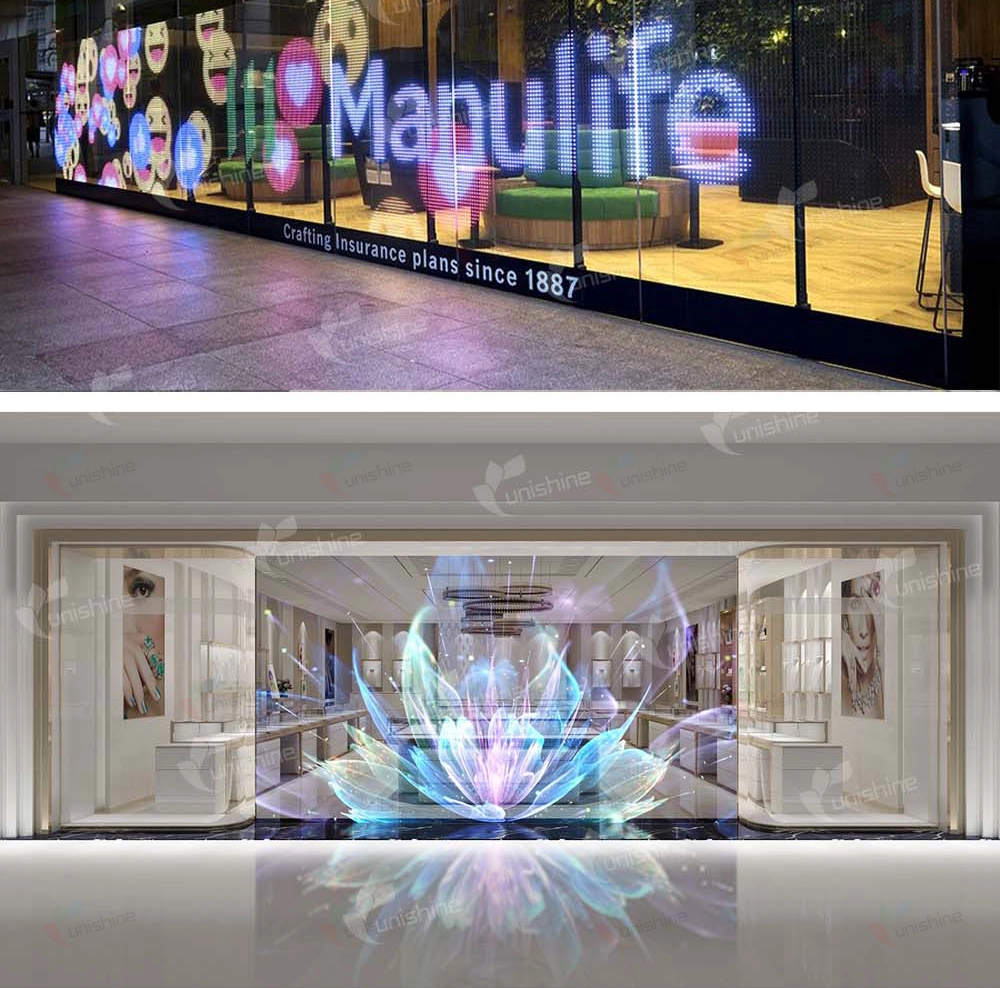

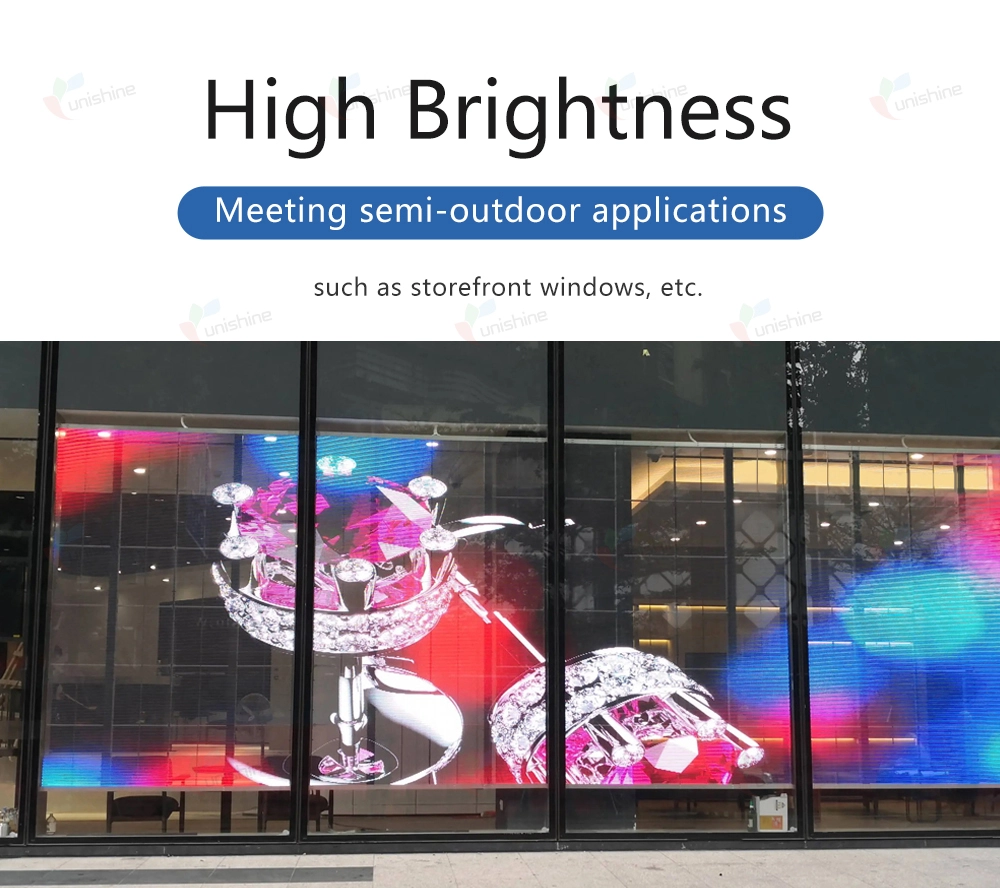

5.High Brightness: Meeting semi-outdoor applications, such as storefront windows, etc.
|
Uni-G |
|||||
|
Pixel pitch(mm) |
3.91 |
4.8 |
6.25 |
3.91 |
6.25 |
|
Resolution of module（dot） |
64*307 |
52*250 |
40*192 |
64*384 |
40*320 |
|

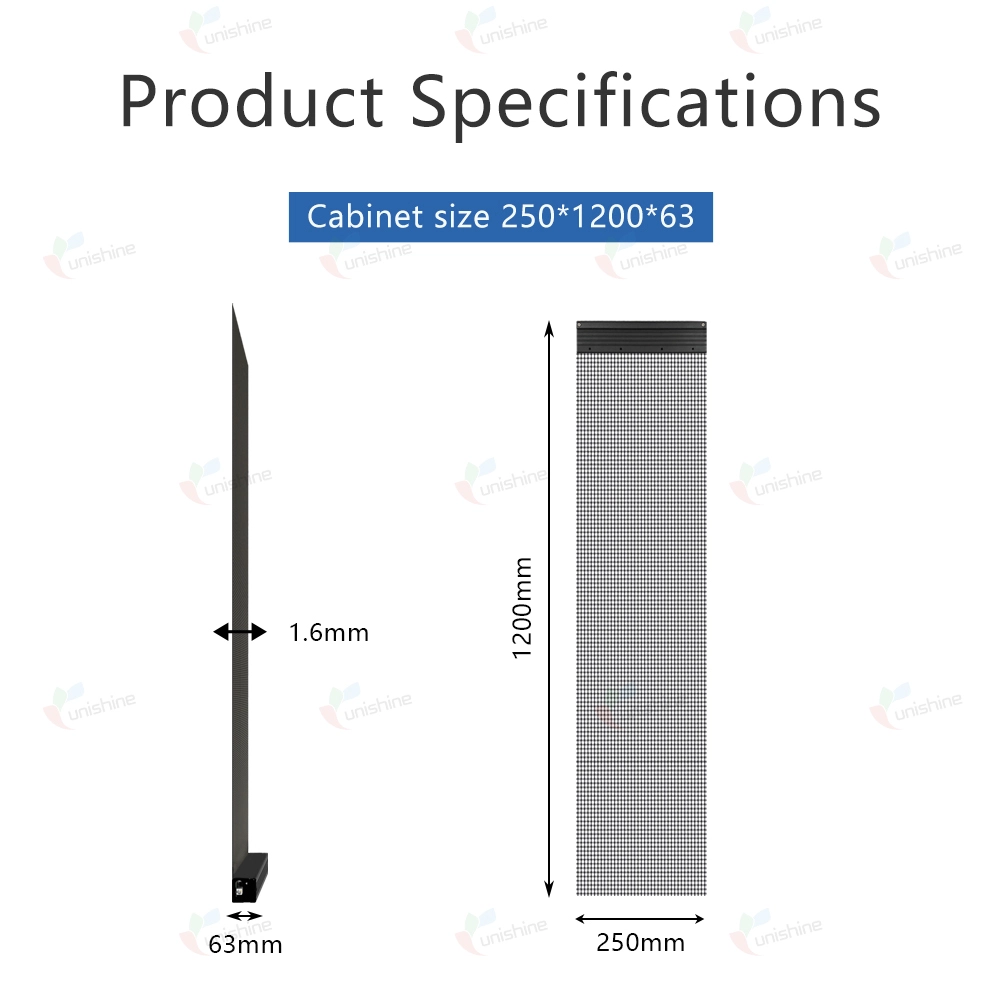

Module size(mm) |
250*1200 |
250*1200 |
250*1200 |
250*1500 |
250*2000 |
|
Pixel density(dots/m²) |
65536 |
43258 |
25600 |
65536 |
25600 |
|
LED encapsulation |
DH-C1717IBNR-LA |
DH-C1717IBANR-LA |
DH-C1717IBANR-LA |
DH-C1717IBANR-LA |
RF-H2SA22HS-A47-IC3-A |
|
Driving IC |
LS9001 |
LS9001 |
LS9001 |
LS9001 |
TA8028EP |
|
Material |
Aluminum |
Aluminium alloy |
Aluminium alloy |
Aluminum |
Aluminum |
|
Cabinet Weight(kg/pcs) |
5kg/pcs |
5kg/pcs |
5kg/pcs |
5.3kg/pcs |
2kg |
|
Working voltage(V) |
DC4.6 |
DC4.6 |
DC4.6 |
DC4.6 |
DC4.6 |
|
Max.consumption(W/m²) |
≤850 |
≤800 |
≤700 |
≤850 |
≤800 |
|
Ave.consumption(W/m²) |
≤300 |
≤300 |
≤250 |
≤300 |
≤250 |
|
Visual Transparency (%) |
≥80% |
≥58% |
≥90% |
≥90% |
≥90% |
|
Brightness(CD/m²) |
3500 |
≥3500 |
≥3500 |
≥3500 |
≥3500 |
|
Color temperature(K) |
6500-9000K |
6500-9000K |
6500-9000K |
6500-9000K |
6500-9000K |
|
View angle(H/V) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
|
Refresh rate(Hz) |
3840 |
3840 |
3840 |
3840 |
3840 |
|
Working temperature（℃） |
-20℃~+50℃ |
-20℃~+65℃ |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
|
Grey / scale（bit） |
13 |
16 |
13 |
16 |
16 |
|
Control System |
Colorlight |
Colorlight |
Colorlight |
Colorlight |
Novastar |
|
Protect degree(F/B) |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
|
Gross Weight(kg) |
15kg (Estimated data,8pcs /Case) |
|
Outer Package Size |
1500*350*300mm (Estimated data,8pcs /Case) |
|
Packing Material |
Carton+Pearl cotton +wooden pallet |
