Uni-F

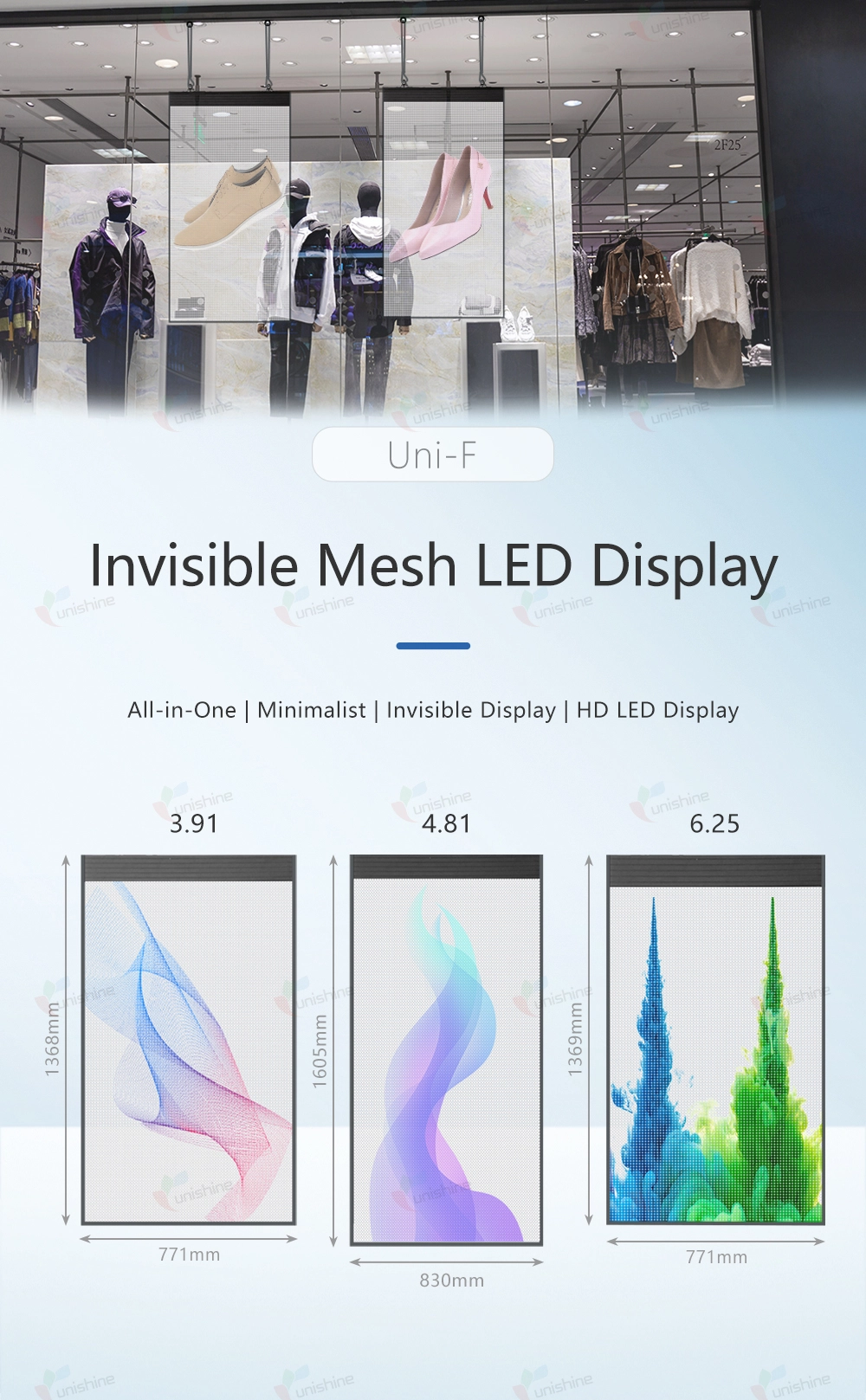

Invisible Mesh All-in-One LED Display

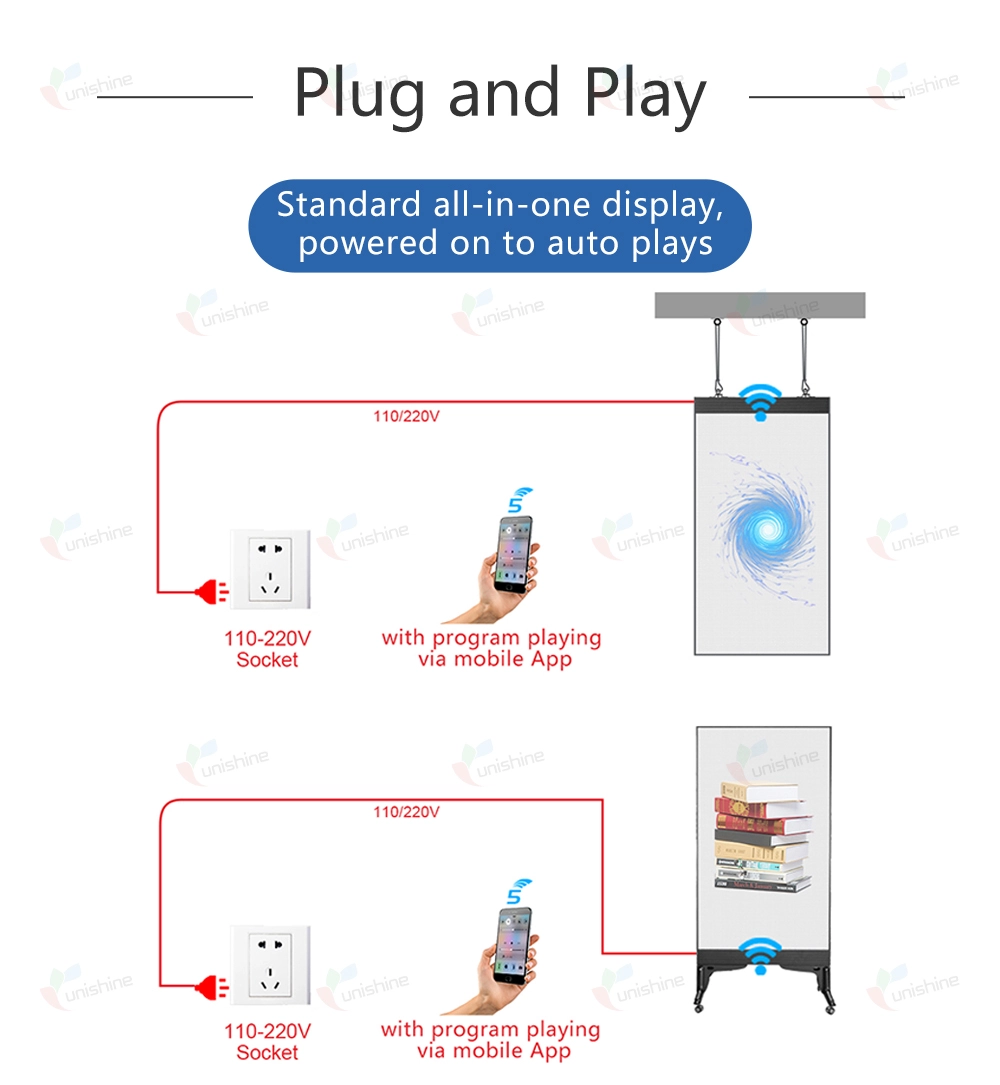

1.Plug and Play: Standard all-in-one display, powered on to auto plays, with program playing via mobile App;

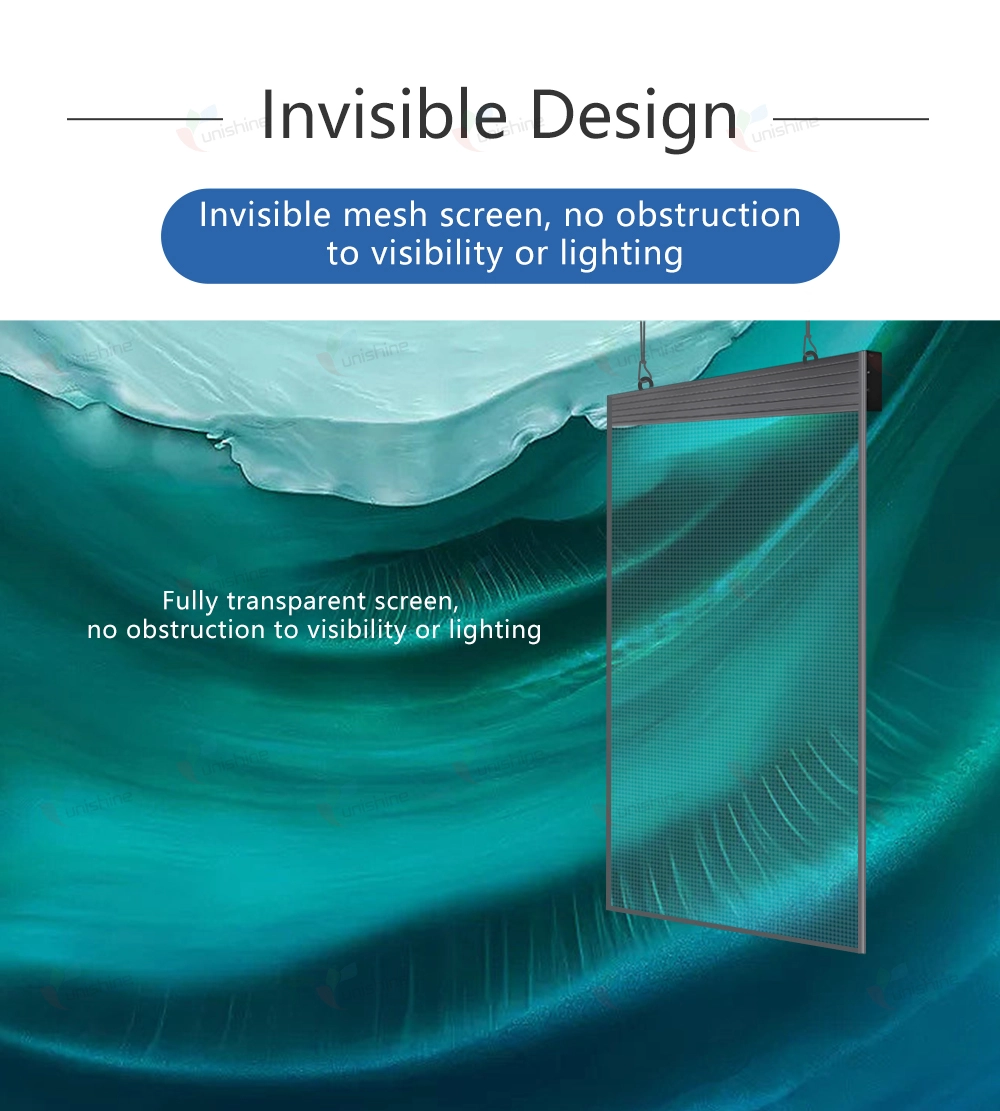

2.Invisible Design: Invisible mesh screen, no obstruction to visibility or lighting;

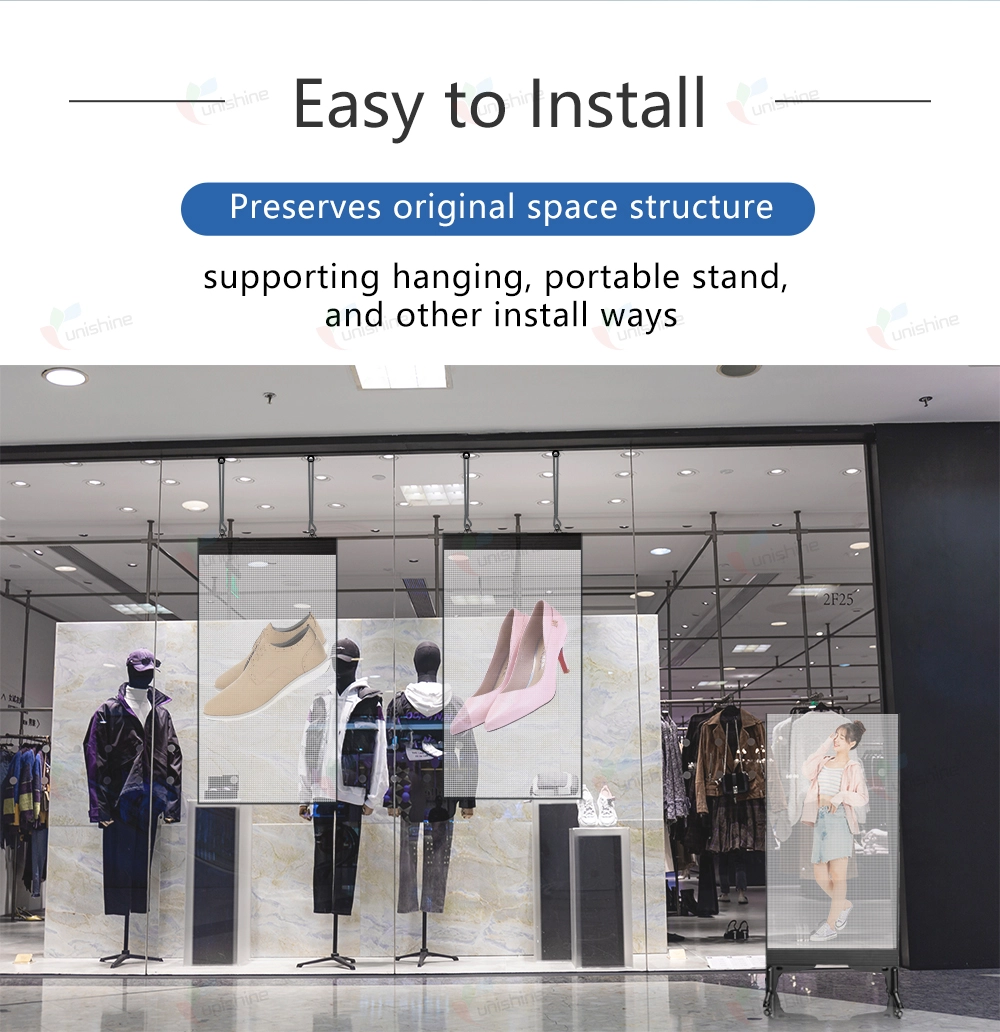

3.Easy to Install: Preserves original space structure, supporting hanging, portable stand, and other install ways;

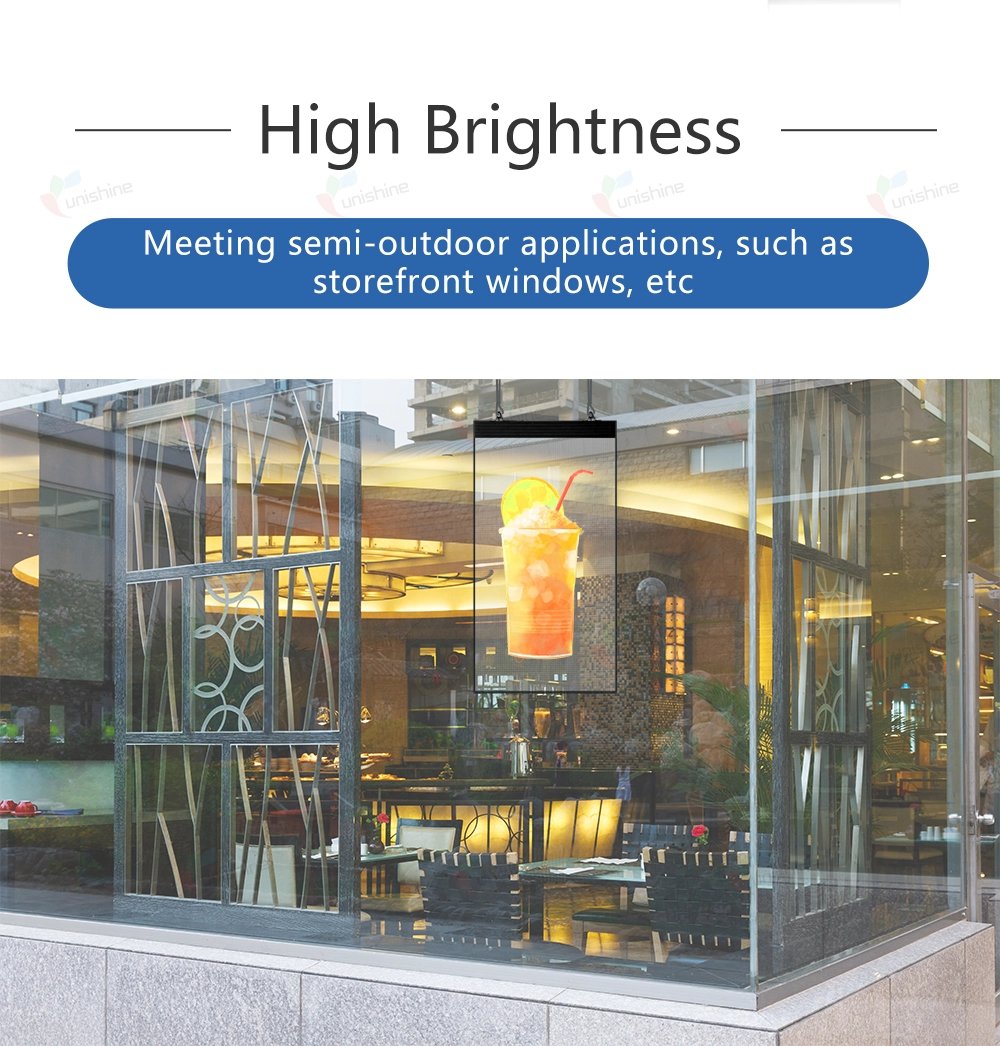

4.High Brightness: Meeting semi-outdoor applications, such as storefront windows, etc;

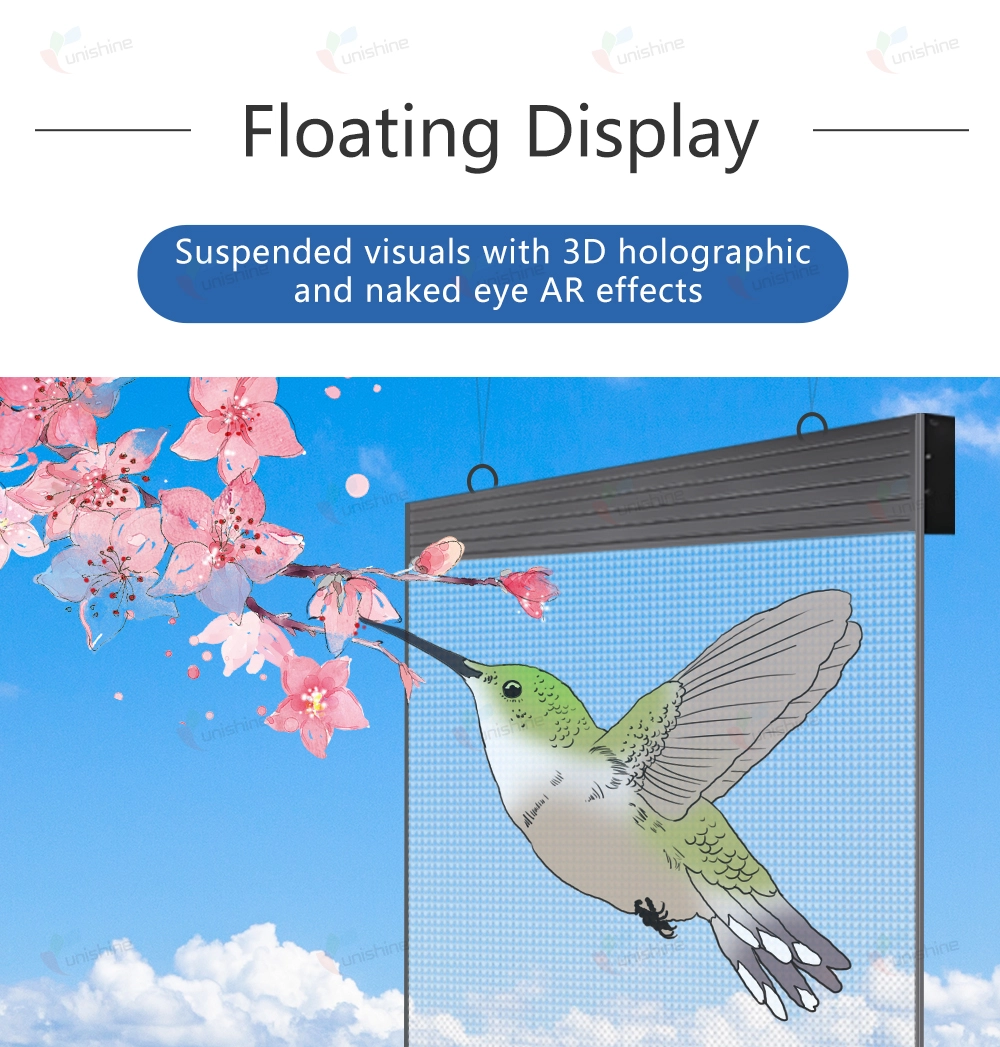

5.Floating Display: Suspended visuals with 3D holographic and naked eye AR effects.
|

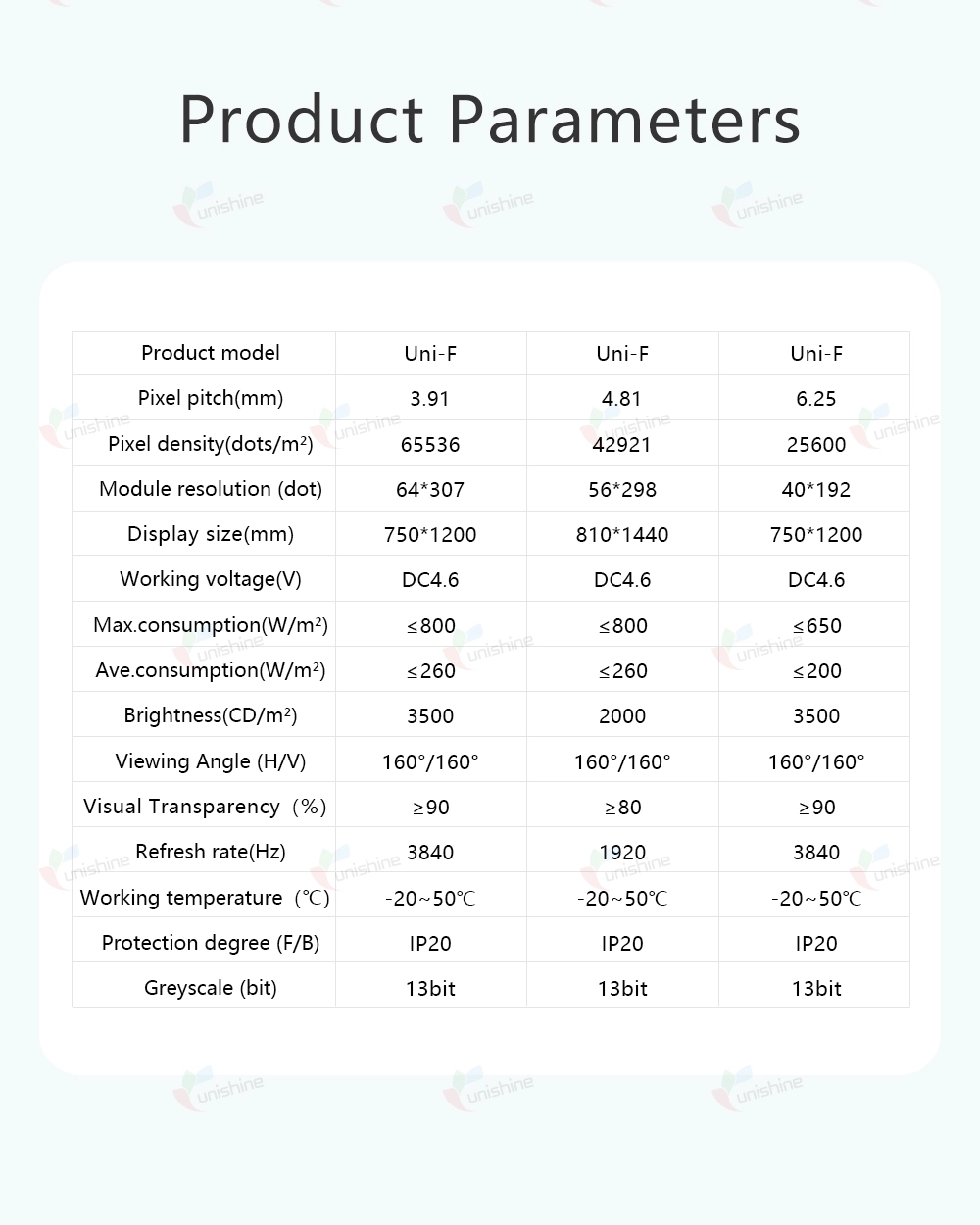

Uni-F |
|||
|
Pixel pitch(mm) |
3.91 |
4.8 |
6.25 |
|
Resolution of module（dot） |
64*307 |
56*298 |
40*192 |
|
Module size(mm) |
250*1200 |
270*1460 |
250*1200 |
|
Pixel density(dots/m²) |
65536 |
42921 |
25600 |
|
LED encapsulation |
DH-C1717IBNR-LA |
SY-ADW1415-T |
DH-C1717IBNR-LA |
|
Display size(mm) |
750*1200 |
810*1440 |
750*1200 |
|
Cabinet size(mm) |
771*1368 (with hanging bar) 771*1568 (with pulley) |
830*1605 (with hanging bar) 830*1805 (with pulley) |
771*1368 (with hanging bar) 771*1568 (with pulley) |
|
Cabinet Weight(kg/pcs) |
5.5kg/pcs |
8.5kg/pcs |
5kg/pcs |
|
Working voltage(V) |
DC4.6 |
DC4.6 |
DC4.6 |
|
Max.consumption(W/m²) |
≤800 |
≤800 |
≤650 |
|
Ave.consumption(W/m²) |
≤260 |
≤260 |
≤200 |
|
Visual Transparency (%) |
≥90% |
≥80% |
≥90% |
|
Brightness(CD/m²) |
3500 |
2000 |
3500 |
|
Color temperature(K) |
6500-9000K |
6500-9000K |
6500-9000K |
|
View angle(H/V) |
160°/160° |
160°/160° |
160°/160° |
|
Refresh rate(Hz) |
3840 |
1920~3840 |
3840 |
|
Working temperature（℃） |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
|
Grey / scale（bit） |
13 |
13 |
13 |
|
Protect degree(F/B) |
IP20 |
IP20 |
IP20 |
|
Gross Weight (kg) |
11.5kg (Estimated data,2PCS /Cas) |
|
Outer Package Size |
1380*126*790mm (Estimated data,2PCS/Case) |
|

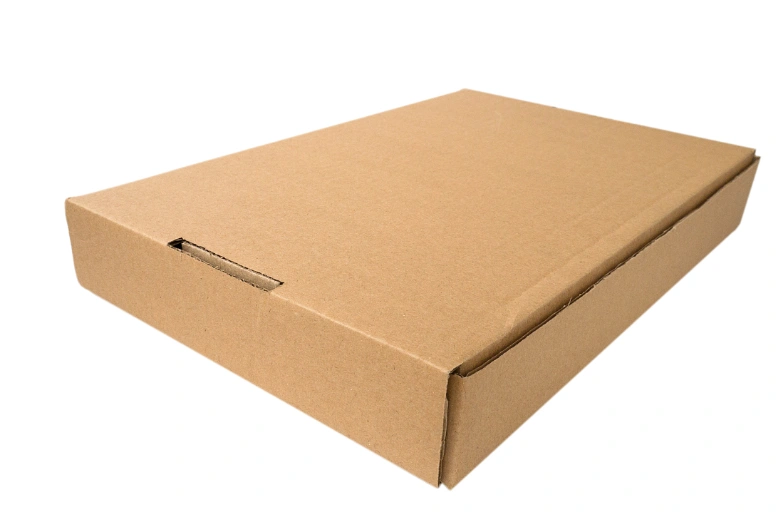

Packing Material |
Carton+Pearl cotton |
