Uni-A
Holographic Invisible LED Screen

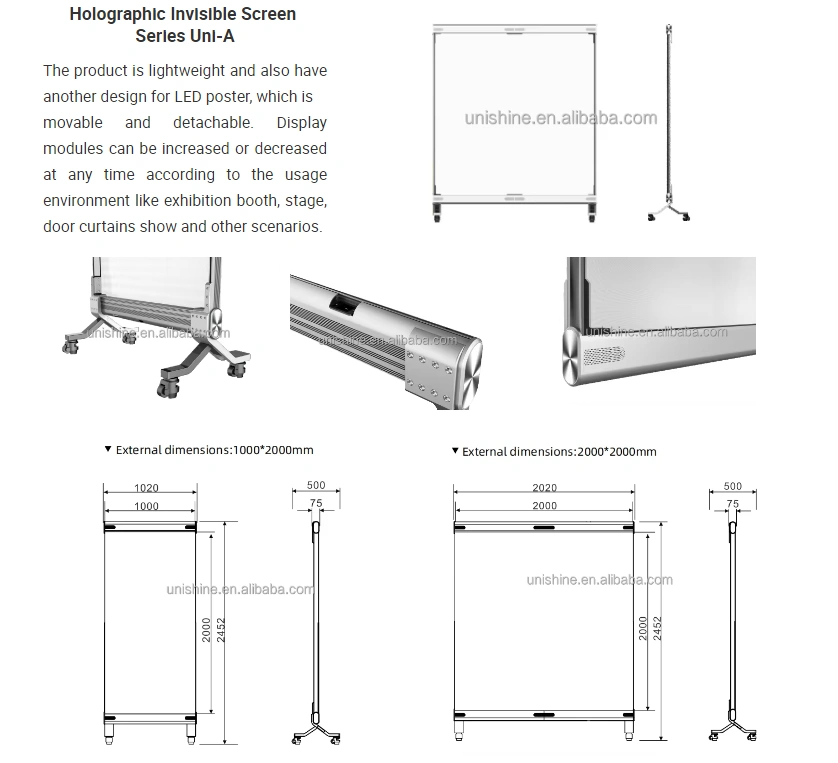

1.External dimensions: 1000*2000mm / 2000*2000mm
2.9000:1 high contrast;
3.High brightness 5000cd/m ²;
4.16bit gray scale with exquisite colors;
5.Light weight of 6kg/㎡;
6.The thickness of the screen is less than 2mm;
7.It can be directly attached to the front or back side of transparent glass without damaging the original structure of the building or affecting indoor lighting.
 |
 |
|

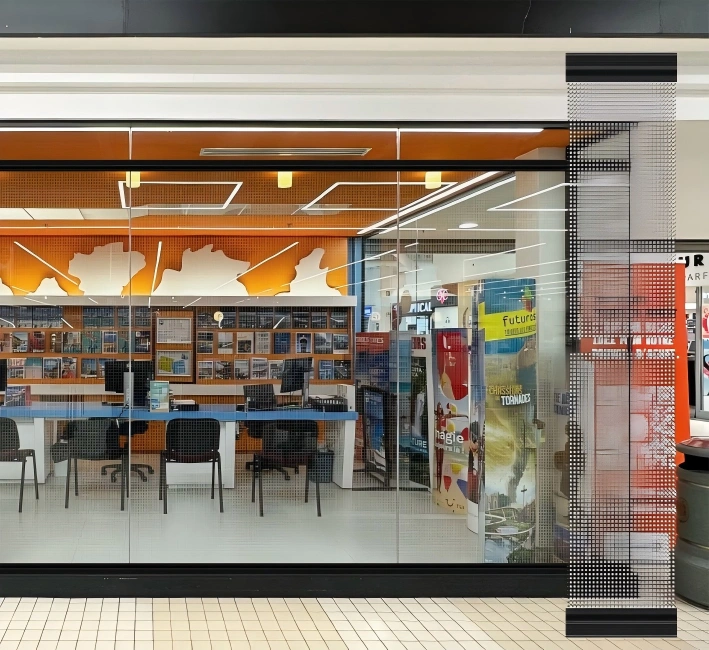

Transparent and invisible whole screen
The whole screen is transparent without frame;
it is seamlessly spliced in a large area;
the back side is invisible without floodlight.
|
Holographic 3D suspension images
Display effect of 3D holographic and
spatial suspension images.
|
 |
 |
|
Transparent and excellent image quality
Equally spaced pixel layout for high-definition
image quality; static scanning with combined
diver board for table images;
16bit gray scale with exquisite colors.
|
High brightness & high contrast
9,000:1 (high contrast),
5,000cd/m ² (high brightness),
dazzling and eye-catching.
|
 |
 |
|
Light weight of 6kg/㎡
With professional aesthetic design,
the display screen is lightweight and
beautiful and weighs only 6kg/㎡.
|
As thin as 1.8mm
The thickness of the screen is less than 2mm,
and it is seamlessly attached on a curved
surface to show an integral whole
on the transparent glass.
|
 |
 |
|
Flexible
Standard module can be bent andskillful
applications. It is the best partner of
curved glass and irregular screens.
|

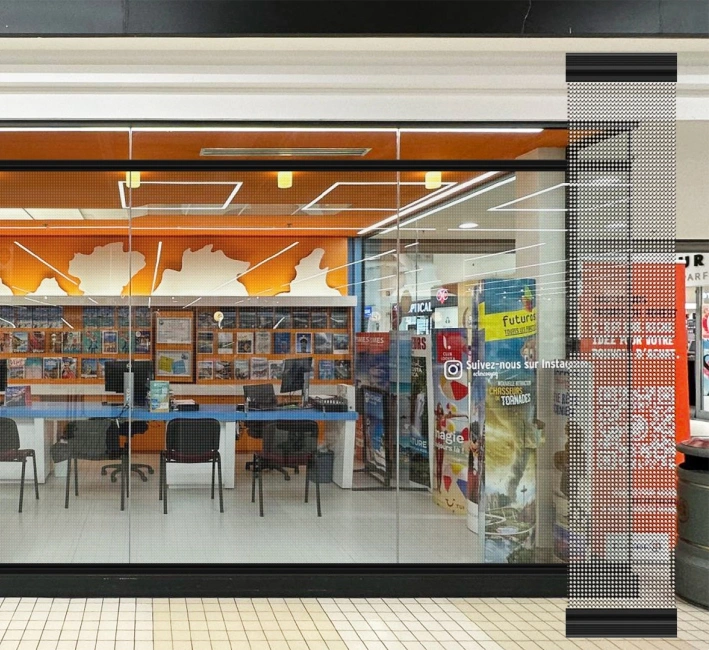

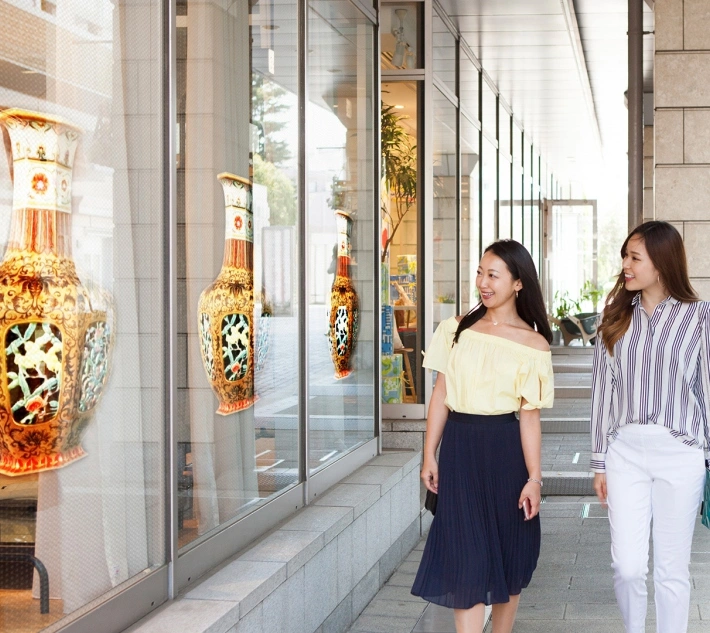

Minimal installation and maintenance
The product is modular and can be directly
attached to the front or back side of transparent
glass without damaging the original structure
of the building or affecting indoor lighting.
|
|
Uni-A |
Uni-A3-2 |
Uni-A3-4 |
|
Pixel pitch(mm) |
3.91mm |
3.91mm |
|
Pixel density(dots/m²) |
65536 Dots/㎡ |
65536 Dots/㎡ |
|
Transparency Rate |
80% |
80% |
|
Resolution（dot） |
256*512 Dots |
512*512 Dots |
|
Display Dimension(mm) |
1000*2000 mm |
2000*2000 mm |
|
Profile Dimension(mm) |
1021*2230*75 / 1021*2452*500 mm |
2021*2230*75 / 2021*2452*500 mm |
|
Frame Material |
Aviation Aluminum Alloy |
Aviation Aluminum Alloy |
|
Weight(Kg/set) |
40kg |
40kg |
|
Brightness(cd/㎡) |
≥3000 |
≥3000 |
|
Max.consumption(W/m²) |
1000W/㎡ |
1000W/㎡ |
|
Ave.consumption(W/m²) |
375W/㎡ |
375W/㎡ |
|
Scanning Mode |
Static Driving (Single Pixel Single Control) |
Static Driving (Single Pixel Single Control) |
|
Encapsulation Type |
Light Board & Driving Board Integrated |
Light Board & Driving Board Integrated |
|
View angle(H/V) |
H：160°；V：160° |
H：160°；V：160° |
|
Input Voltage |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
|
Working Voltage |
DC 4.2V ± 0.2V |
DC 4.2V ± 0.2V |
|
Control System |
Colorlight / Novastar |
Colorlight / Novastar |
|
Working temperature(℃) |
-20℃~+50℃ |
-20℃~+50℃ |
|
Working Humidity |
Humidity: 20%-85%(Without Condensation) |
Humidity: 20%-85%(Without Condensation) |
|
Protect degree(F/B) |
IP20 |
IP20 |
|
Packing Way |
Pearl Cotton+Wooden case/Flight Case |
Pearl Cotton+Wooden case/Flight Case |
