U-TFP

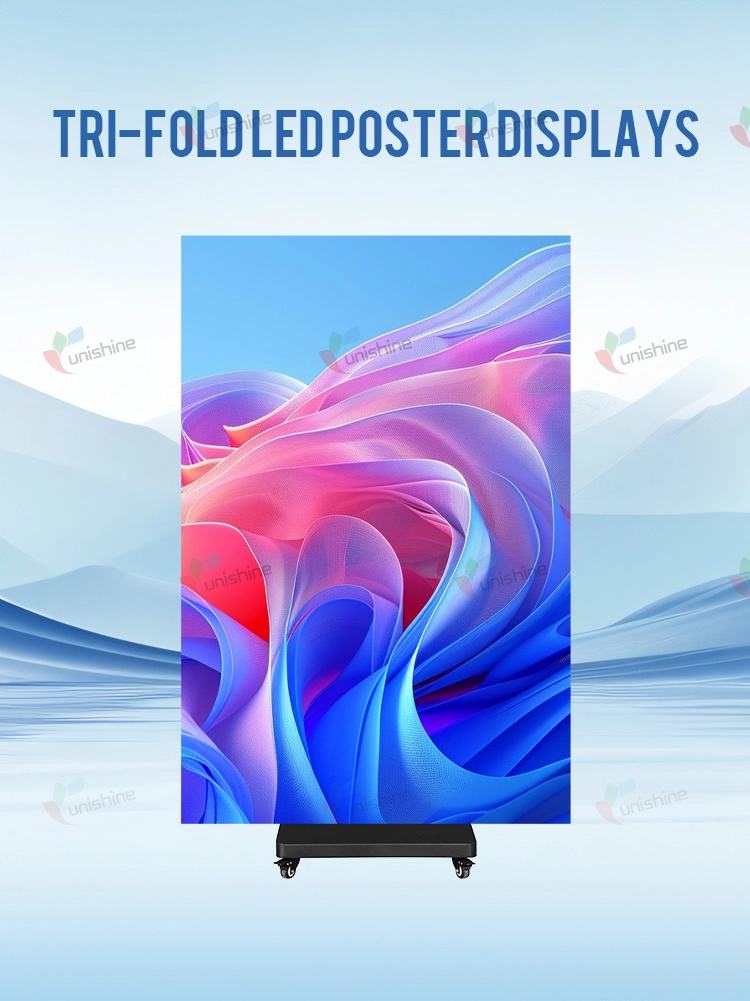

Trifold Splicing Advertising Poster LED Display
1.Inovative folding design, spave-saving;
2.GOB protection tech, durable and low maintenance;

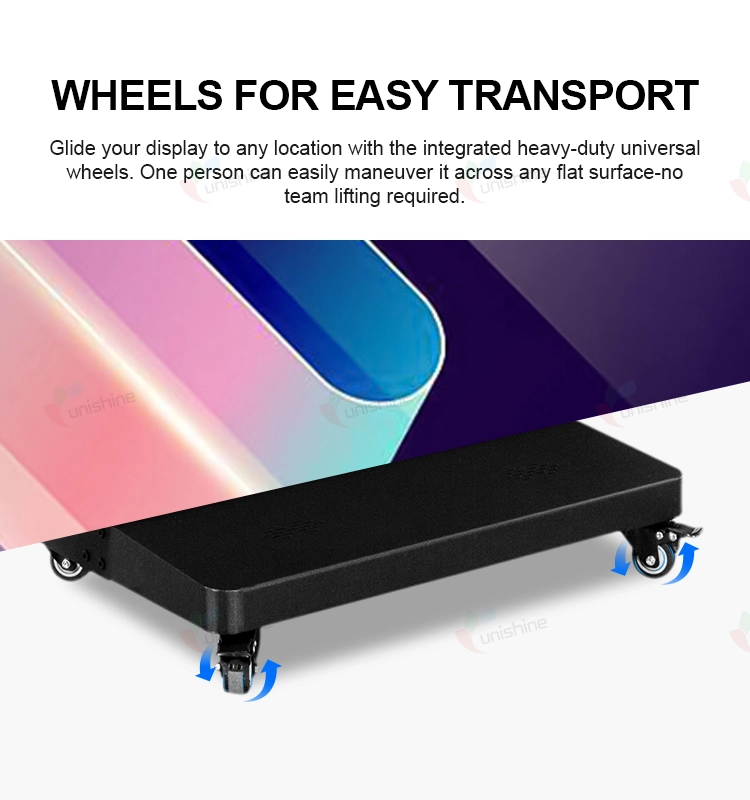

3.One person can easily maneuver lt across any flat surface;

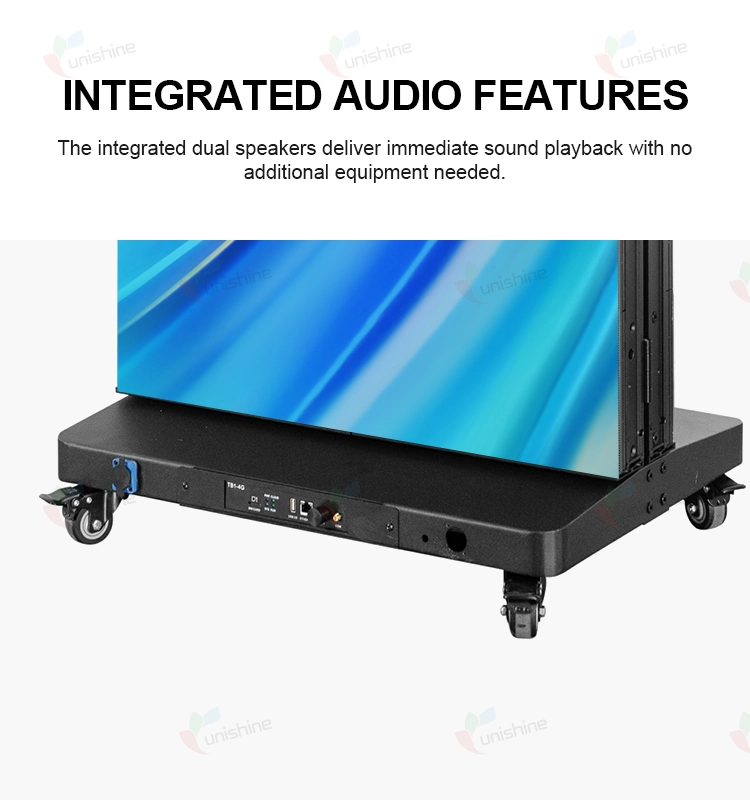

4.Intearated dual speakers deliver immediate sound playback;
5.Strong compatibility, support APP, USB, WiFi, Network cable or 4G;

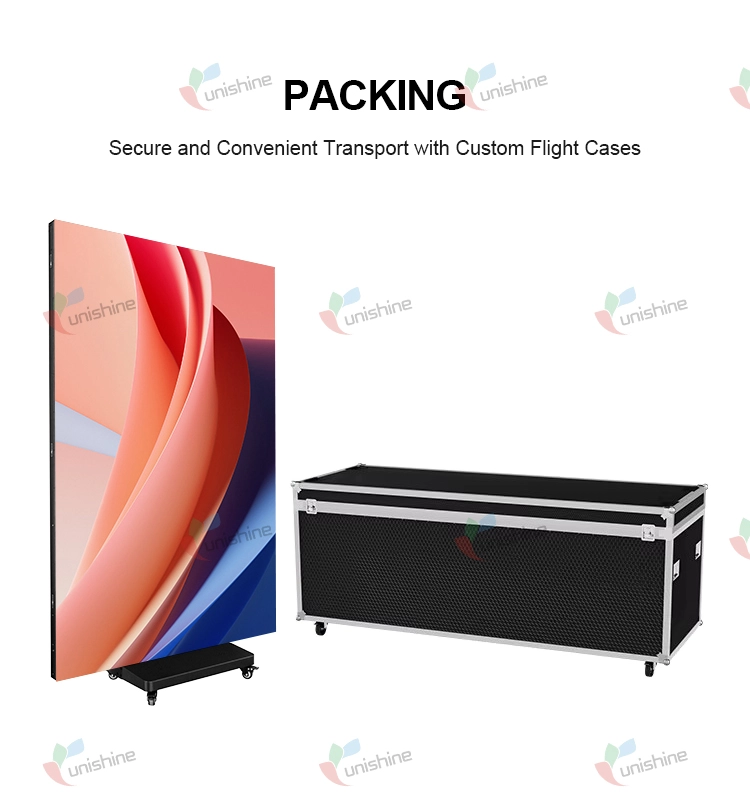

6.Secure and Convenient Transport with Custom Fliaht Cases.
|
U-TFP |
|||
|
Pixel pitch(mm) |
1.53 |
1.86 |
2.5 |
|
Pixel density(dots/m²) |
1038336 |
710016 |
393216 |
|
LED encapsulation |
SMD1212 |
SMD1515 |
SMD2020 |
|
Driving method |
1/52 |
1/43 |
1/64 |
|
Resolution of module（dot） |
208*104 |
172*86 |
128*64 |
|
Module size(mm) |
320*160 |
320*160 |
320*160 |
|
Display Area(mm) |
1280*1920 |
1280*1920 |
1280*1920 |
|
OverallArea(mm) |
1280*1930*55 |
1280*1930*55 |
1280*1930*55 |
|
Max.consumption(W/m²) |
≤500 |
≤500 |
≤500 |
|
Ave.consumption(W/m²) |
≤150 |
≤150 |
≤150 |
|
Brightness(CD/m²) |
600 |
500 |
500 |
|
View angle(H/V) |
140°/110° |
140°/110° |
140°/110° |
|
Refresh rate(Hz) |
3840 |
3840 |
3840 |
|
Working temperature（℃） |
-20~60℃ |
-20~60℃ |
-20~60℃ |
|
Protect degree(F/B) |
IP40 |
IP40 |
IP40 |
|
Grey / scale（bit） |
≥14 |
≥14 |
≥14 |
|
Material |
Aluminum |
Aluminum |
Aluminum |
