U-Taxi-Rear

P6x2.92 COB 3in1 Rear Window

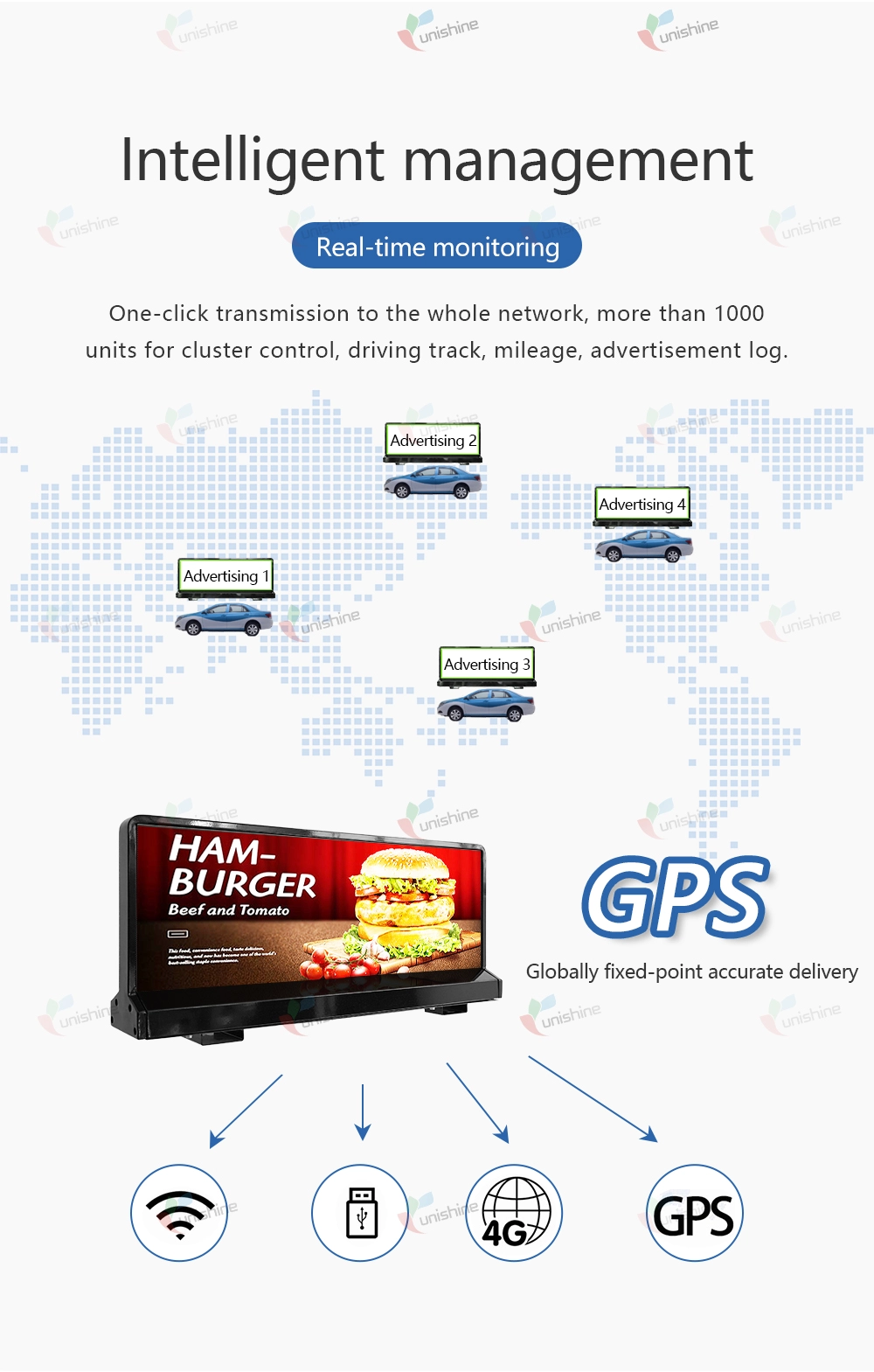

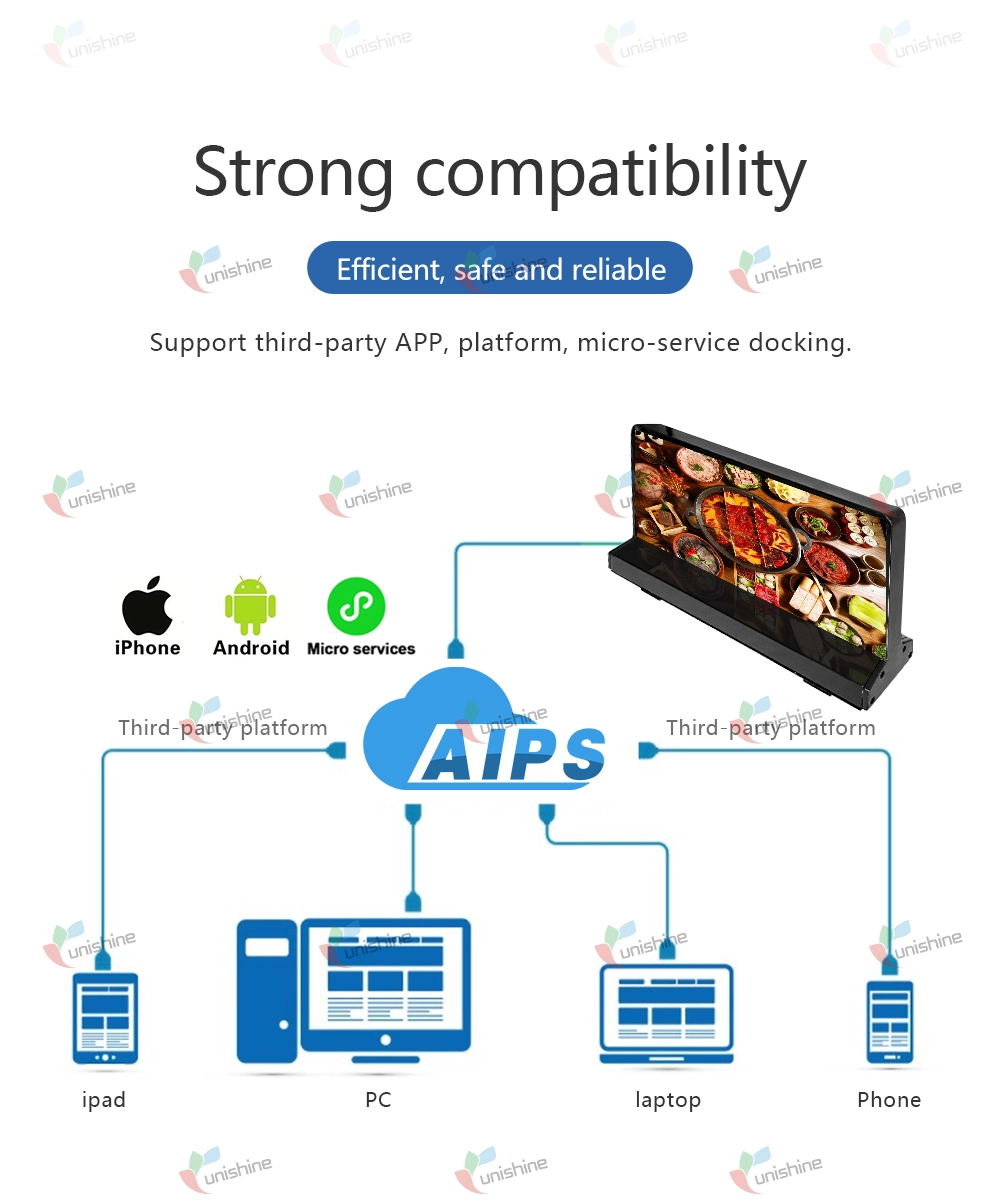

1.COB integrated encapsulation transparent display panel + mobile phone 4G control system play card + GPS positioning + WIFI function, easy to operate and play;
2.Advertising brightness can be adjusted according to the intensity of the light, more energy-efficient, slower Leds attenuation, and longer life span;
3.The light transmittance at the hollow of the transparent display panel reaches 52%, and the addition of the reversing screen function does not affect the reversing vision of the driver;

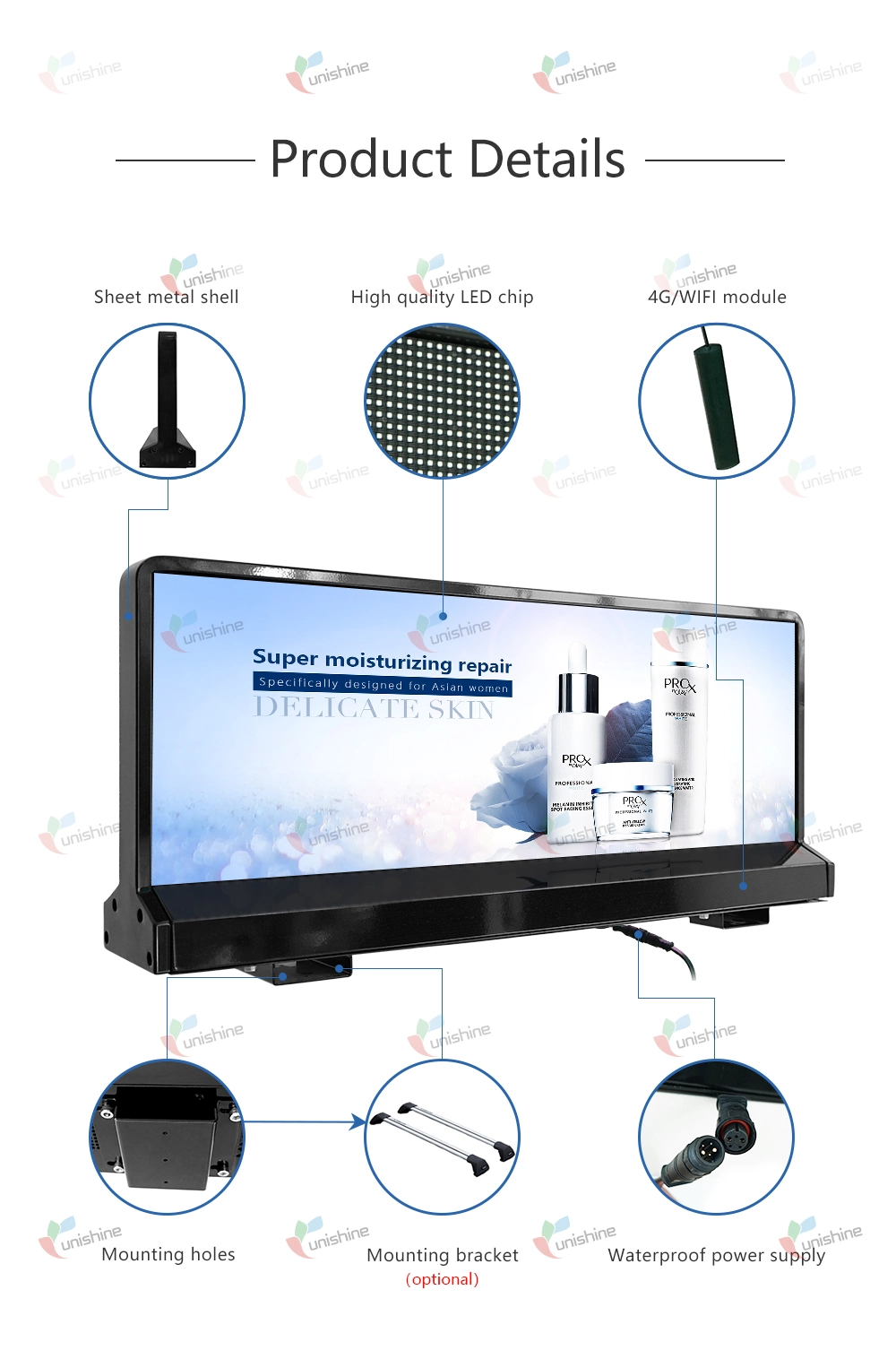

4.The flame-retardant semi-PU composite fabric protects HUB boards, control cards, 4G cards, etc., plus a soft bag that has better bending ability during mounting;
5.Weight of the screen is less than 1.5kg, and it can be installed quickly and without damaging the glass or bracket. The screen body and the flexible deformation two-dimensional bending fit the mounting surface;
6.Can play graphic advertisements, subtitles, videos, lunar calendar, dial, timing, temperature, humidity, announcements, weather forecasts, etc..

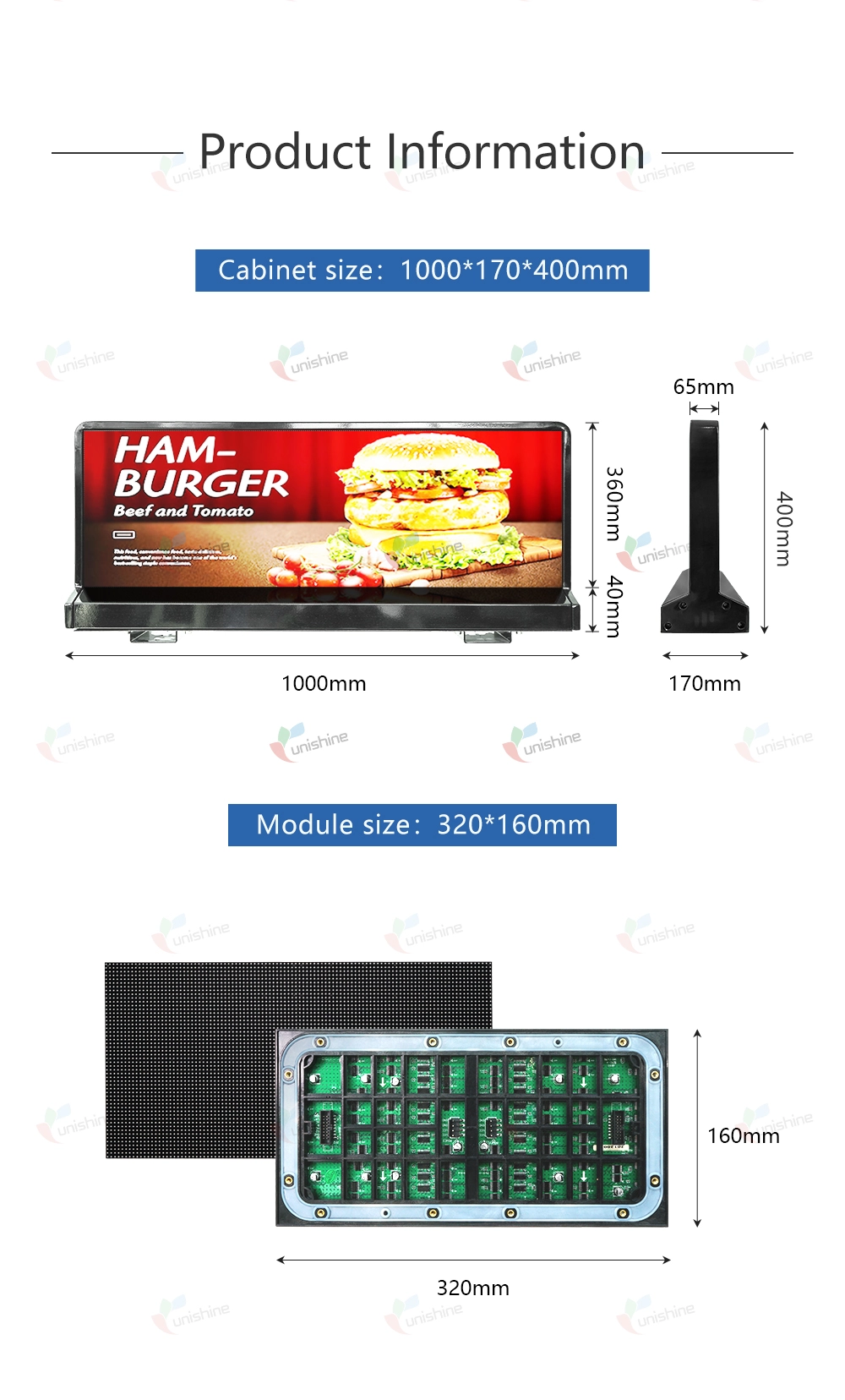

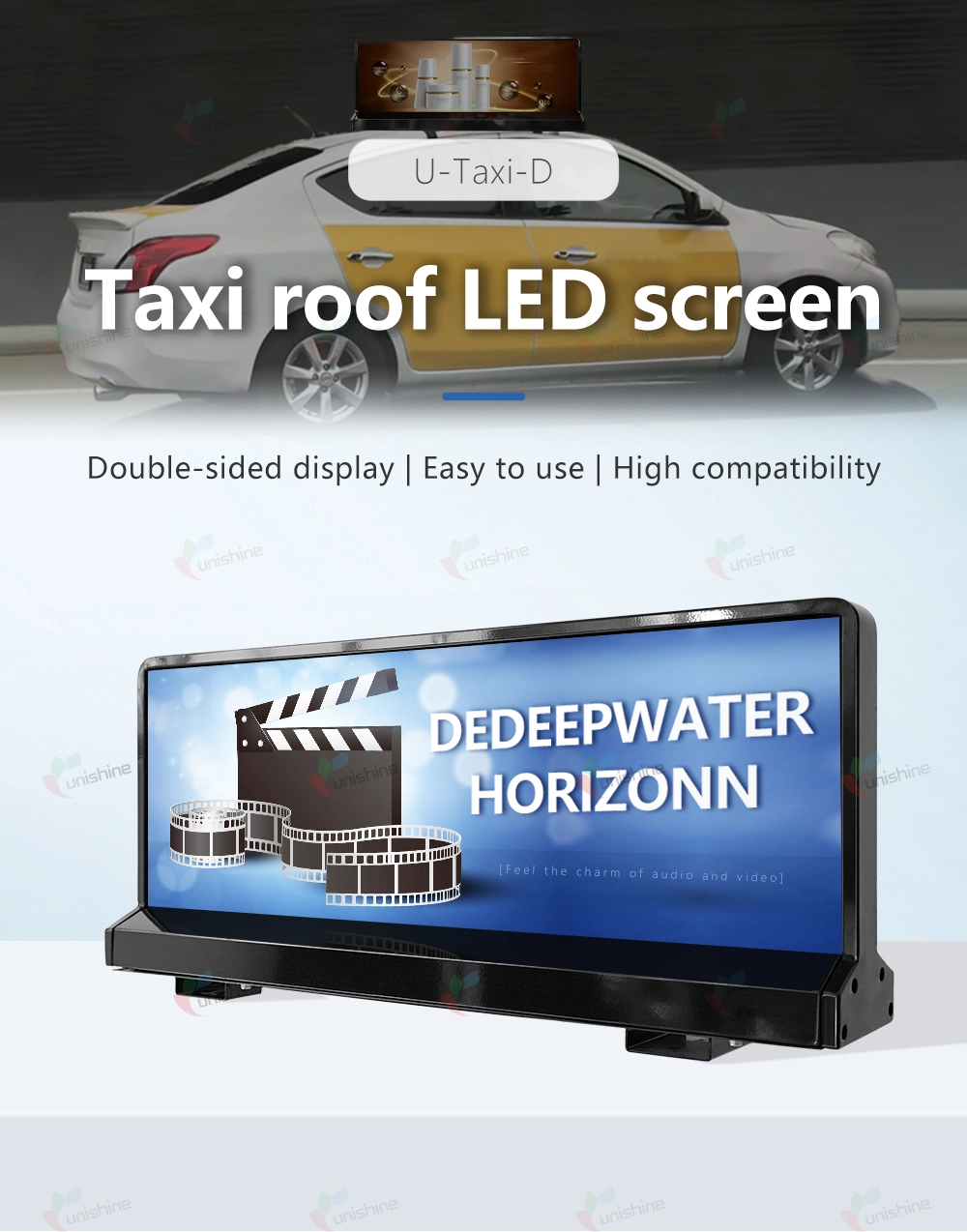

Taxi Top LED Display (1) Taxi Top LED Display (2) Taxi Top LED Display (3) Taxi Top LED Display (4) Taxi Top LED Display (5) Taxi Top LED Display (6) Taxi Top LED Display (7) Taxi Top LED Display (8) Taxi Top LED Display (9) Taxi Top LED Display (10) Taxi Top LED Display (11) Taxi Top LED Display (12) Taxi Top LED Display (13)

U-Taxi Rear Window



Pixel pitch(mm)

6X2.92mm

Pixel density(dots/m²)

57142 Dots/㎡

LED encapsulation

COB 3 in 1

Driving method

1/8S

Resolution of module(dot)

15*96 Dots

Module size(mm)

90*280*2mm

Module consumption(W)

12.5W

Working voltage(V)

DC4.2V

Max.consumption(W/m²)

125W/m²

Ave.consumption(W/m²)

35W/m²

Brightness(CD/m²)

4300 CD/m²

Color temperature(K)

6500 K

View angle(H/V)

H:120°;V:120°

Refresh rate(Hz)

1920Hz

Working temperature(℃)

-20~50℃

Protect degree(F/B)

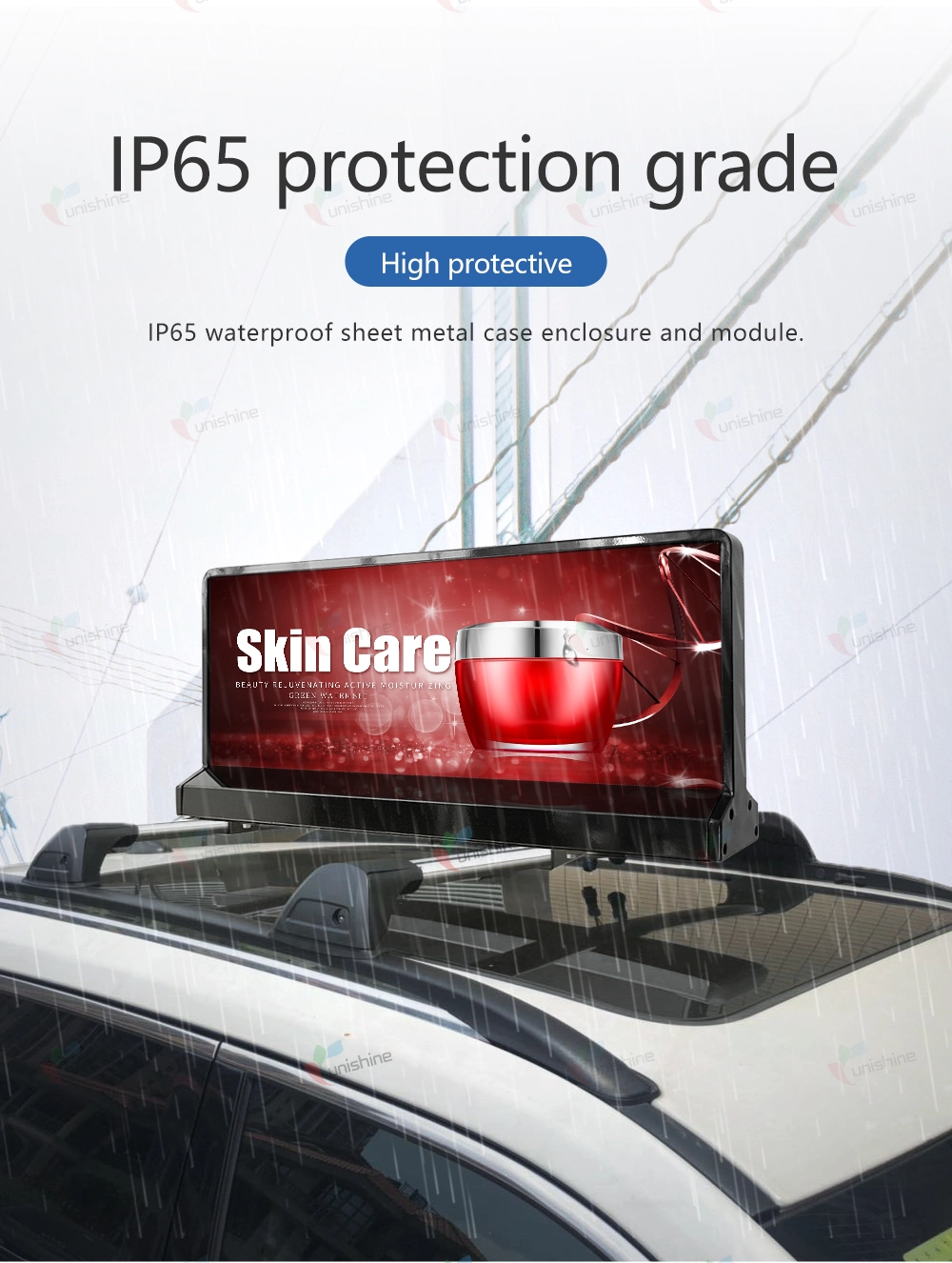

IP65/IP54

Grey / scale(bit)

13bit

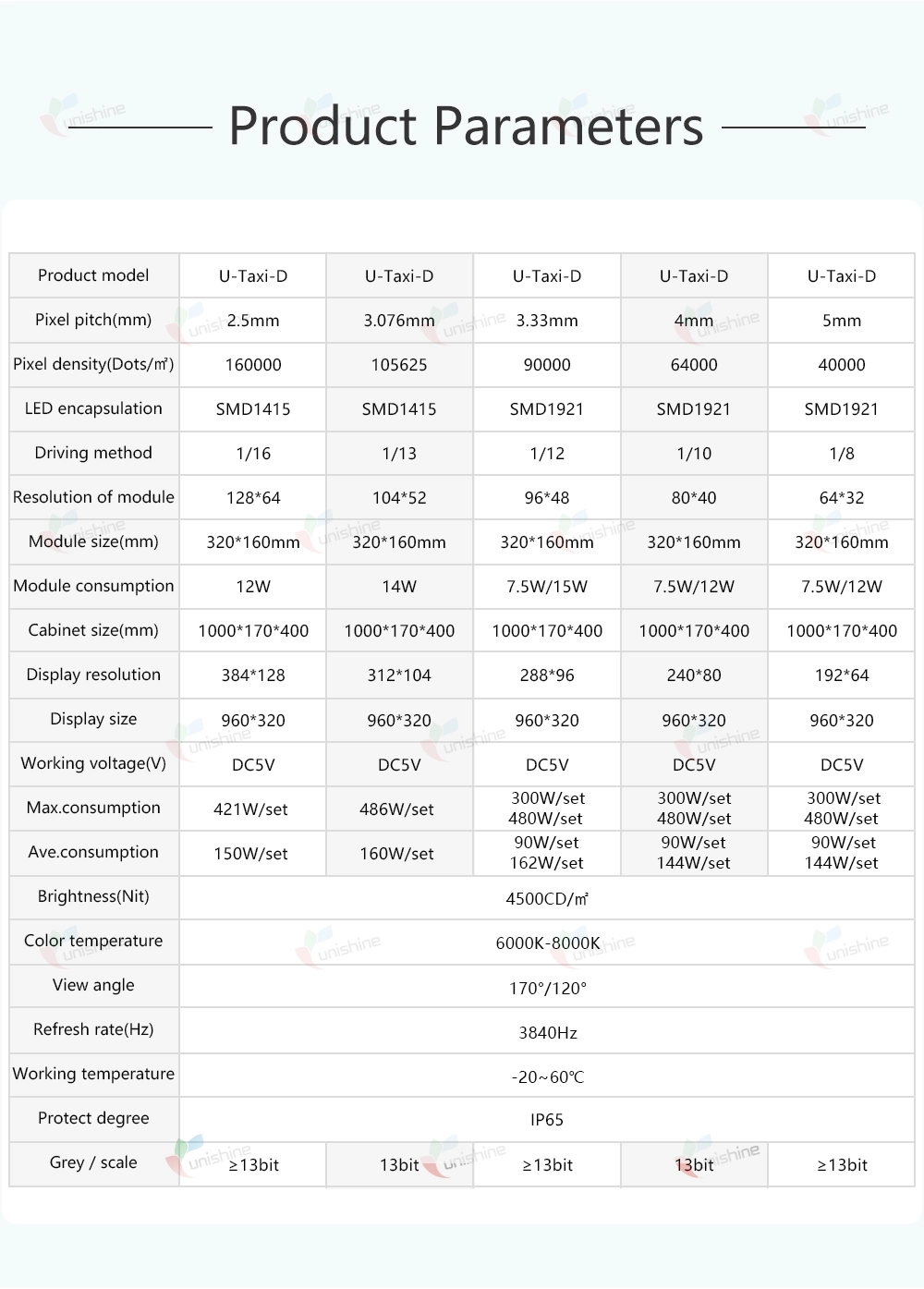

U-Taxi-D
