U-Stage

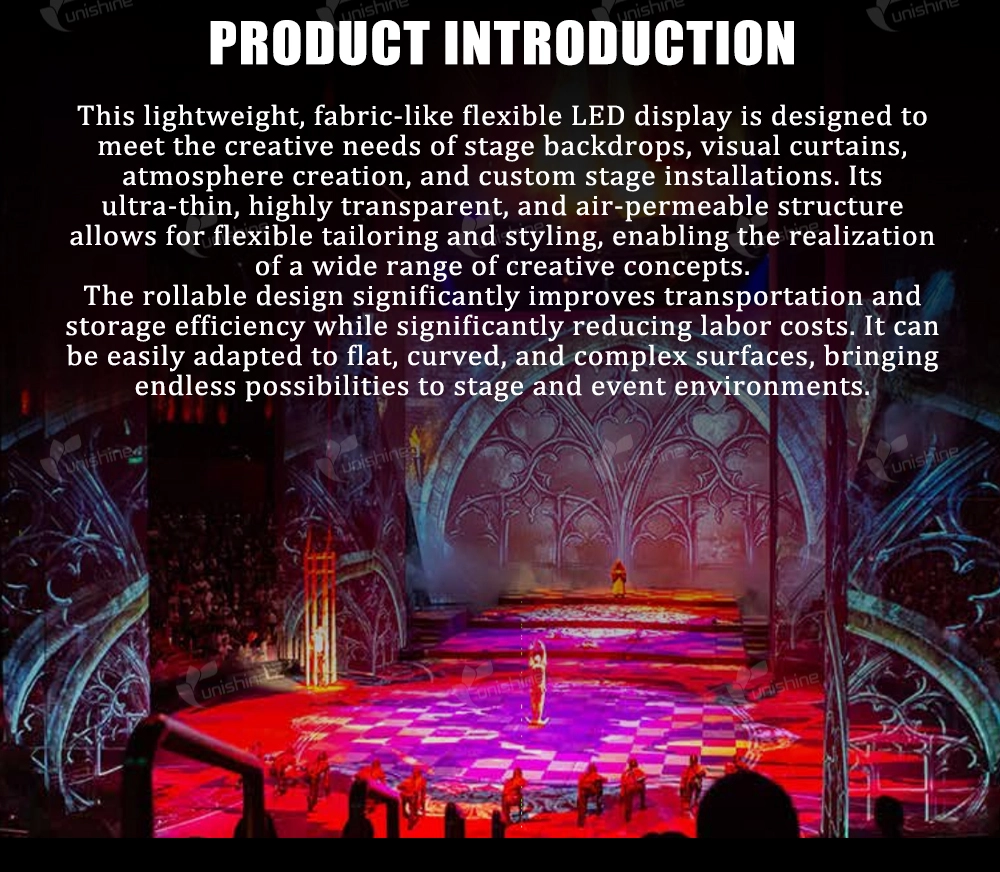

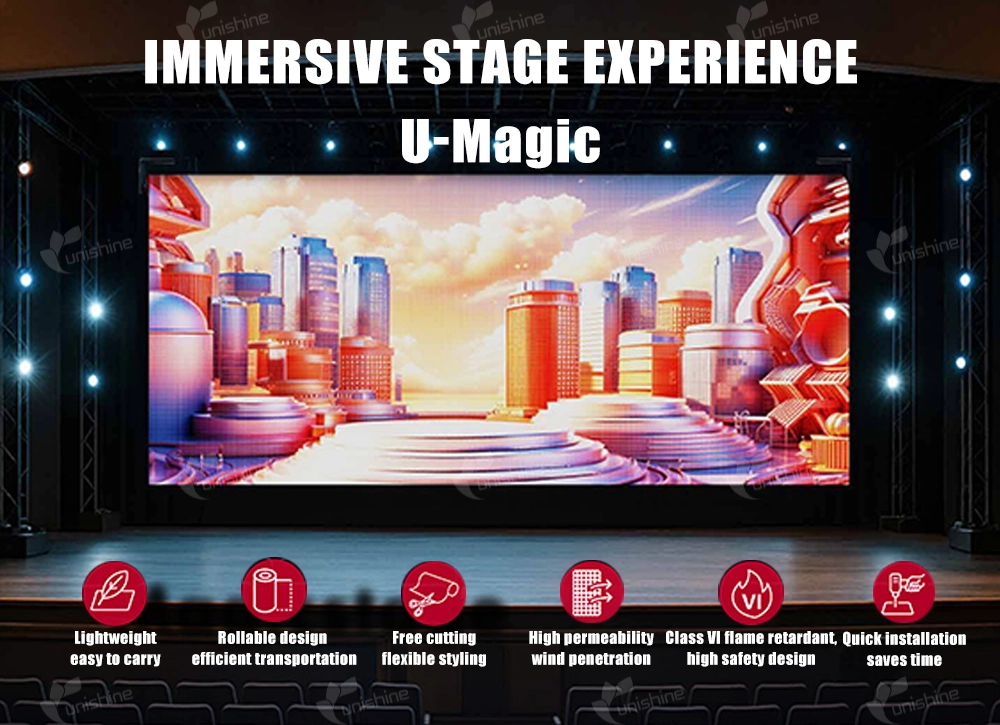

1. This lightweight fabric-like flexible LED display is designed to meet the creative needs of stage backdrops, visual curtains, atmosphere creation, and custom stage installations;

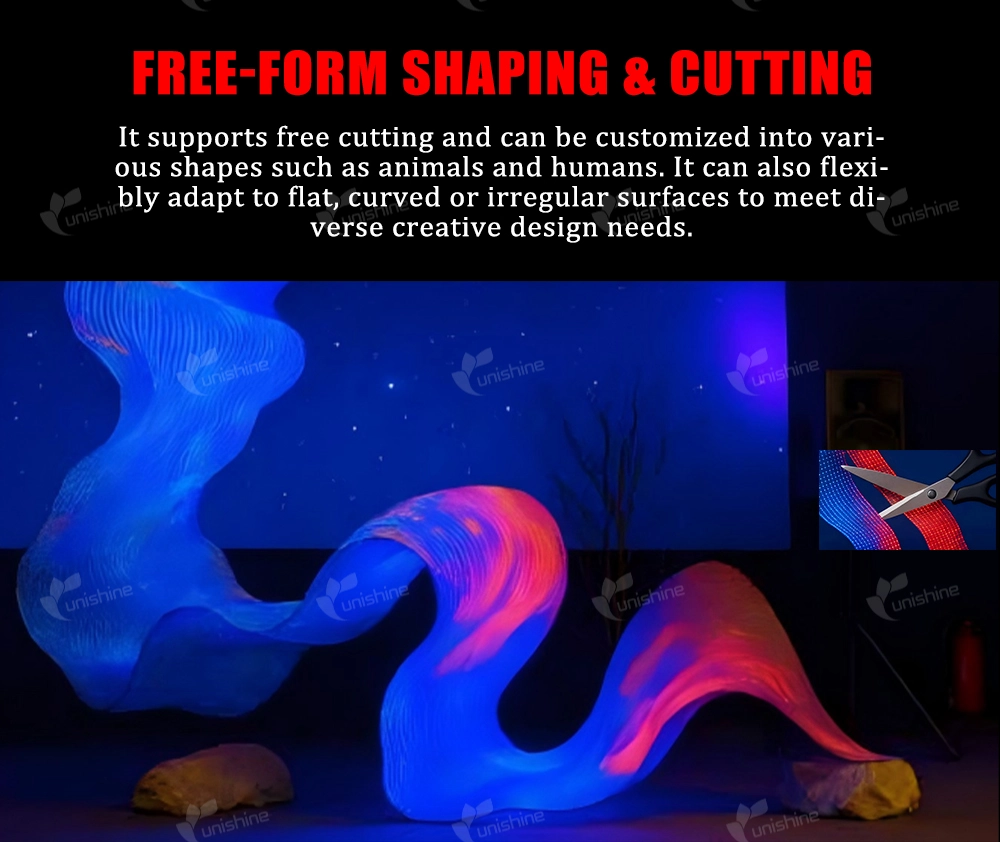

2. Its ultra-thin, highly transparent, and air-permeable structure allows for flexible tailoring and styling, enabling the realization of a wide range of creative concepts;
3. The rollable design significantly improves transportation and storage efficiency while significantly reducing labor costs;

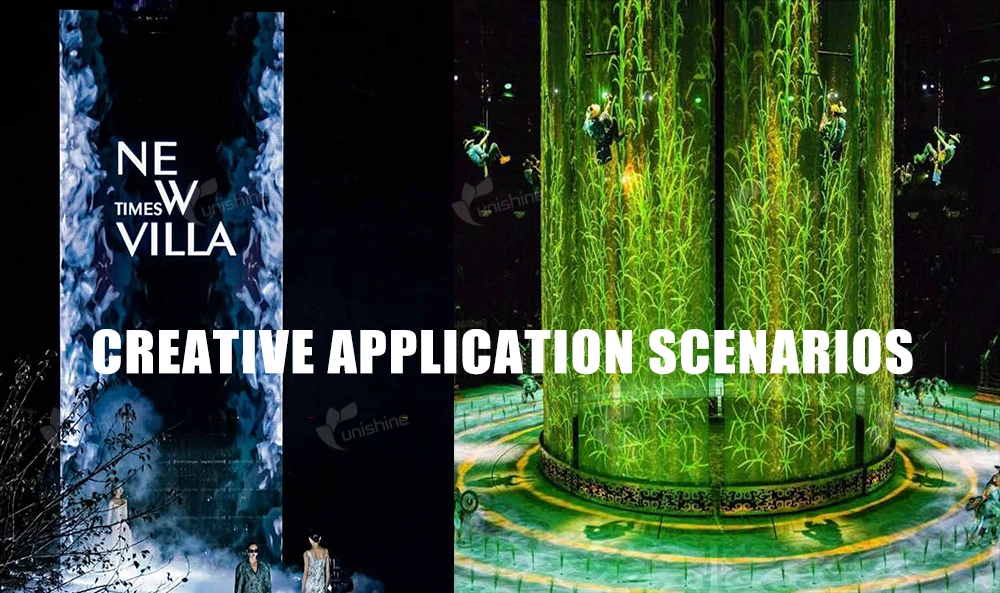

4. It can be easily adapted to flat, curved, and complex surfaces, bringing endless possibilities to stage and event environments.
|

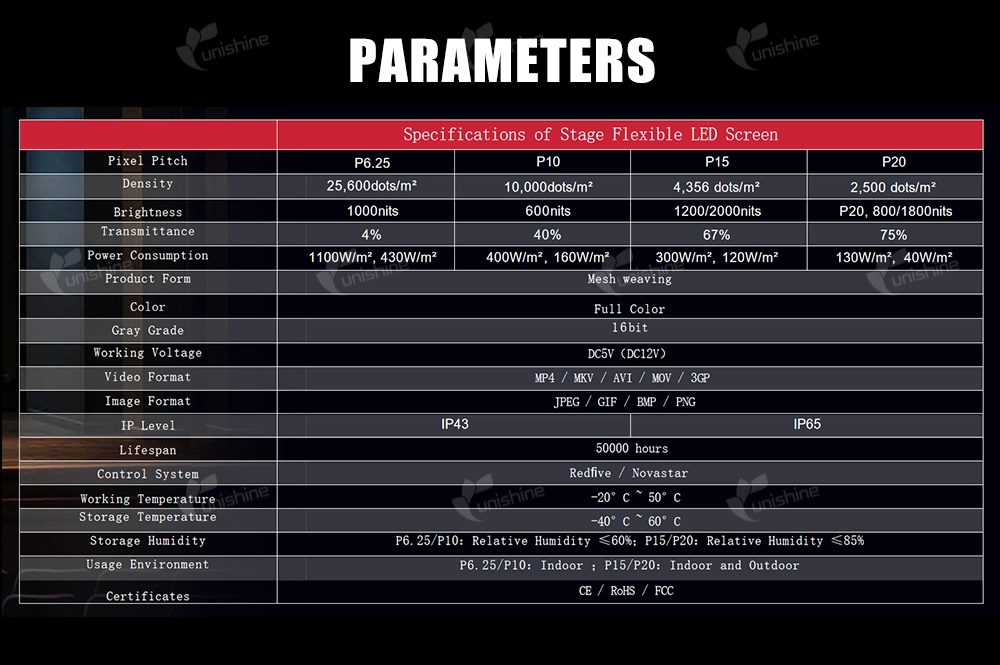

U-Magic U-Magic |
||||
|
Pixel Pitch |
P6.25 |
P10 |
P15 |
P20 |
|
Density
|
25,600 dots/㎡ |
10,600 dots/㎡ |
4,356 dots/㎡ |
2,500 dots/㎡ |
|
Brightness |
1000nits |
600nits |
1200/2000nits |
800/1800nits |
|

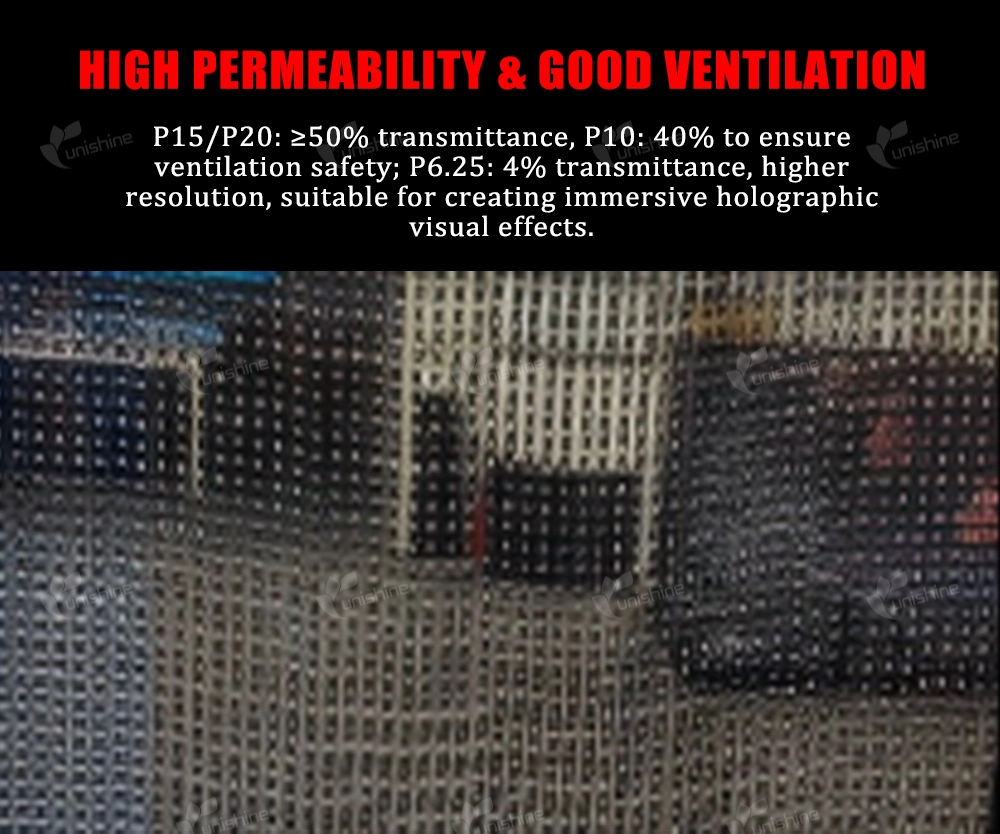

Transmittance |
4% |
40% |
67% |
75% |
|
Power Consumption |
1000W/㎡, 430W/㎡ |
400W/㎡, 160W/㎡ |
300W/㎡, 120W/㎡ |
130W/㎡, 40W/㎡ |
|
Color |
Full Color |
|||
|
Gray Grade |
16bit |
|||
|
Working Voltage |
DC5V(DC12V) |
|||
|
Video Format |
MP4 / MKV / AVI / MOV / 3GP |
|||
|
Image Format |
JPEG / GIF / BMP / PNG |
|||
|
IP Level |
IP43 |
IP65 |
||
|
Lifespan |
50000 hours |
|||
|
Control System supports |
Redfive / Novastar |
|||
|
Working Temperature |
-20℃~+50℃ |
|||
|
Storage Temperature |
-40℃~+60℃ |
|||
|
Storage Humidity |
P6.25/P10: Relative Humidity ≤60%; P15/P20: Relative Humidity ≤85% |
|||
|
Usage Environment |
P6.25/P10:Indoor; P15/P20: Indoor and Outdoor |
|||
|
Certificates |
CE / RoHS / FCC |
|||
|
Gross Weight（kg） |
109kg （Estimated data,2pcs /Case） |
|
Outer Package Size |
1030*388*1150mm （Estimated data,2pcs /Case） |
|
Packing Material |
Carton+Pearl cotton +wooden pallet |
