U-Sky
1. Ultra-Light Flyable LED Display is an innovative LED display designed specifically for drone-mounted applications;

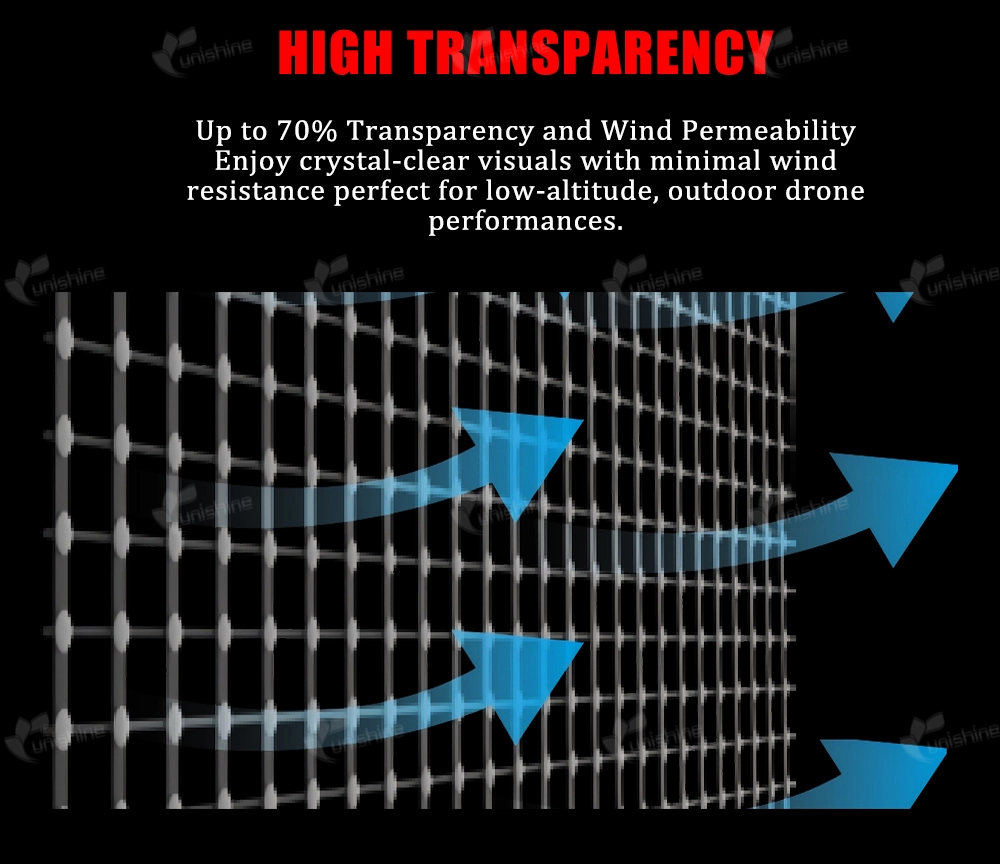

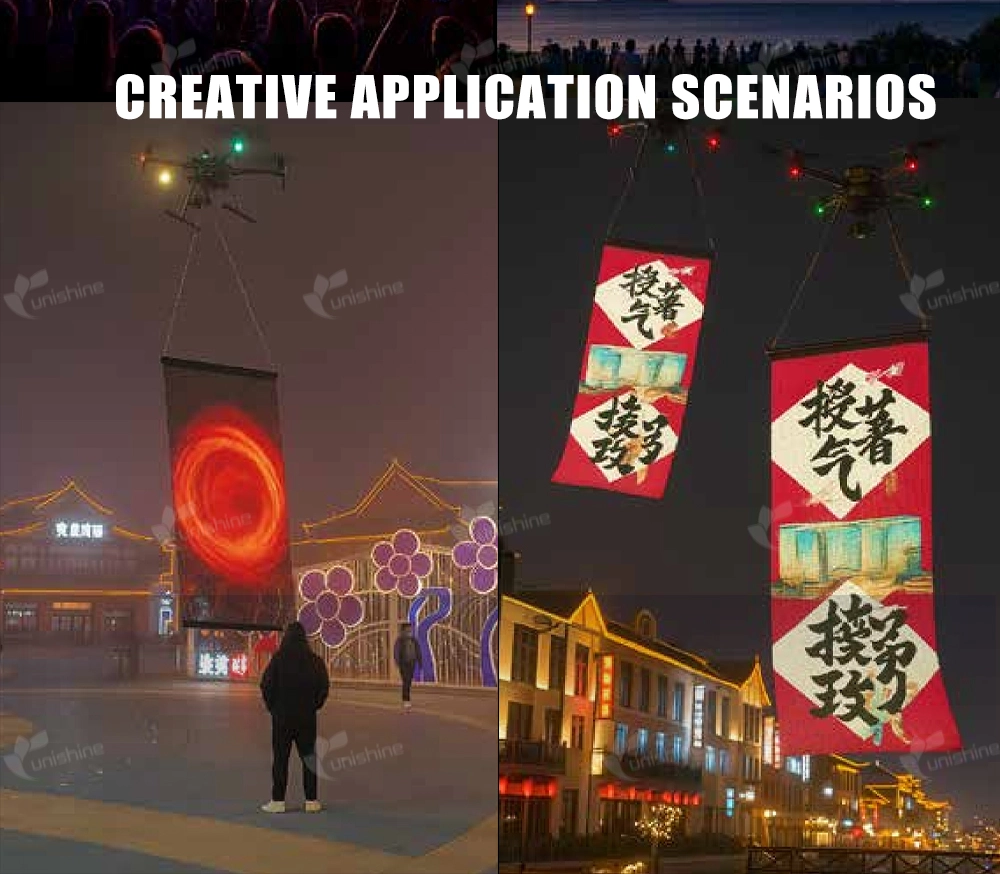

2. With its ultra-lightweight, ultra-thin, highly transparent, and wind-permeable design, it is ideal for artistic performances, low-altitude advertising, drone shows, and cultural tourism events;

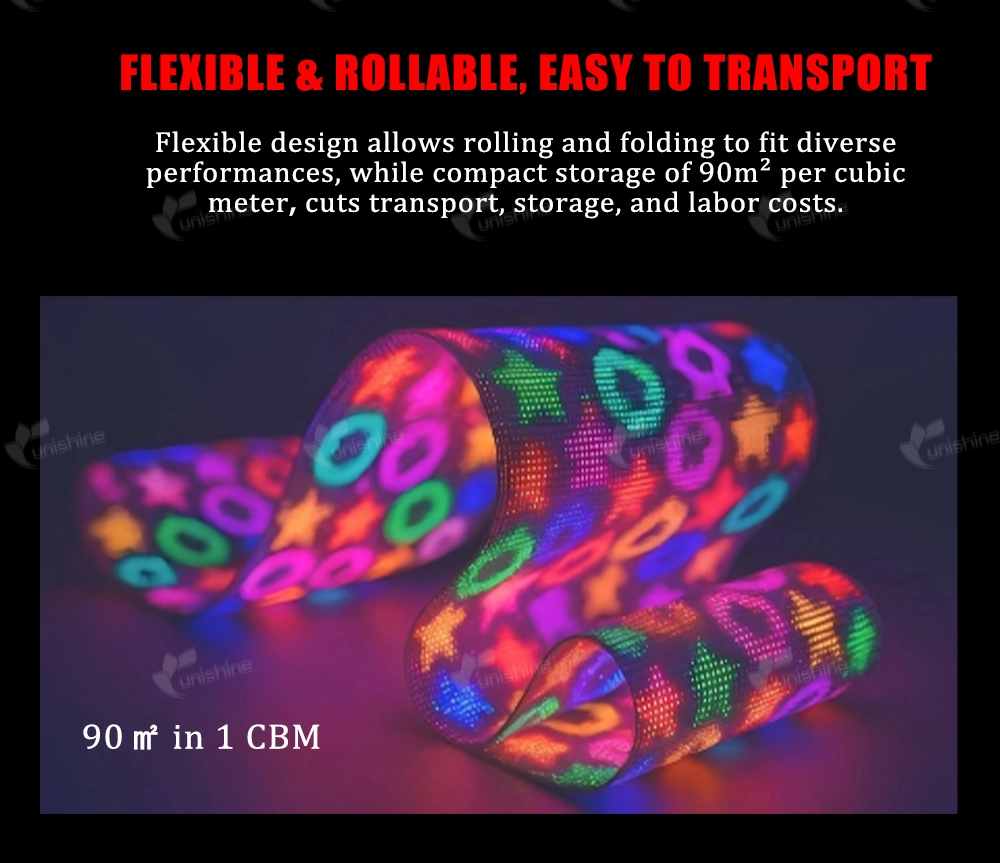

3. Its flexible, rollable structure and efficient transportation and storage make a game-changer in creative visual displays, leading the next generation of aerial visual experiences.
|
U-Sky LED Display Specification |
|||
|

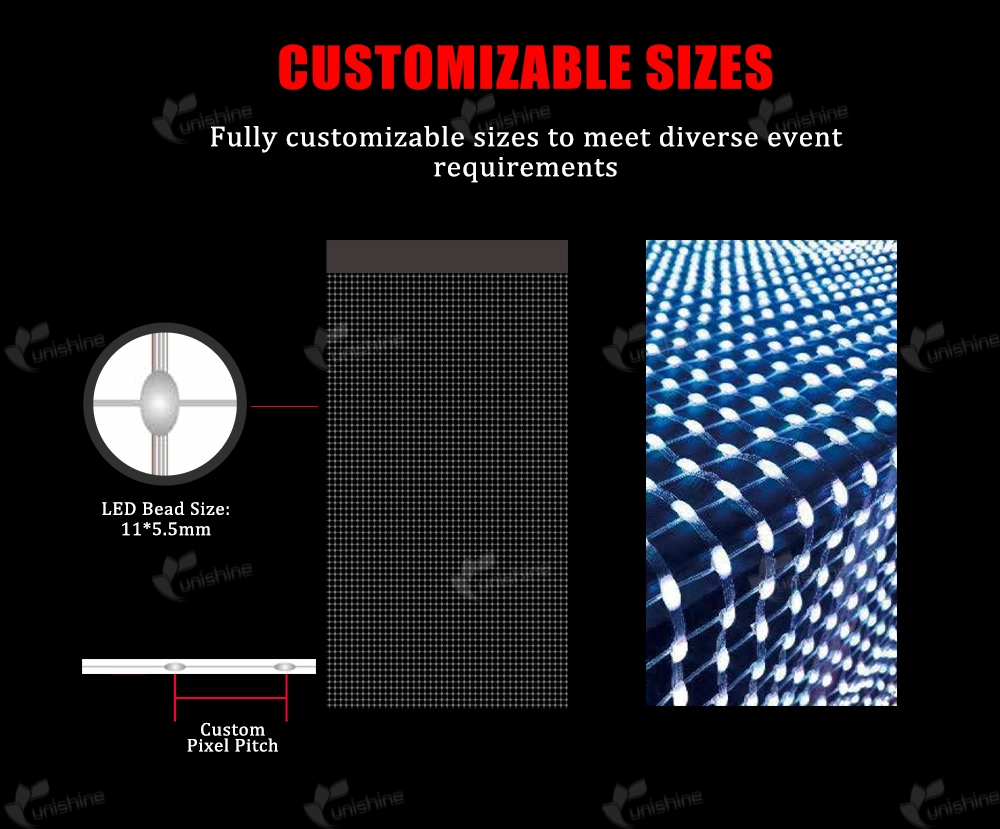

Pixel Pitch |
P15 |
P20 |
P25 |
|
Density
|
4356 dots/㎡ |
2500 dots/㎡ |
1600 dots/㎡ |
|
Brightness |
1200nits |
800nits |
500nits |
|
Power Consumption |
100W/㎡, 30W/㎡ |
60W/㎡, 24W/㎡ |
40W/㎡, 20W/㎡ |
|

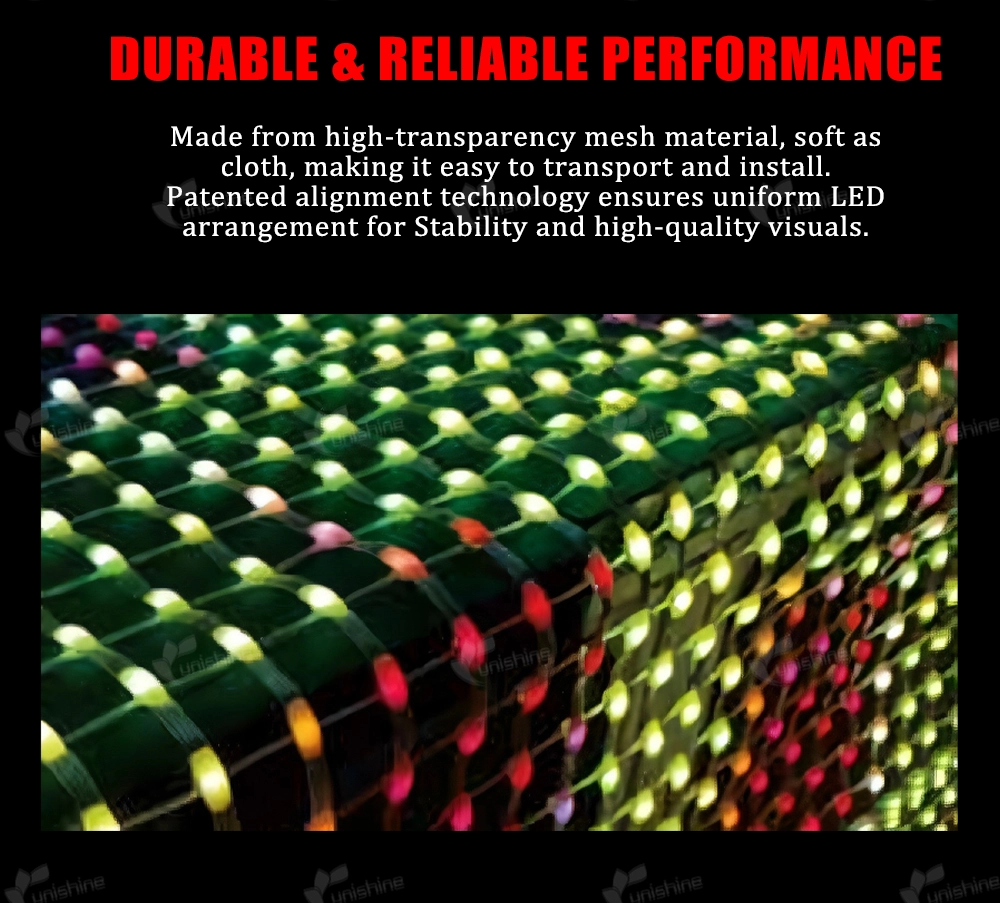

Product Form |
Mesh weaing |
||
|
Color |
Full Color |
||
|
Gray Grade |
16bit |
||
|
Working Voltage |
DC5V(DC12V) |
||
|
Video Format |
MP4 / MKV / AVI / MOV / 3GP |
||
|
Image Format |
JPEG / GIF / BMP / PNG |
||
|
IP Level |
IP54 |
||
|
Lifespan |
50000 hours |
||
|
Control System supports |
Redfive / Novastar |
||
|
Working Temperature |
-20℃~+50℃ |
||
|
Storage Temperature |
-40℃~+60℃ |
||
|
Storage Humidity |
Relative humidity ≦ 85% |
||
|
Usage Environment |
Indoor(Outdoor in the night) |
||
|
Certificates |
CE / RoHS / FCC |
||
|
Drone Specification |
|||||
|
Model |
D10 |
D15 |
D25 |
D35 |
D50 |
|
No-load Endurance |
Max 40mins |
Max 40mins |
Max 40 mins |
Max 40 mins |
Max 40 mins |
|
Load Endurance |
About 10~20mins |
About 10~20mins |
About 10~20 mins |
About 10~20 mins |
About 10~20 mins |
|
Flight Speed |
80km/hour |
80km/hour |
100 km/hour |
100 km/hour |
100 km/hour |
|
Hovering Accuracy |
0.35m |
0.35m |
0.35 m |
0.35 m |
0.35 m |
|
Max Size (mm) |
1115*1230*450 |
1365*1505*500 |
1780*1960*550 |
2190*2415*600 |
2650*2915*700 |
|
Folded Size (mm) |
400*400*450 |
450*450*500 |
650*650*550 |
750*750*600 |
900*900*700 |
|
Load Capacity |
10kg |
15kg |
25 kg |
35 kg |
50 kg |
|
Suggested Size (H/V) |
Popular size: 2*4m or less than 8sqm |
Popular size: 3*4m or less than 12sqm |
Popular size: 3*6m or less than 20sqm |
Popular size: 4*8m or less than 32sqm |
Popular size: 4*10m or less than 40sqm |
|
Suggested Pixel Pitch |
P15 |
P15 |
P20 |
P20 |
P20/P25 |
|
Gross Weight（kg） |
109kg （Estimated data,2pcs /Case） |
|

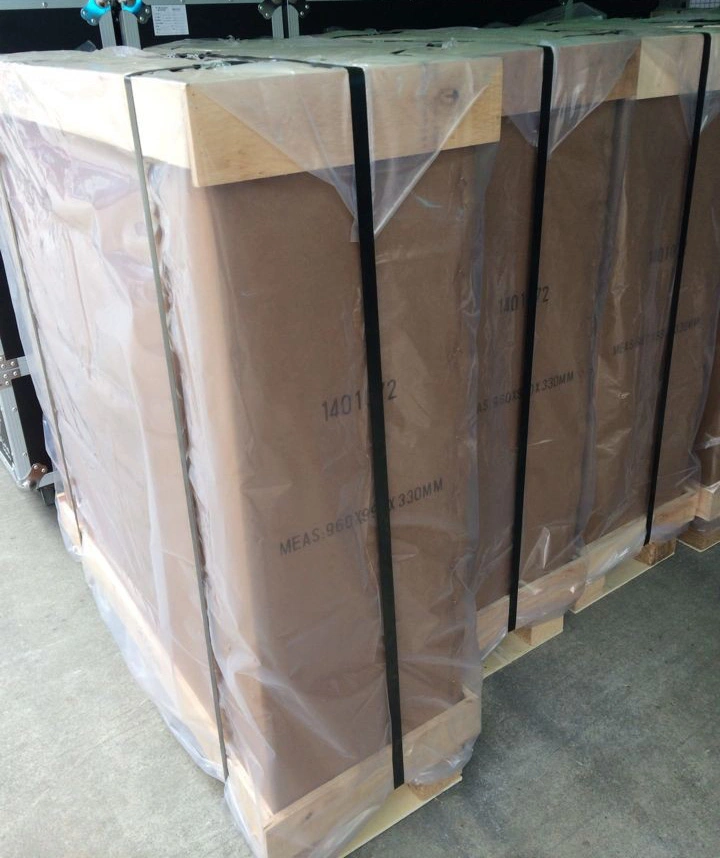

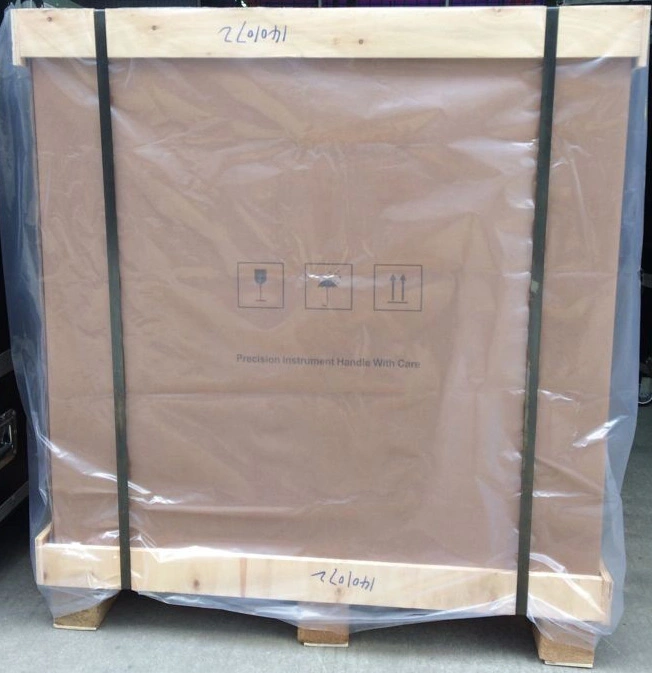

Outer Package Size |
1030*388*1150mm （Estimated data,2pcs /Case） |
|
Packing Material |
Carton+Pearl cotton +wooden pallet |
