U-RP
P1.95/2.6/2.97/3.91 Stage Event LED Screen
1.Robust and weather-resistant design ideal for outdoor events;
2.High-definition visuals with detailed imagery for professional displays;

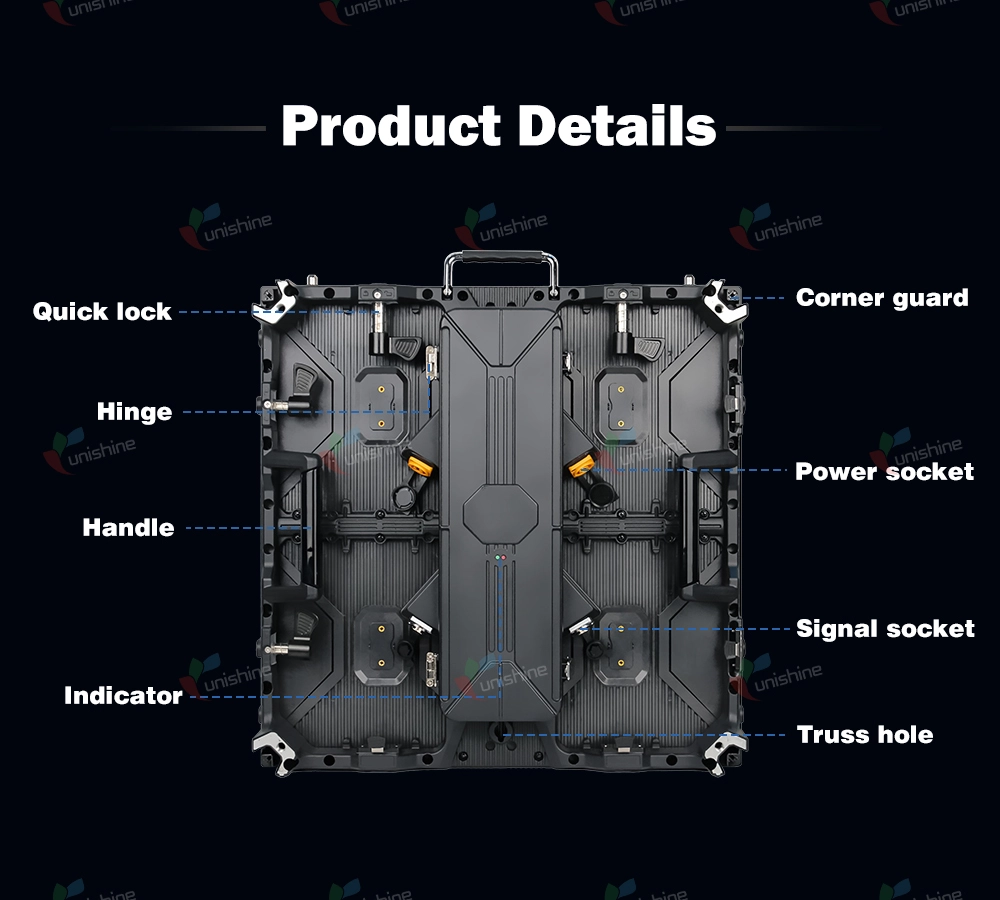

3.Die-Casting Aluminum Cabinet, durable and lightweight, ensuring stability during use;
4.Protects against dust and water, suitable for various environments;

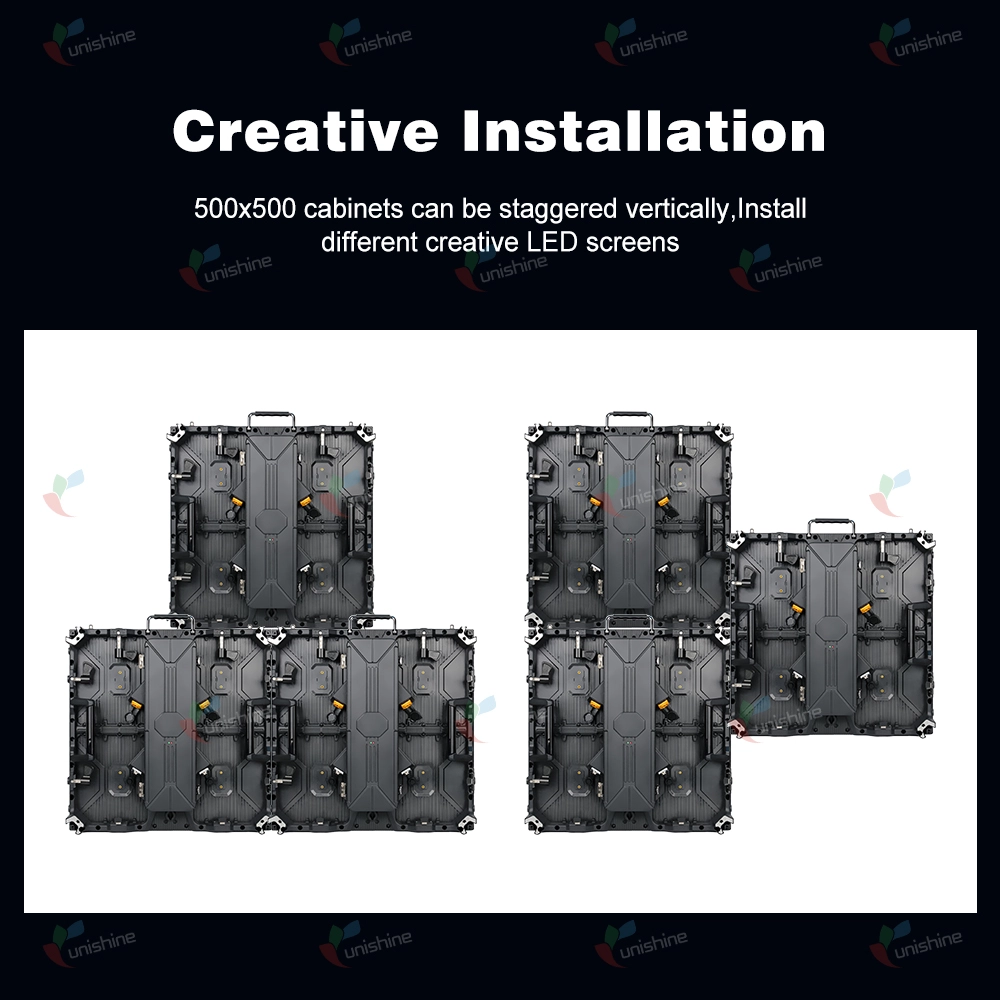

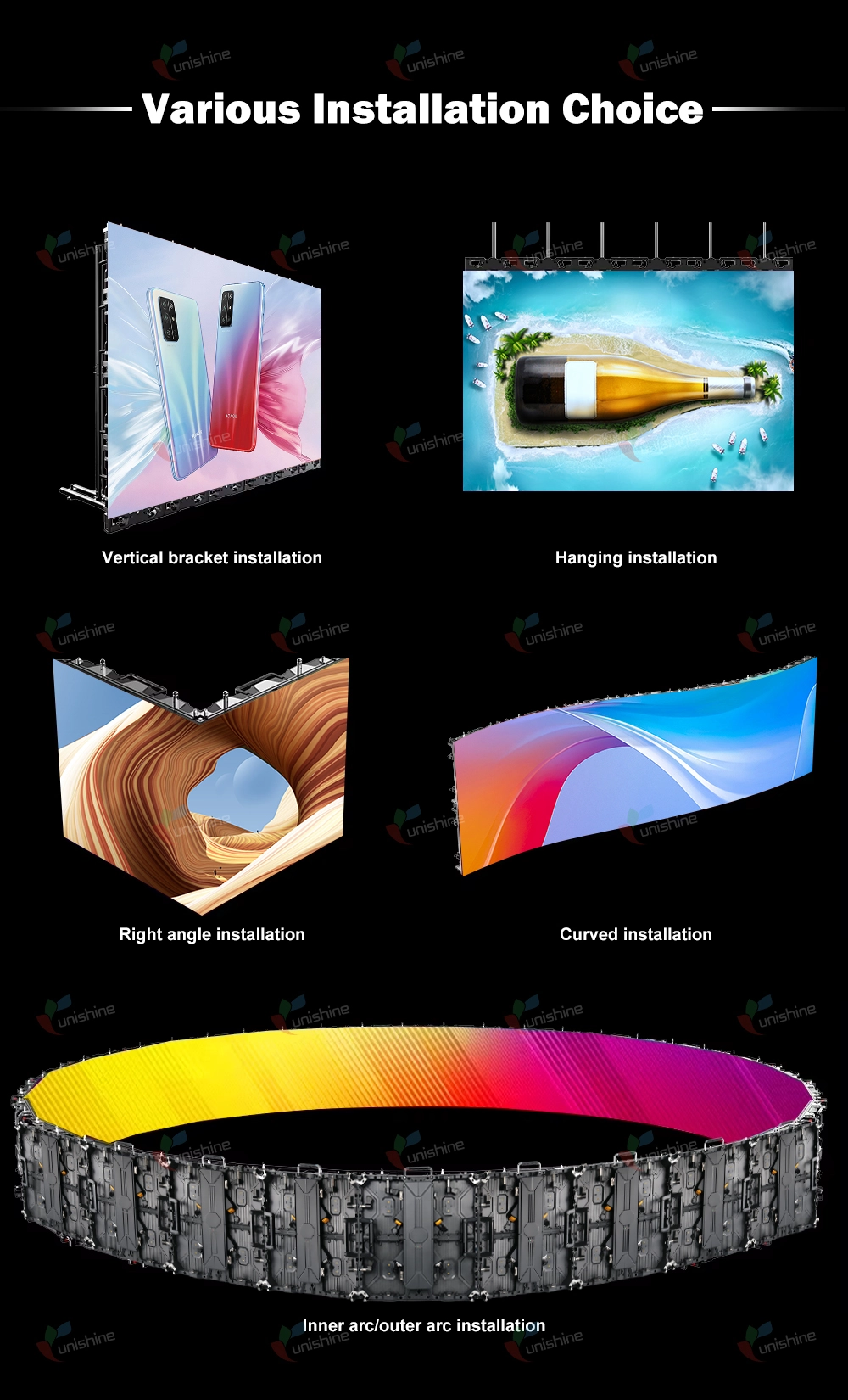

5.Easy to mount on walls, floors, or custom setups;
6.Full set of Stage LED Display Screen;
7.500sqm stock in warehouse.
|
U-RP (Outdoor) |
|||
|
Pixel pitch(mm) |
2.6mm |
2.97mm |
3.91mm |
|
Cabinet Size |
500*1000mm |
500*1000mm |
500*1000mm |
|
Pixel density(dots/m²) |
147456 Dots/㎡ |
112896 Dots/㎡ |
65536 Dots/㎡ |
|
LED encapsulation |
SMD1515 |
SMD1515 |
SMD1921 |
|
Driving method |
1/32 |
1/28 |
1/16 |
|
Resolution of cabinet（dot） |
192*192 Dots |
168*168 Dots |
128*128 Dots |
|
Module size(mm) |
250*250*18mm |
250*250*18mm |
250*250*18mm |
|
Max.consumption(W/m²) |
300W/㎡ |
300W/㎡ |
280W/㎡ |
|
Ave.consumption(W/m²) |
160W/㎡ |
160W/㎡ |
140W/㎡ |
|
Brightness(CD/m²) |
4000CD/m² |
4000CD/m² |
4000CD/m² |
|
Color temperature(K) |
6500-8500K |
6500-8500K |
6500-8500K |
|
View angle(H/V) |
H：160°；V：160° |
H：160°；V：160° |
H：160°；V：160° |
|
Refresh rate(Hz) |
3840-7680Hz |
3840-7680Hz |
3840-7680Hz |
|
Working temperature（℃） |
-10~+60℃ |
-10~+60℃ |
-10~+60℃ |
|
Protect degree(F/B) |
IP65 |
IP65 |
IP65 |
|
Grey / scale（bit） |
14bit |
14bit |
14bit |
|
Input Voltage |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
|
Protect degree(F/B) |
IP65 / IP63 |
IP65 / IP63 |
IP65 / IP63 |
|
Weight(kg/sqm) |
16kg |
16kg |
16kg |
