U-Rent

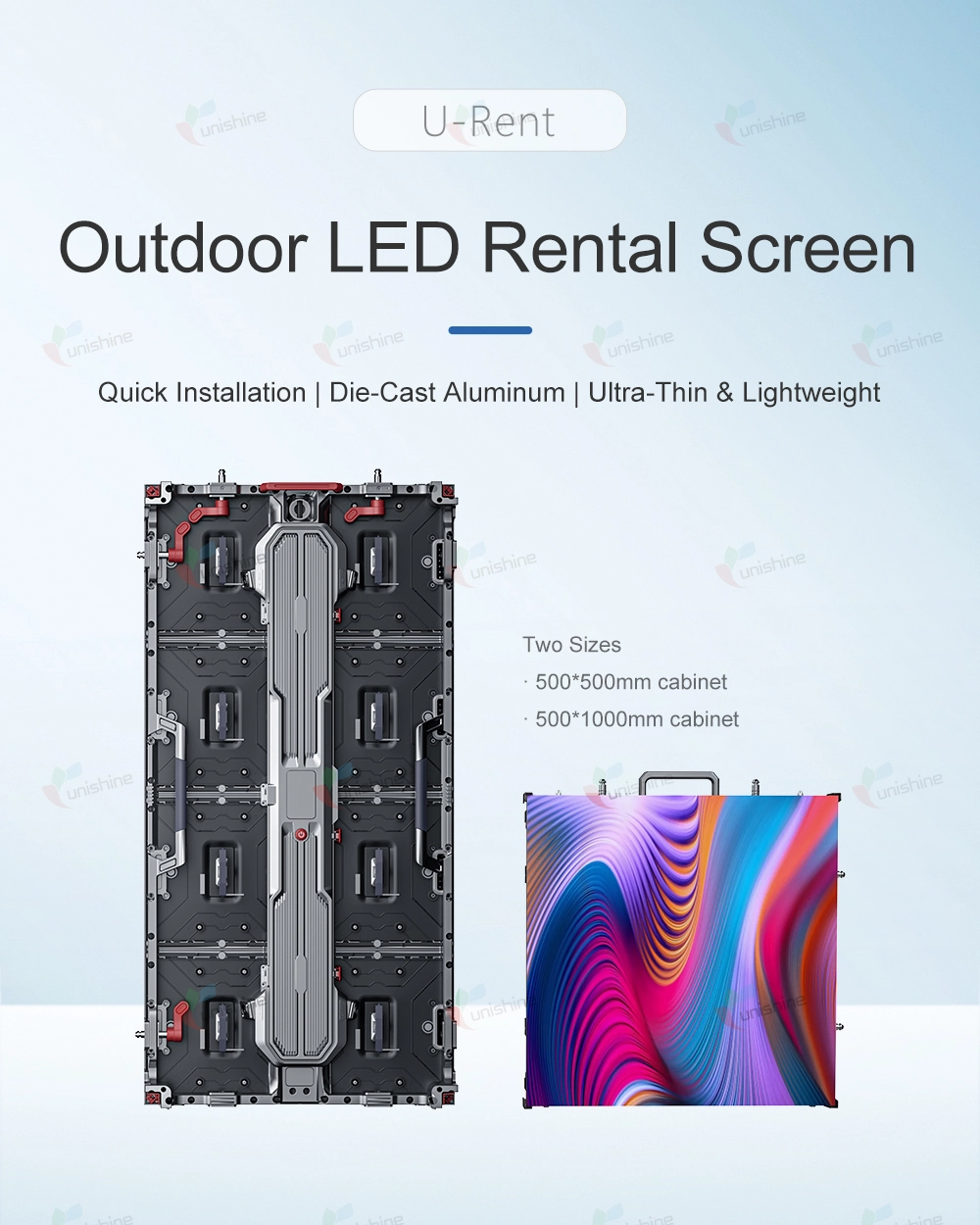

P2.6/2.97/3.91 Stage Rental LED Screen

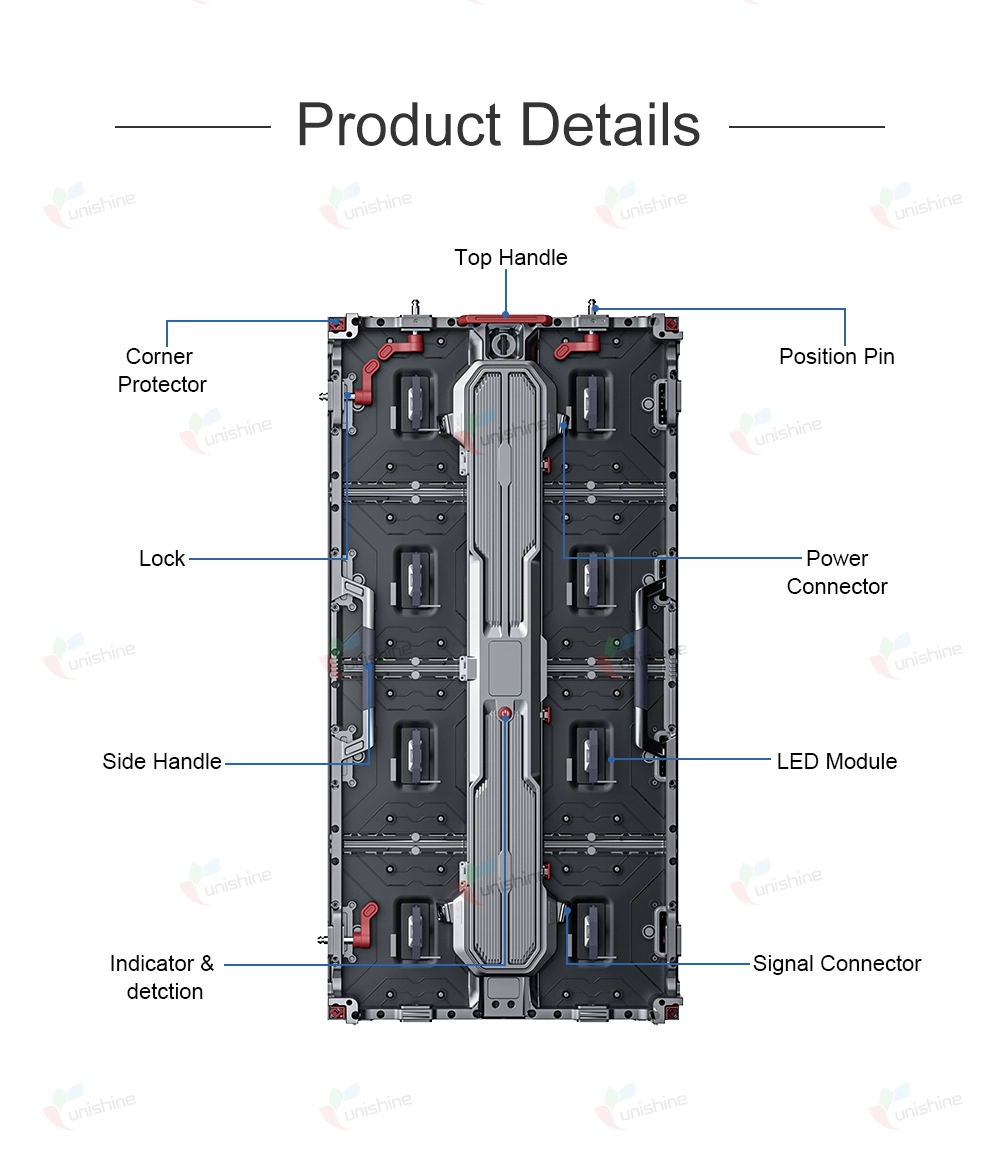

1.High precision cast aluminum cabinet;

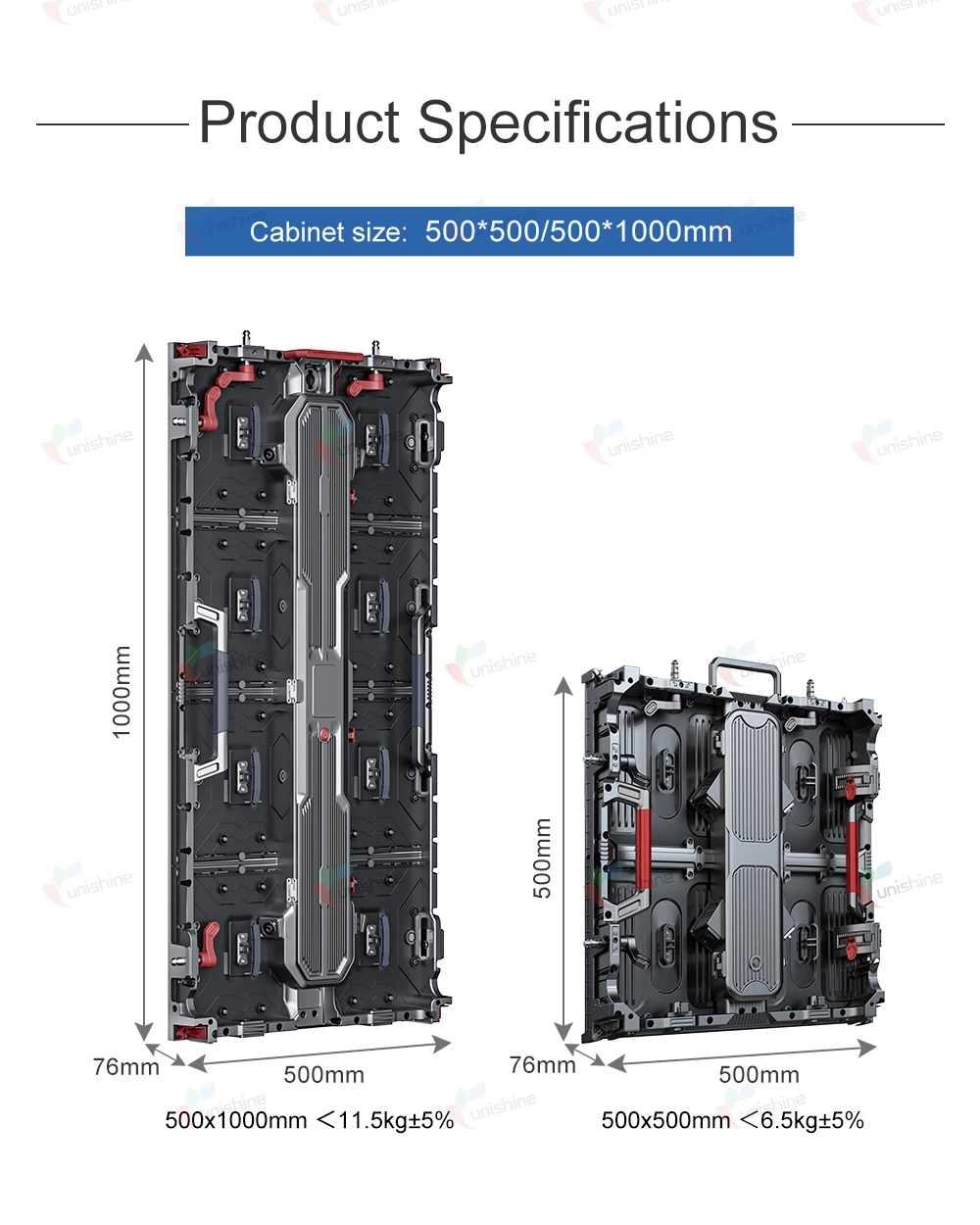

2.500*1000 ≤11.5KG/cabinet, with a thickness of only 76mm;

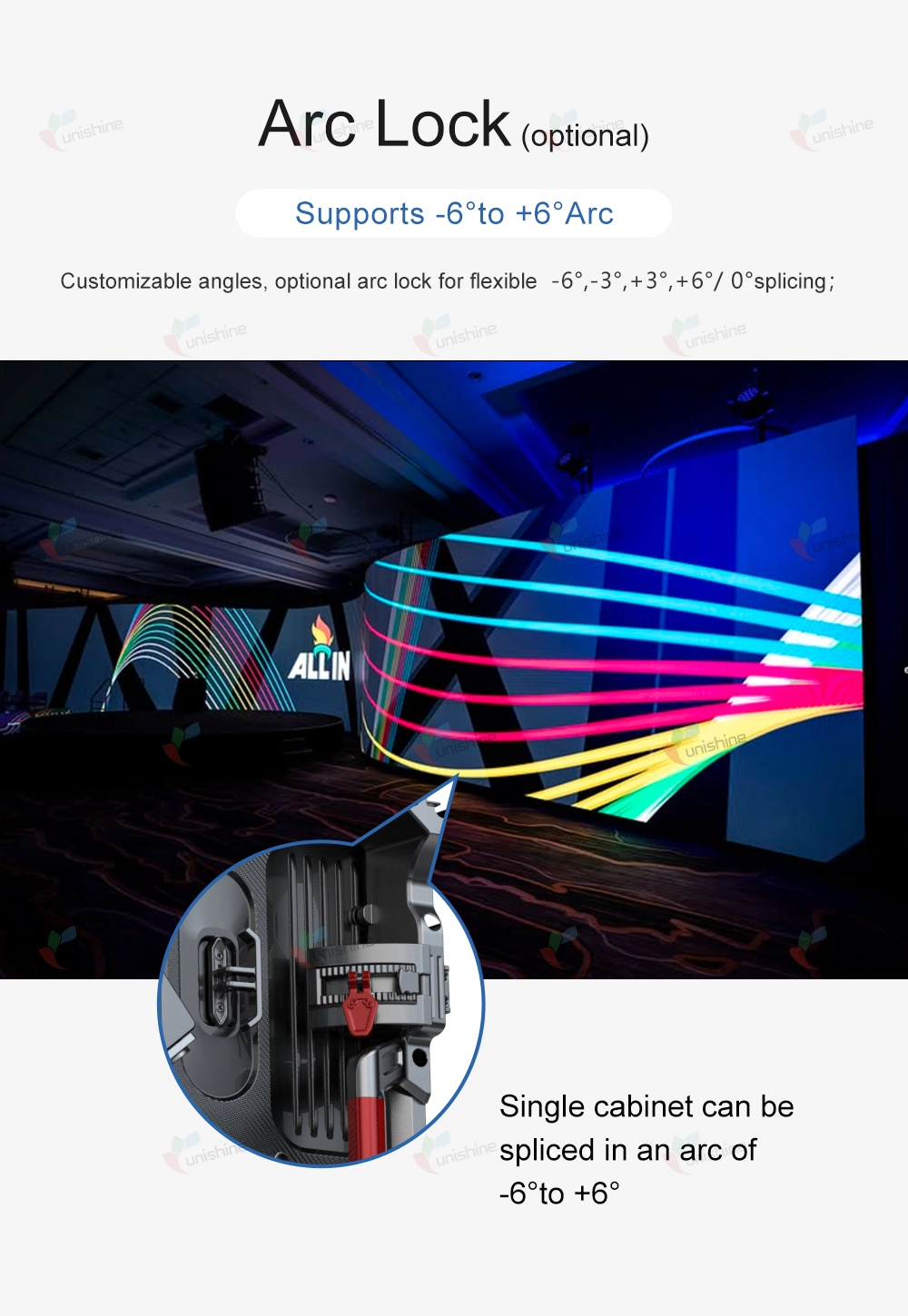

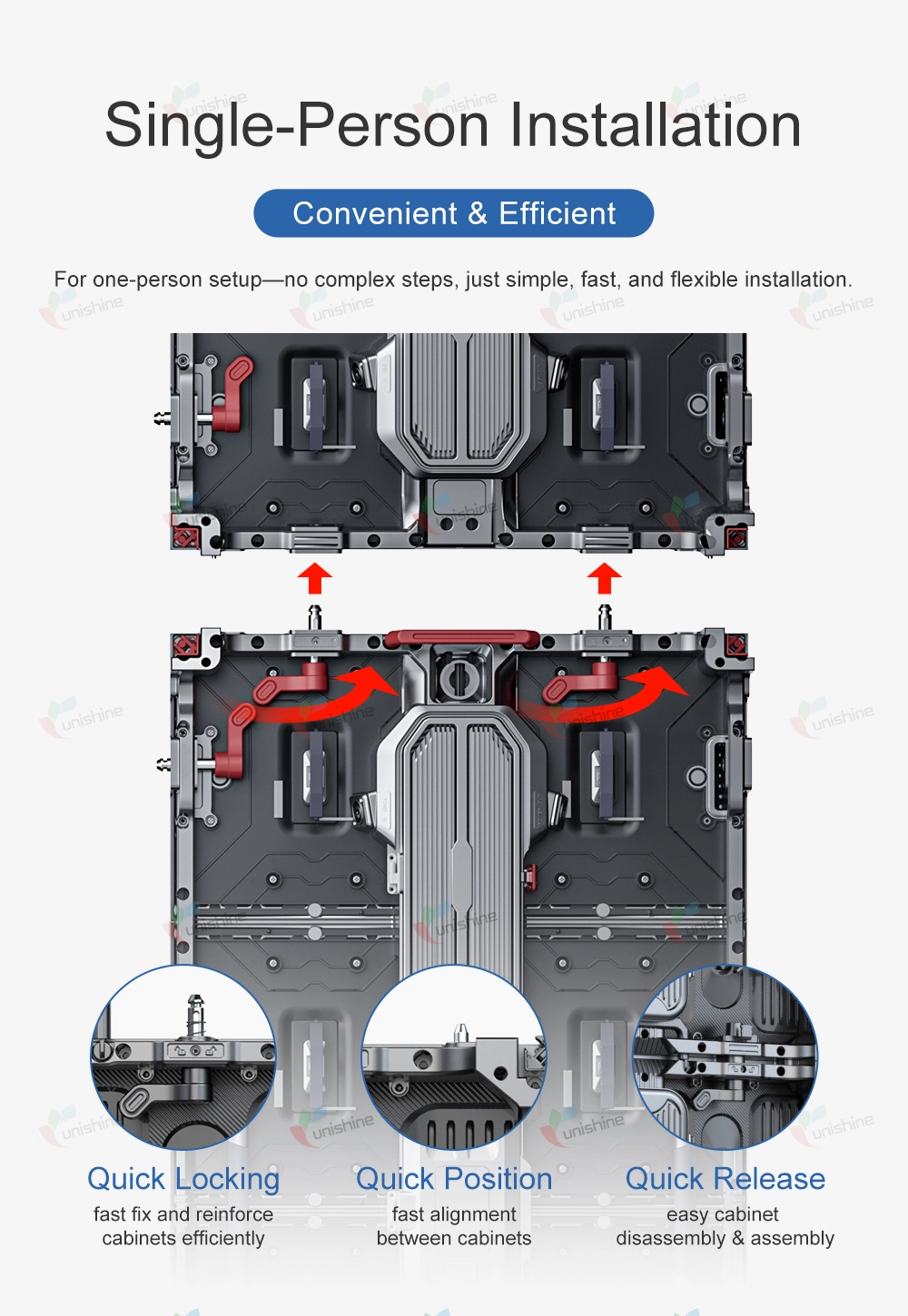

3.Optional curved lock, capable of splicing large screens with – 10 to 15 ° camber, 90°corner, etc;

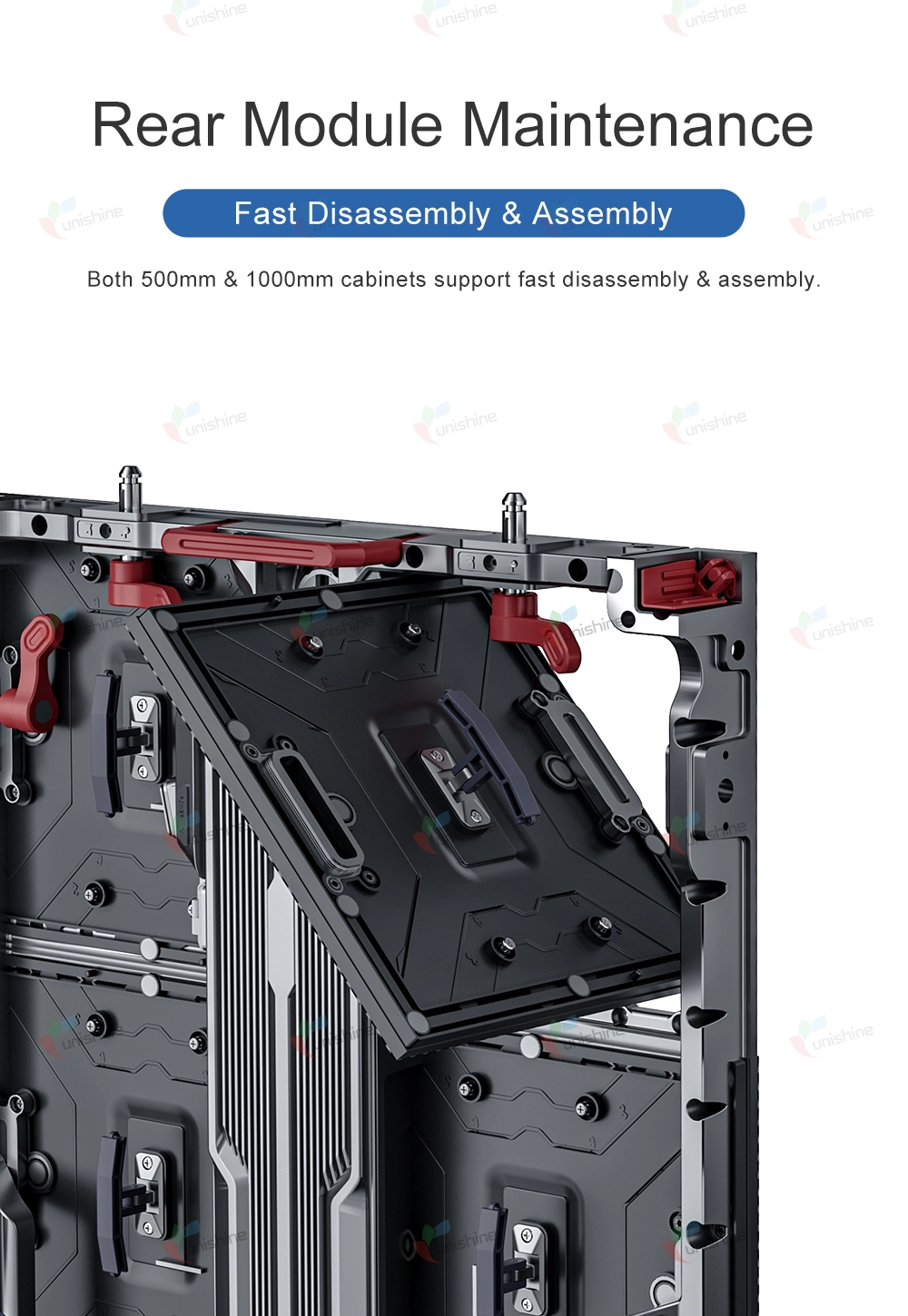

4.Optional magnetic module can achieve complete assembly, disassembly and maintenance of the module and power supply front the front.
5.Work in silence: no fan, noise ≤ 40DB; Not affecting the on-site audio-visual effect;
6.Background large screen optimization plan; High refresh, SLR, camera 1/3000S shutter capture, no flicker, no ghost scanning line;

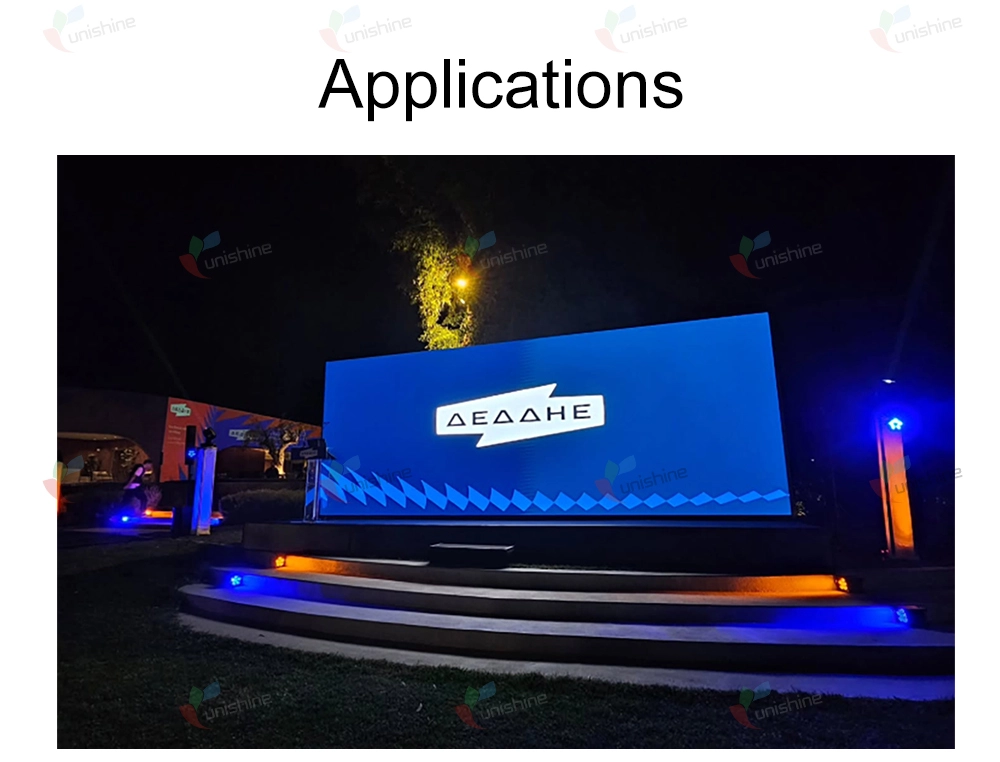

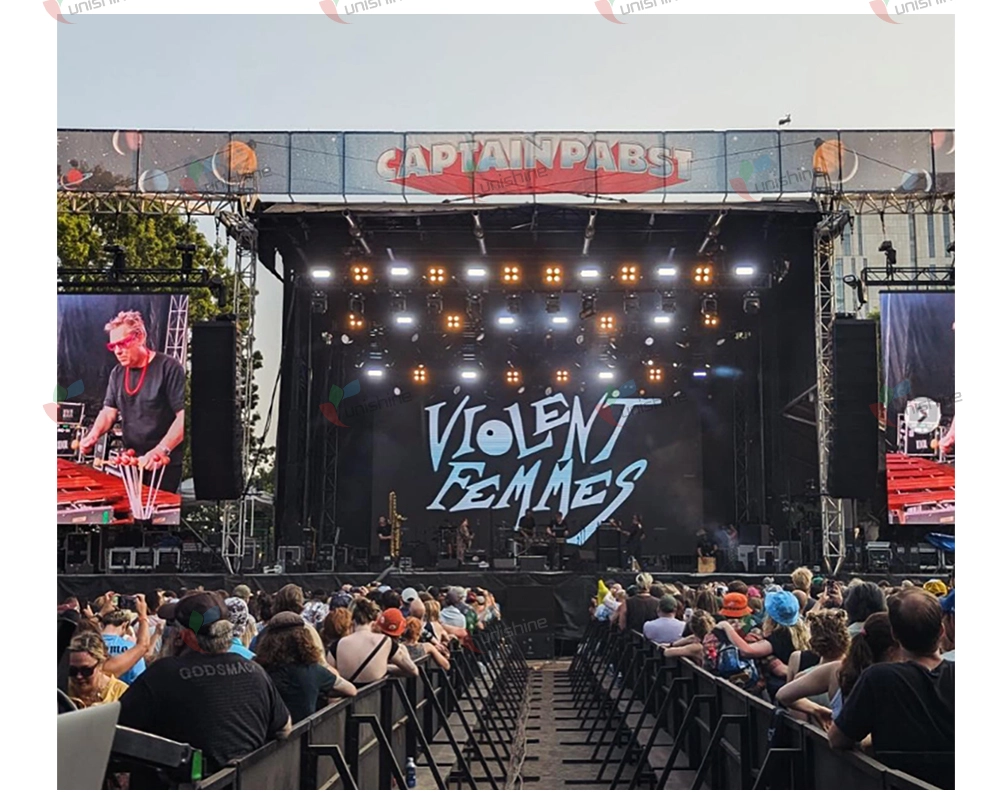

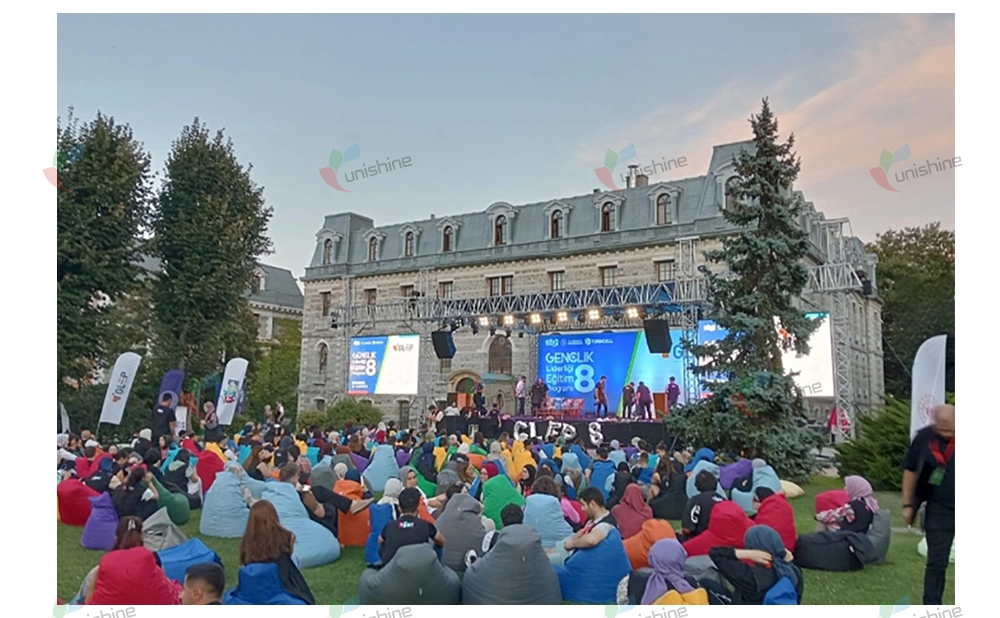

7.Indoor and outdoor universal pixel pitches with P2.6/2.9/3.9 ets; Specialized in providing overall LED display solutions for events, conferences, stage, product launches, and real estate.
|
U-Rent（Outdoor） |
|||
|
Pixel pitch(mm) |
2.6mm |
2.97mm |
3.91mm |
|
Pixel density(dots/m²) |
147456 Dots/㎡ |
112896 Dots/㎡ |
65536 Dots/㎡ |
|
LED encapsulation |
SMD1515 |
SMD1515 |
SMD1921 |
|
Driving method |
1/24 |
1/21 |
1/16 |
|
Resolution of module（dot） |
96*96 Dots |
84*84 Dots |
64*64 Dots |
|
Module size(mm) |
250*250*18mm |
250*250*18mm |
250*250*18mm |
|
Working voltage(V) |
DC4.6V |
DC4.6V |
DC4.6V |
|
Max.consumption(W/m²) |
800W/㎡ |
800W/㎡ |
800W/㎡ |
|
Ave.consumption(W/m²) |
400W/㎡ |
400W/㎡ |
400W/㎡ |
|
Brightness(CD/m²) |
4500CD/m² |
4500CD/m² |
4500CD/m² |
|
Color temperature(K) |
3000-10000K adjustable |
3000-10000K adjustable |
3000-10000K adjustable |
|
View angle(H/V) |
H：160°；V：160° |
H：160°；V：160° |
H：160°；V：160° |
|
Refresh rate(Hz) |
7680Hz |
7680Hz |
7680Hz |
|
Working temperature（℃） |
﹣10~40℃ |
﹣10~40℃ |
﹣10~40℃ |
|

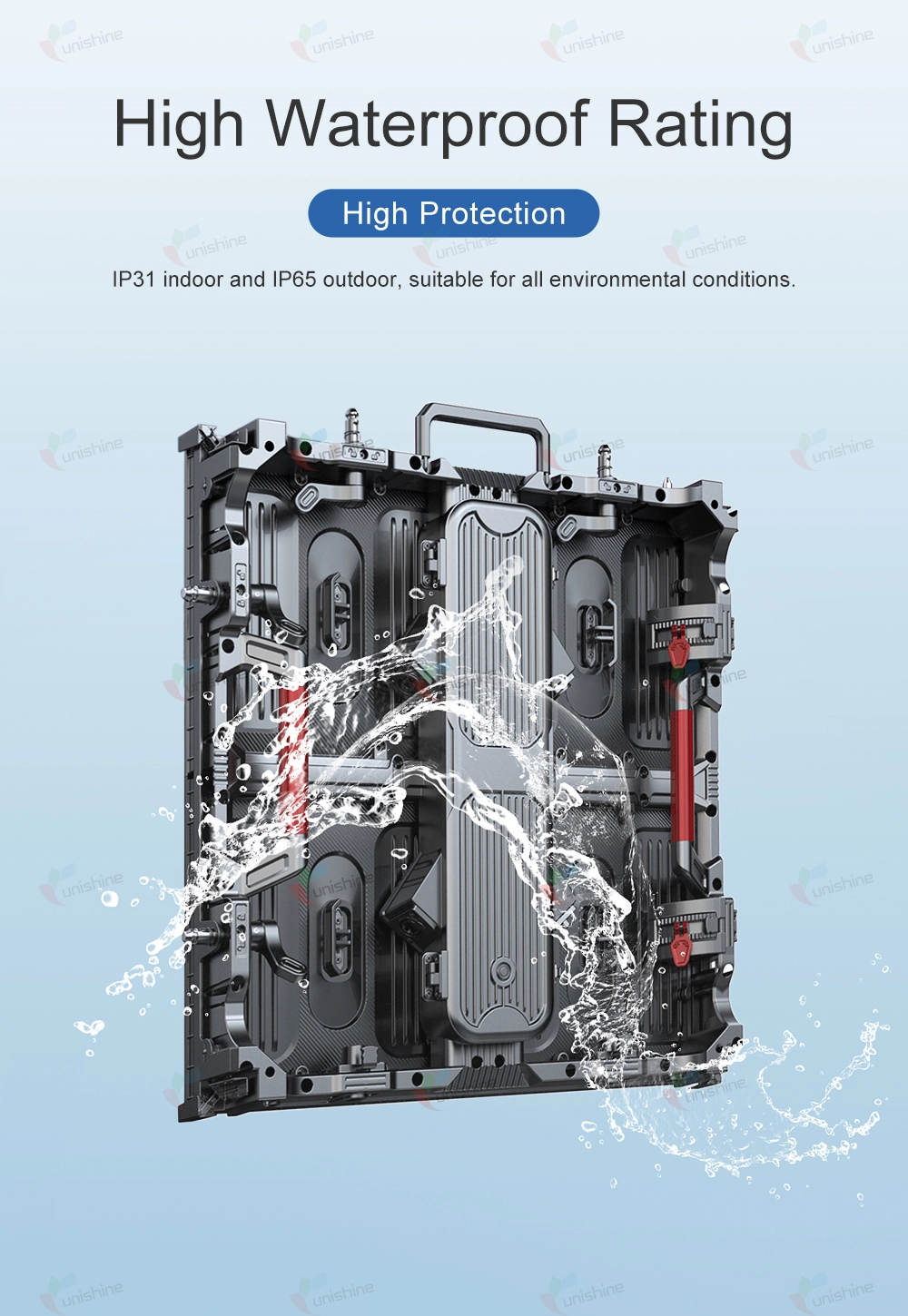

Protect degree(F/B) |
IP65 |
IP65 |
IP65 |
|
Grey / scale（bit） |
16bit |
16bit |
16bit |
|
Gross Weight (kg) |
130 (Estimated data,8pcs /Case) |
|
Outer Package Size |
1150*570*660mm (Estimated data,8pcs /Case) |
|
Packing Material |
Flight case |
