U-R10
10-Layer LED Mechanical Rotating Screen
1.Supports wireless control and remote, is easy to operate.

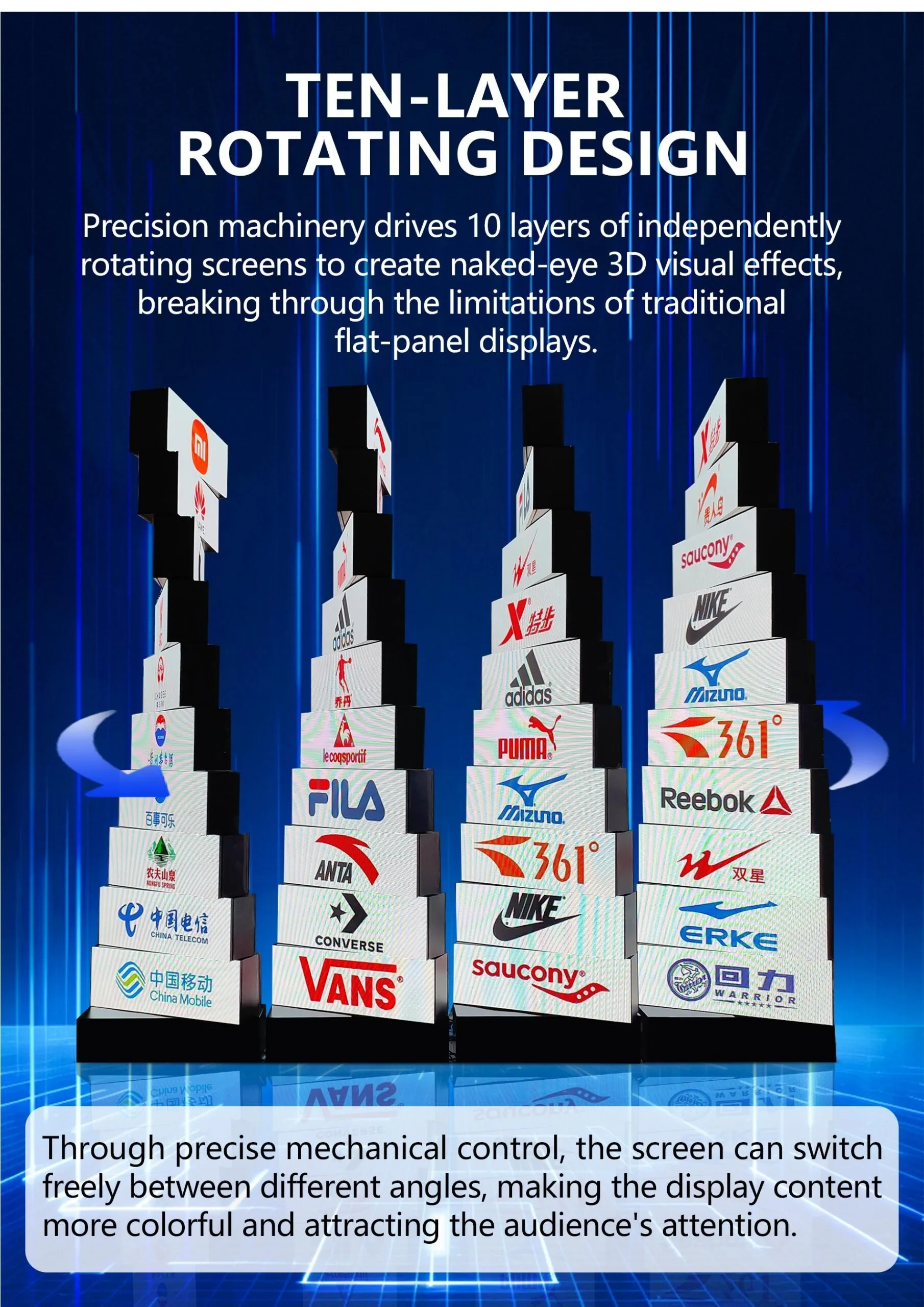

2.Precision machinery drives 10 layers of independently rotating screens.
3.Breaking through the limitations of traditional flat-panel displays.

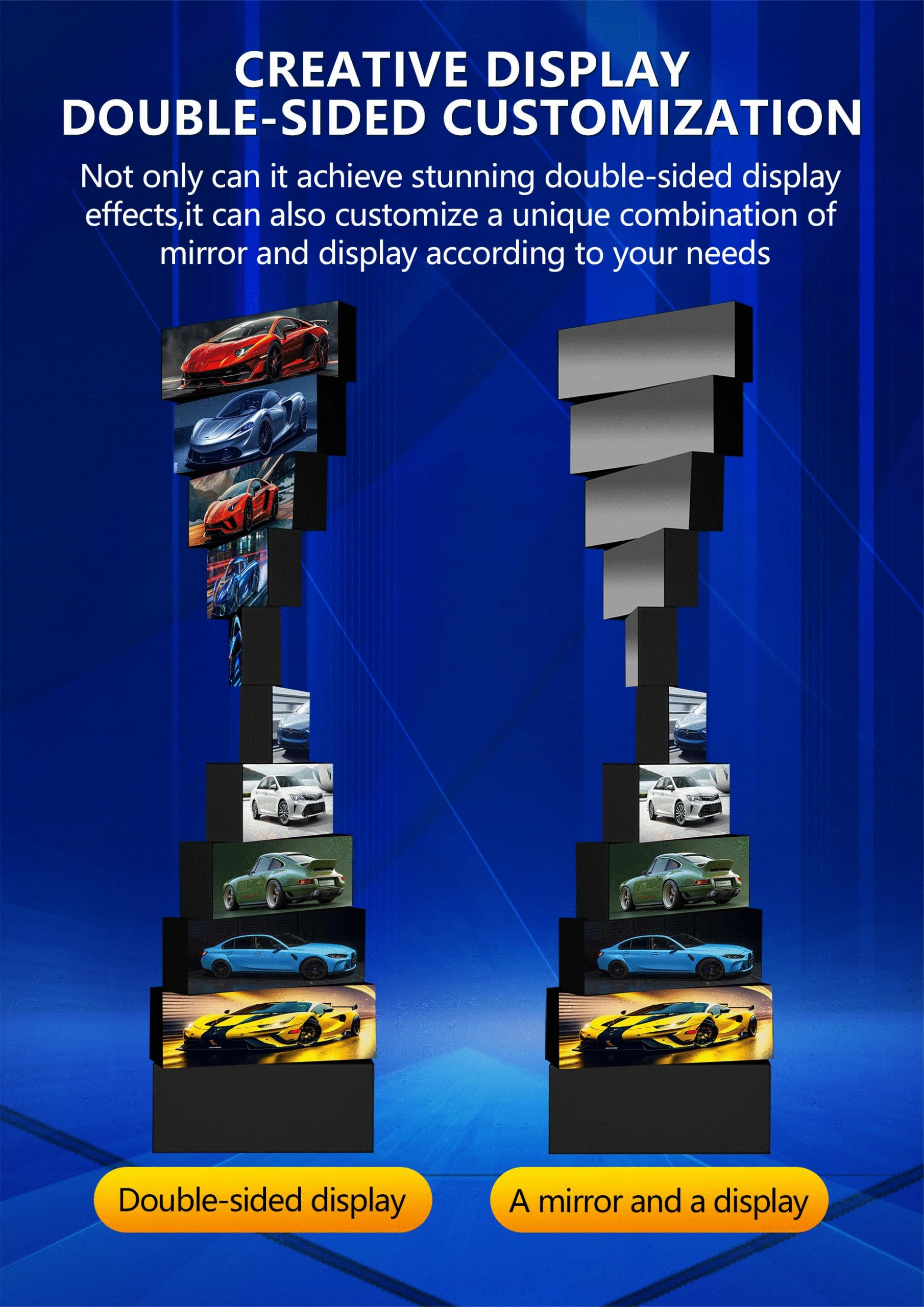

4.Not only can it achieve stunning double-sided display effects, it can also customize a unique combination of mirror and display according to your needs.

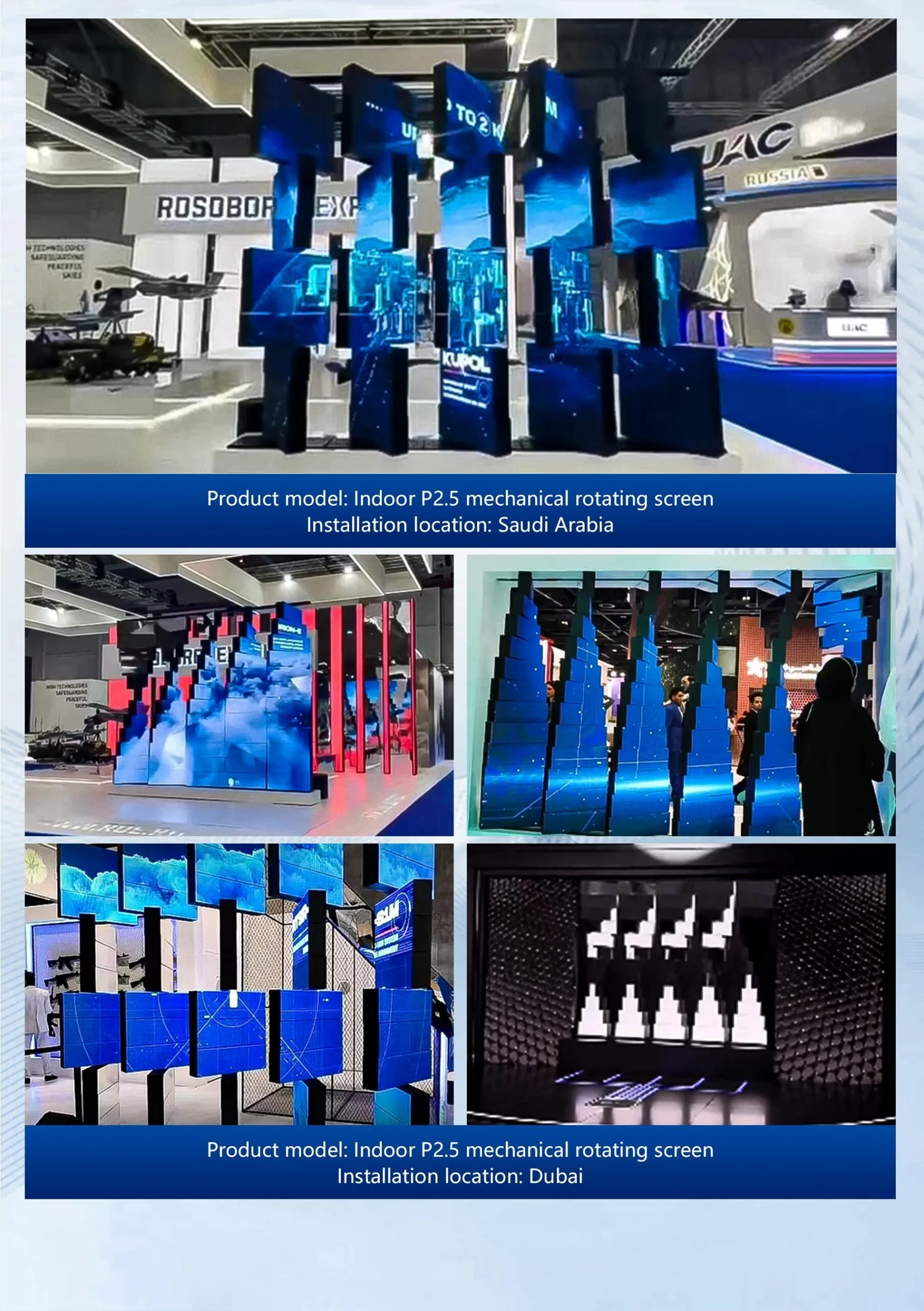

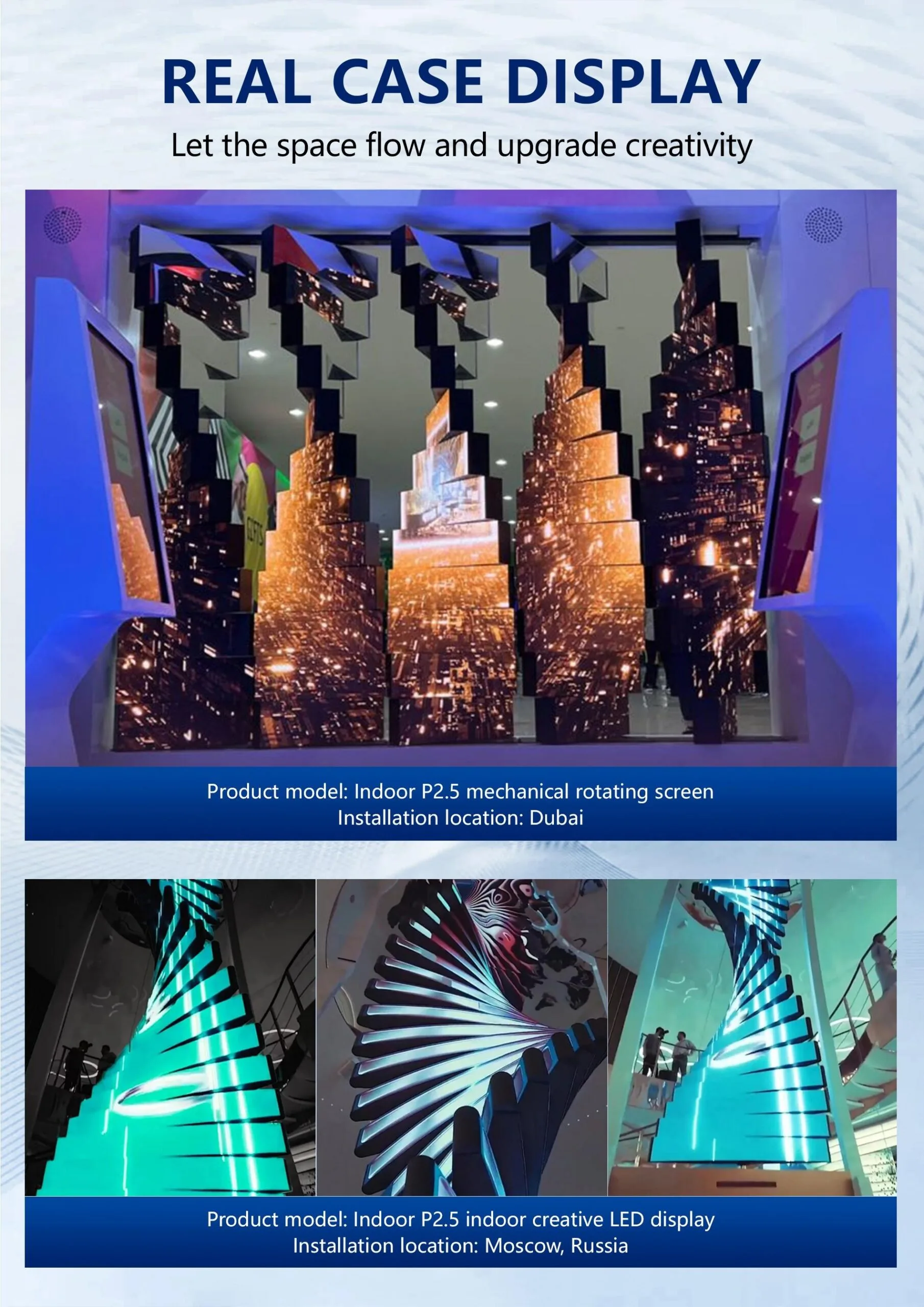

5.It can be used for advertising in public places such as shopping malls and exhibitions, brand activities, concerts, and other large-scale events.
|
U-R10 360° |
||||
|
Model |
P1.9 / P2.5 |
|||
|

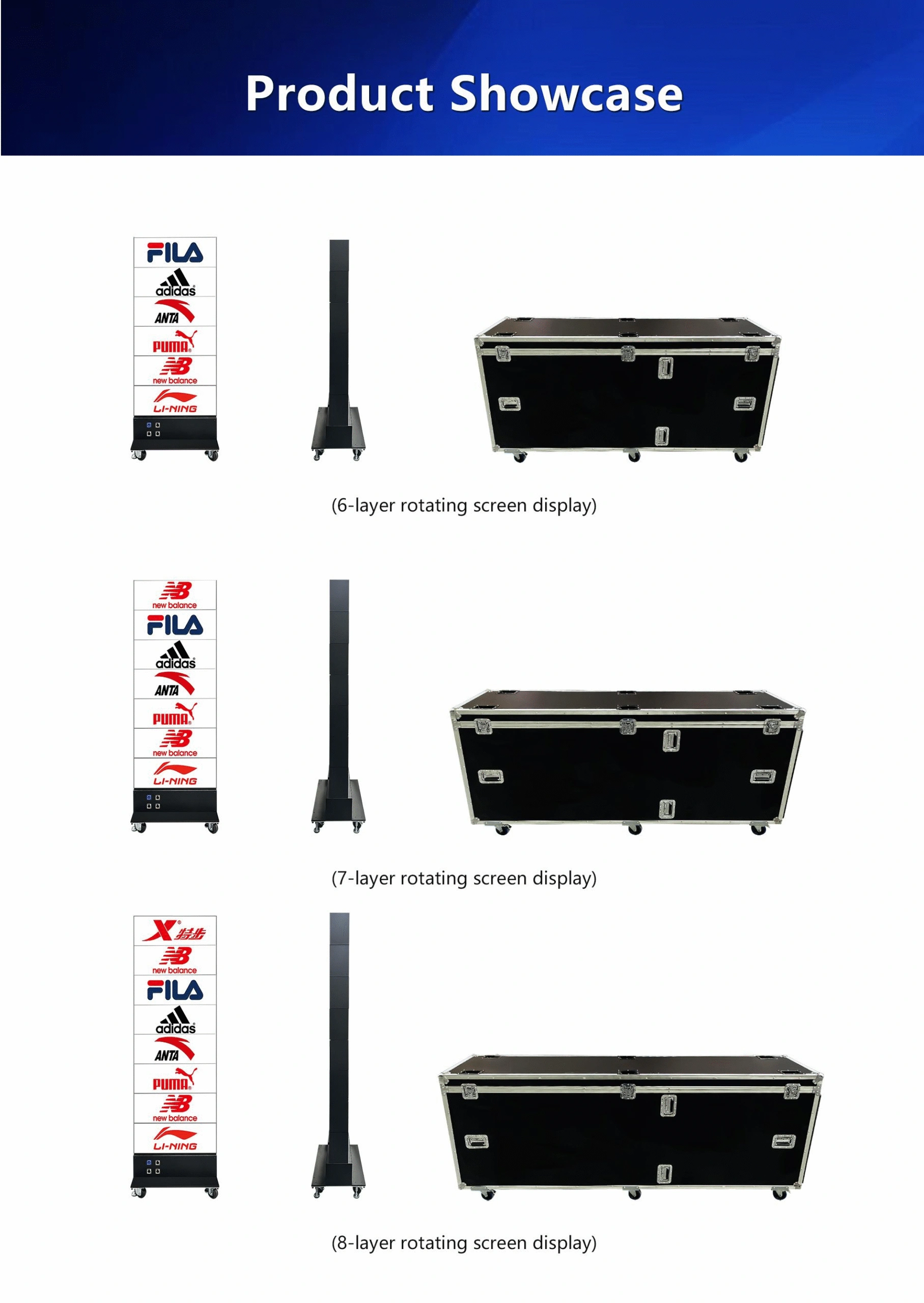

Number of Layers |
6 |
7 |
8 |
10 |
|
Single-sided screen size |
750*250mm |
750*250mm |
750*250mm |
750*250mm |
|
Dimension |
750*460*1830mm |
750*460*2080mm |
750*460*2330mm |
750*460*2860mm |
|
Base Dimension |
750*460*300mm |
750*460*300mm |
750*460*300mm |
750*460*300mm |
|
Refresh Rate |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
|
Brightness |
600-900 cd/㎡ |
600-900 cd/㎡ |
600-900 cd/㎡ |
600-900 cd/㎡ |
|
Rotation Mode |
Optional(different rotation mode can be selected depending on the screen requirements) |
|||
|
Rotation Speed |
Adjustable (running speed can be adjusted according to user or screen requirements) |
|||
|
Equipment Installation |
The equipment is equipped with a chassis, eliminating the need of a base foundation installation |
|||
|

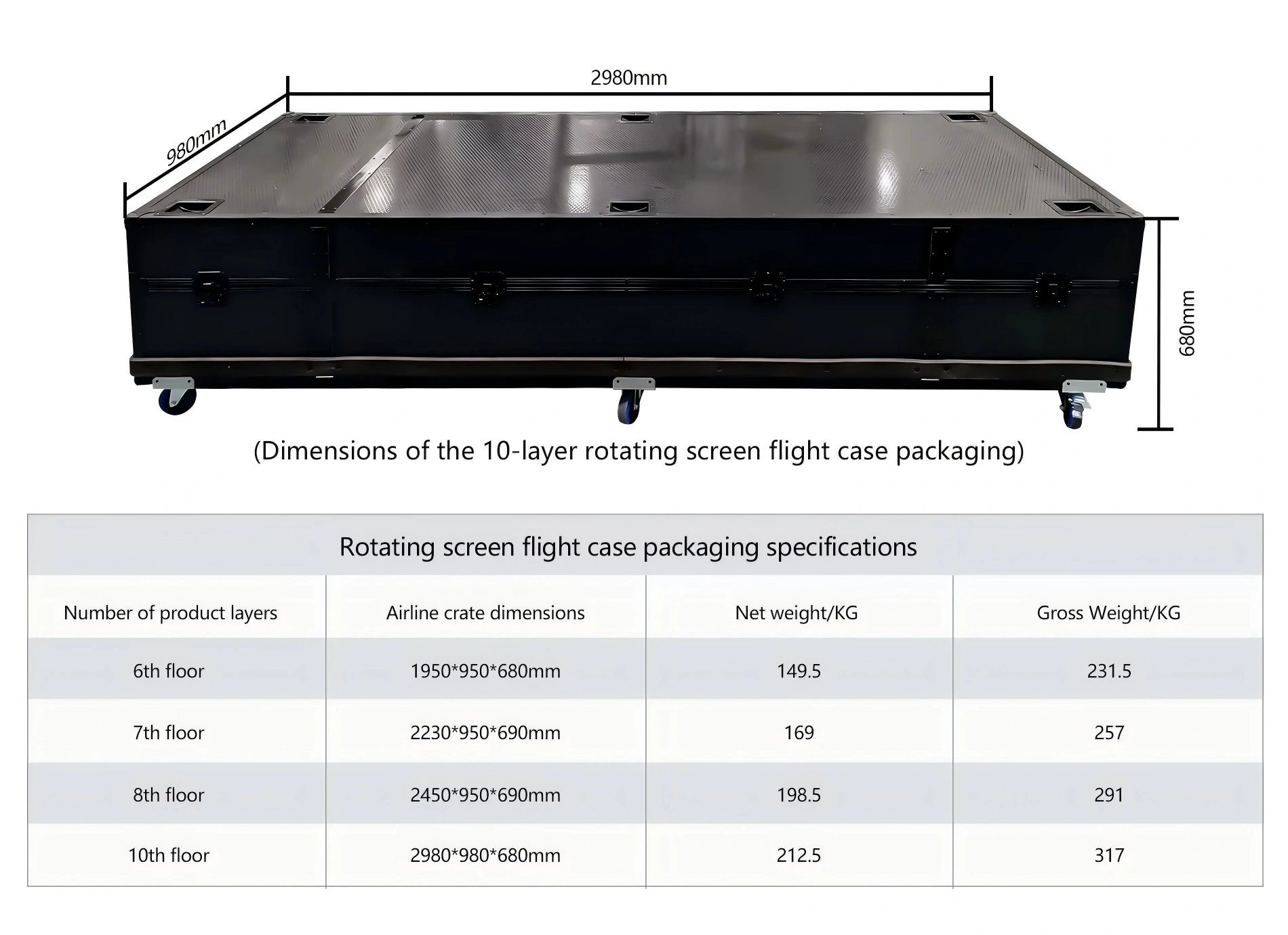

Flight Case Size |
1950*950*680 mm |
2230*950*690 mm |
2450*950*690 mm |
2980*980*680 mm |
|
Net Weight |
150 |
169 |
199 |
213 |
|
Gross Weight |
232 |
257 |
291 |
317 |
|
Application Environment |
Indoor / Outdoor |
Indoor / Outdoor |
Indoor / Outdoor |
Indoor / Outdoor |
|

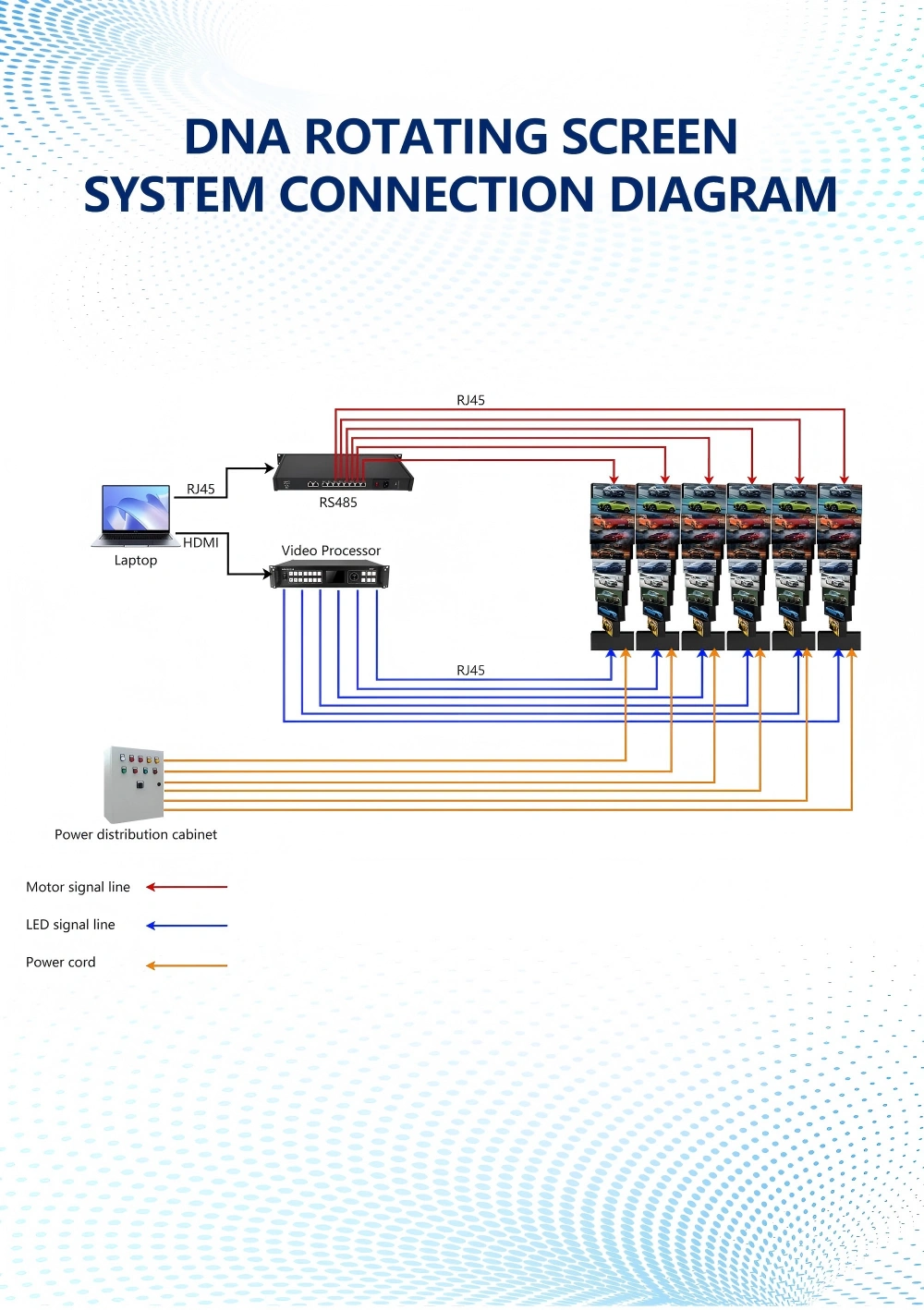

Control Mode |
PC / APP |
PC / APP |
PC / APP |
PC / APP |
