U-Max

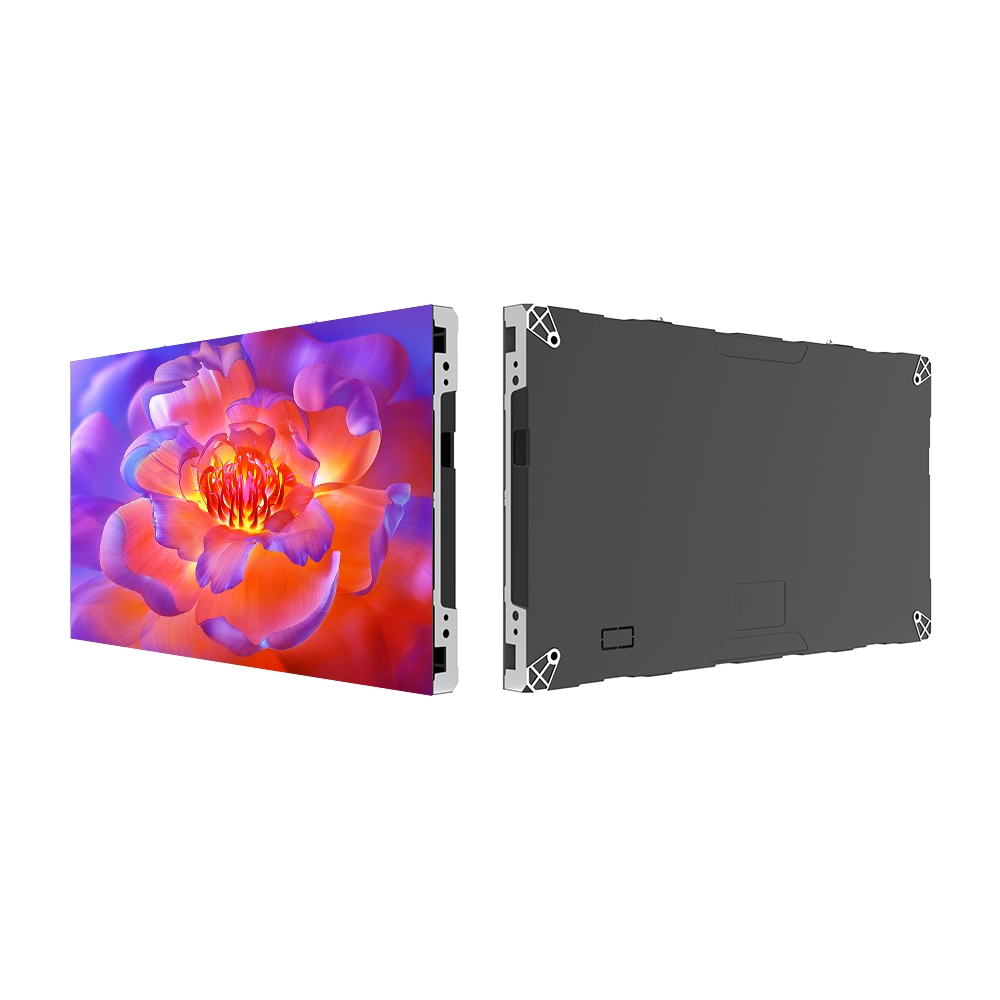

Indoor Front Maintenance Wall-mounted LED Display
1.Ready stock: Ready stock in warehouse;

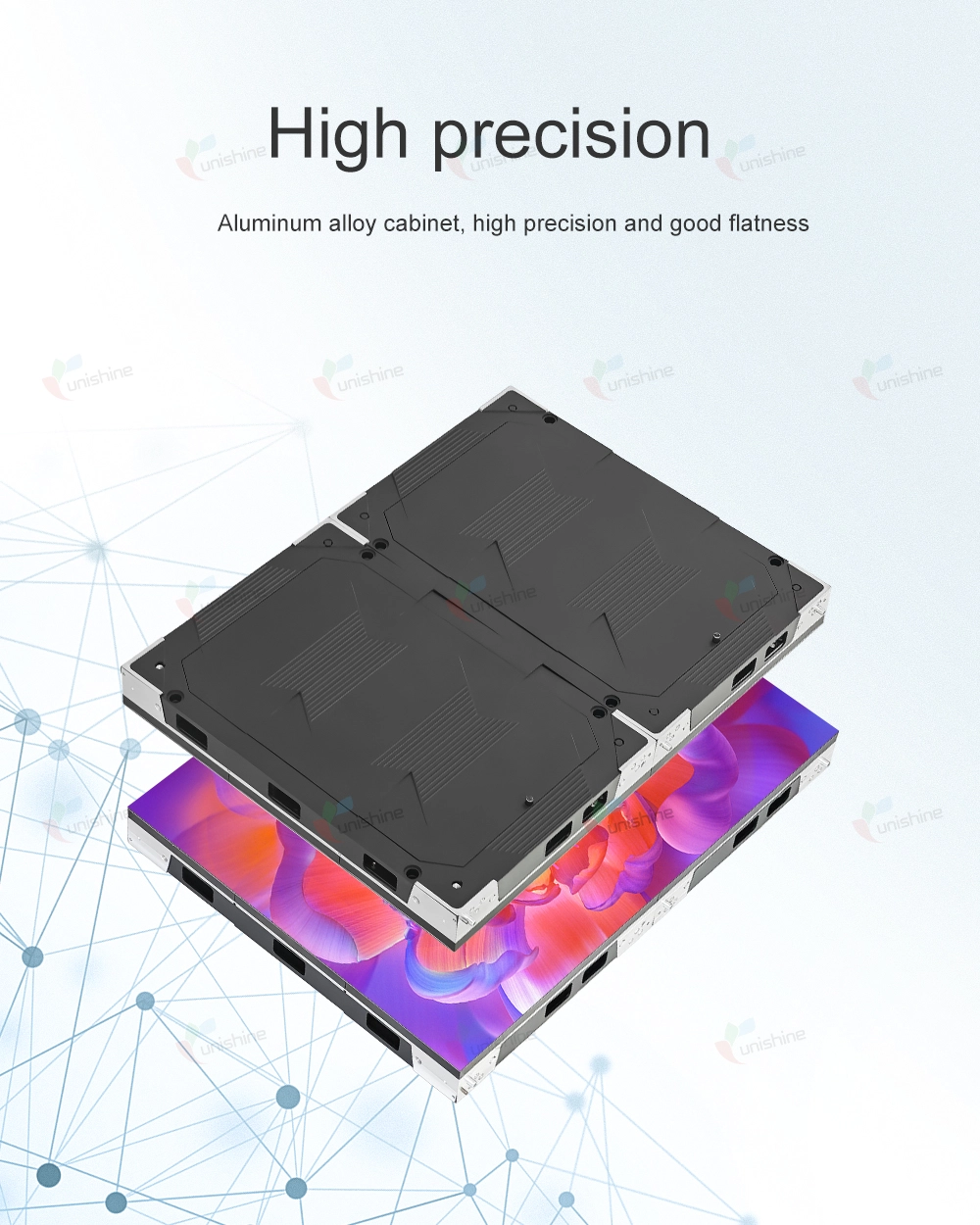

2.High precision: Die-cast aluminum cabinet, high precision and good flatness;

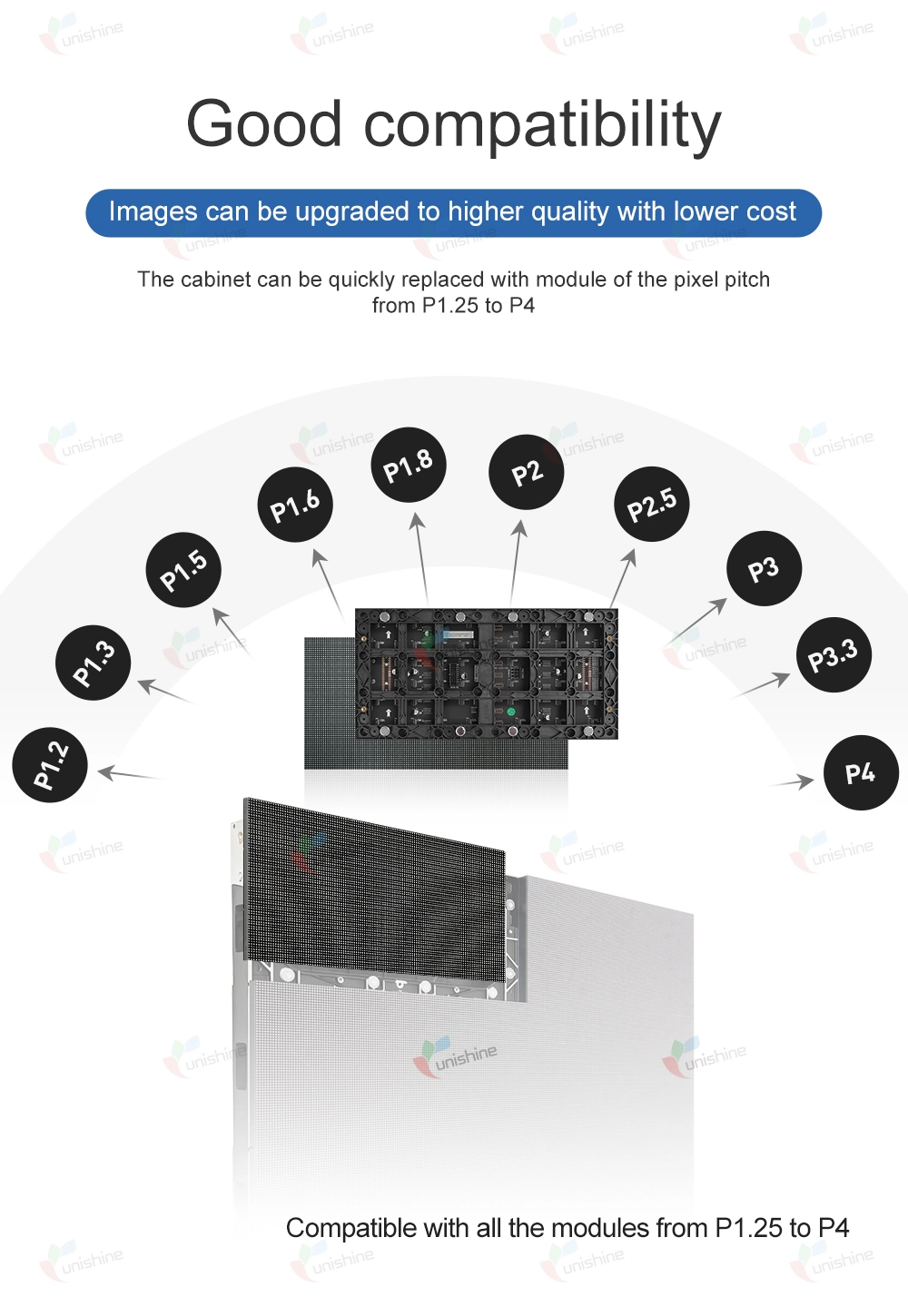

3.Good compatibility: The cabinet can be quickly replaced with module of the pixel pitch from P1.25 to P4, and images can be upgraded to higher quality with lower cost;

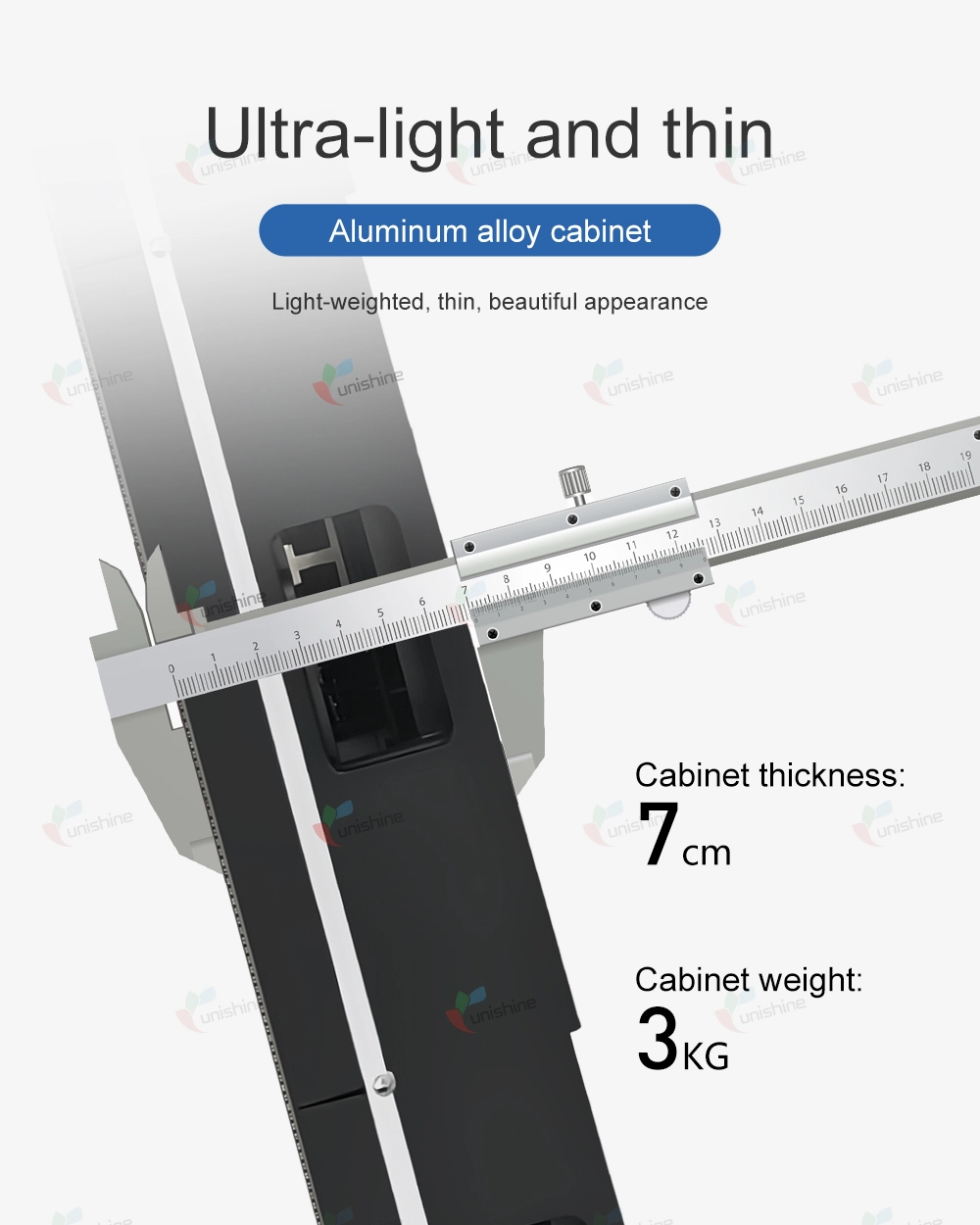

4.Ultra-light and thin: Die-cast aluminum cabinet, light-weighted, thin, beautiful appearance;

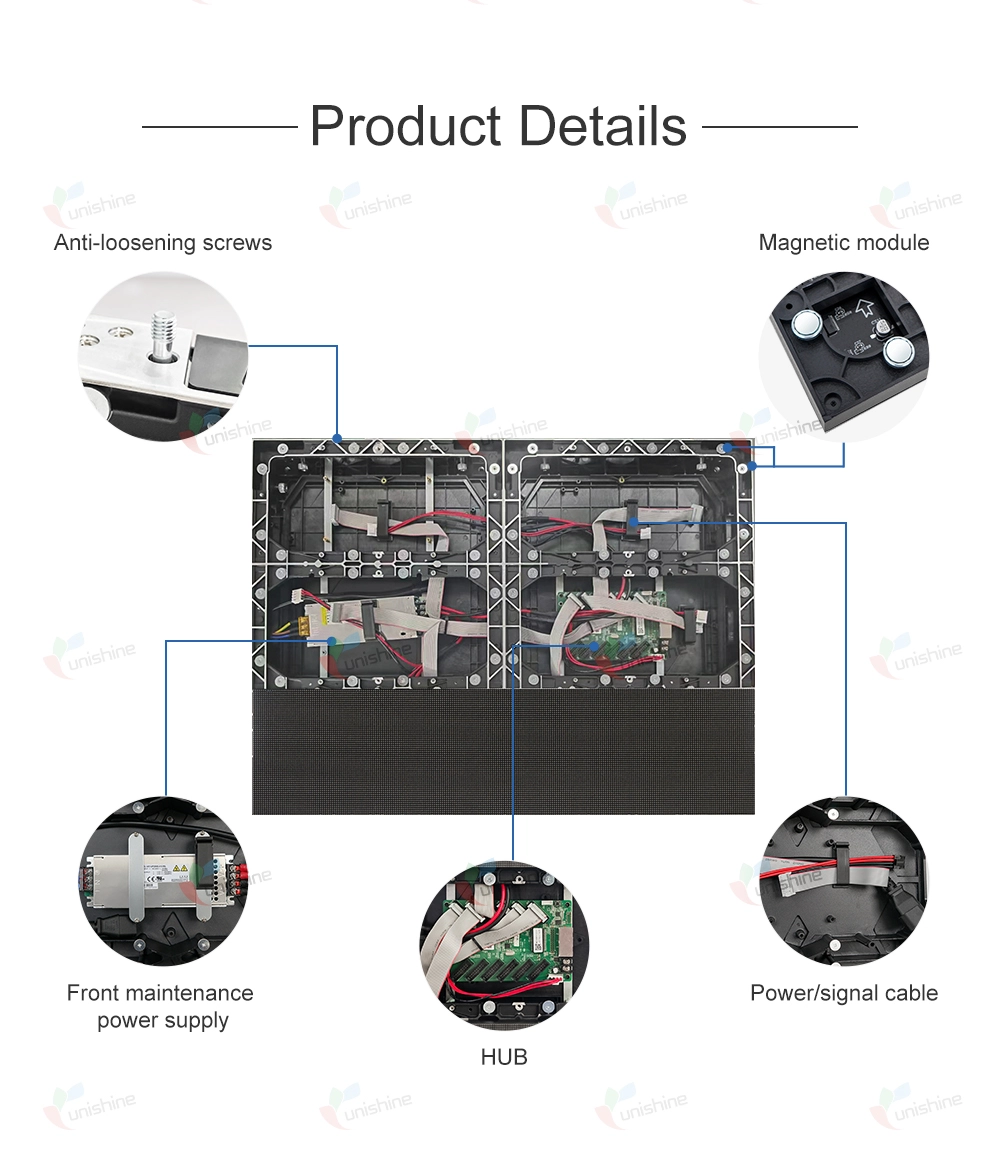

5.Wall-mounted installation: modules, power supplies, and system cards can be fully maintained from the front; space-saving, suitable for high-end commercial display occasions;

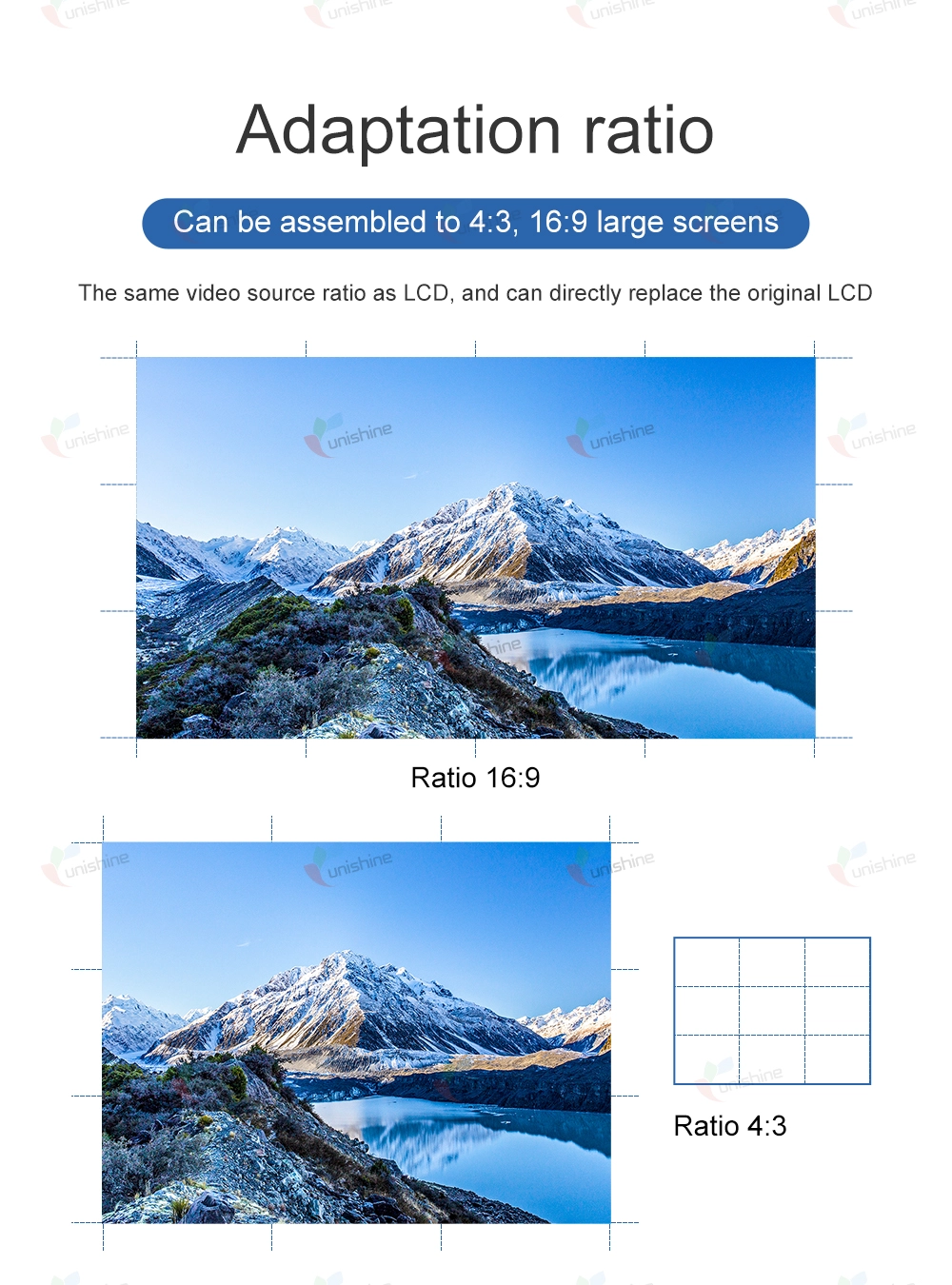

6.Ratio: Can be assembled to 4:3, 16:9 large screens; the same video source ratio as LCD, and can directly replace the original LCD.

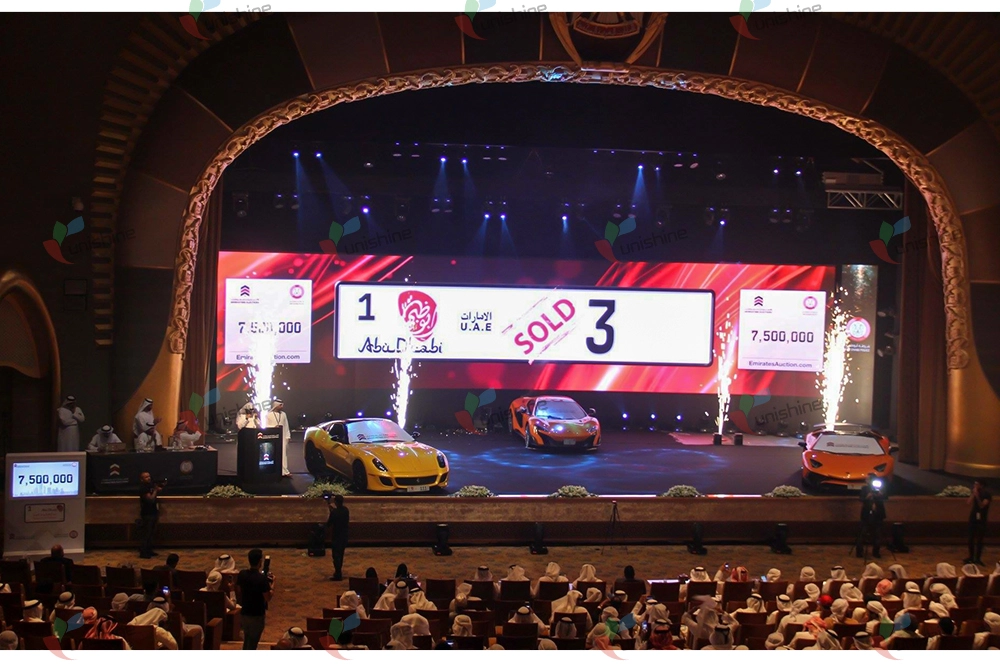

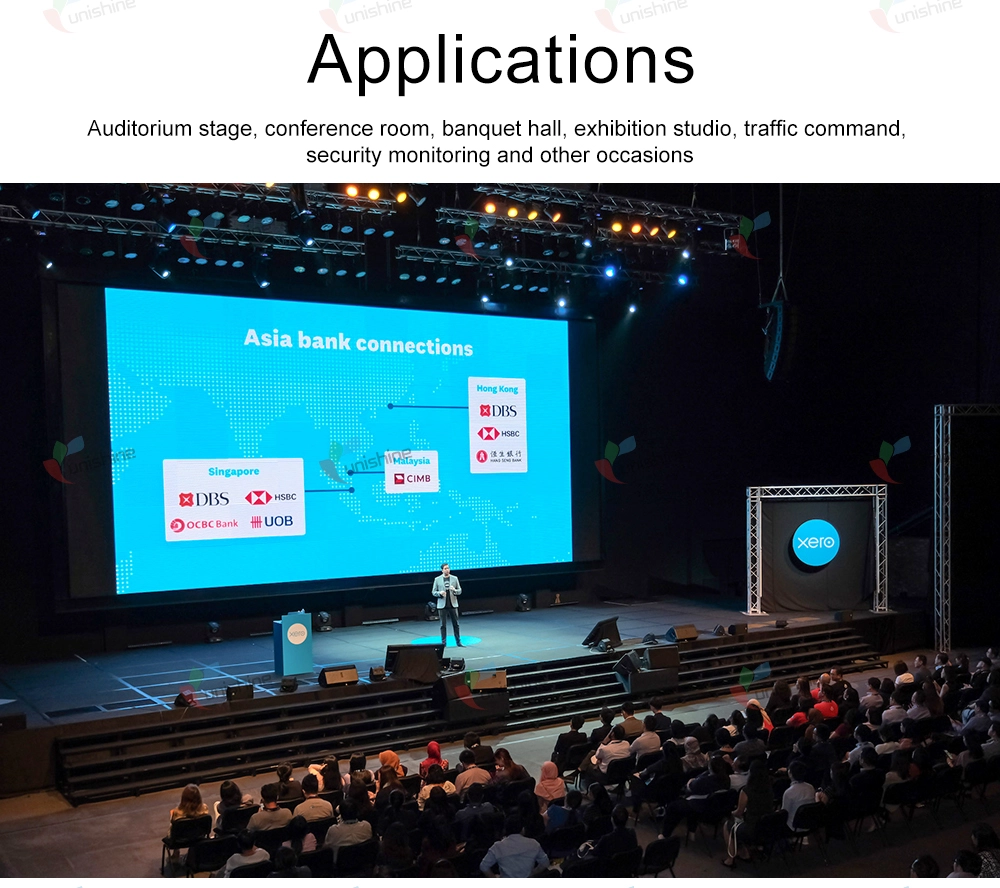

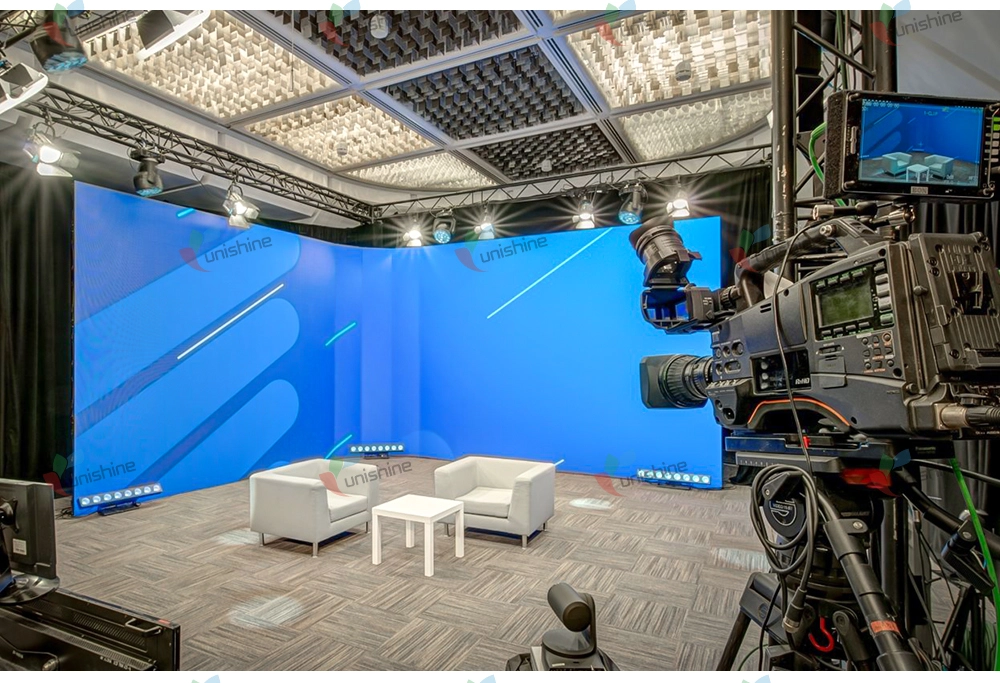

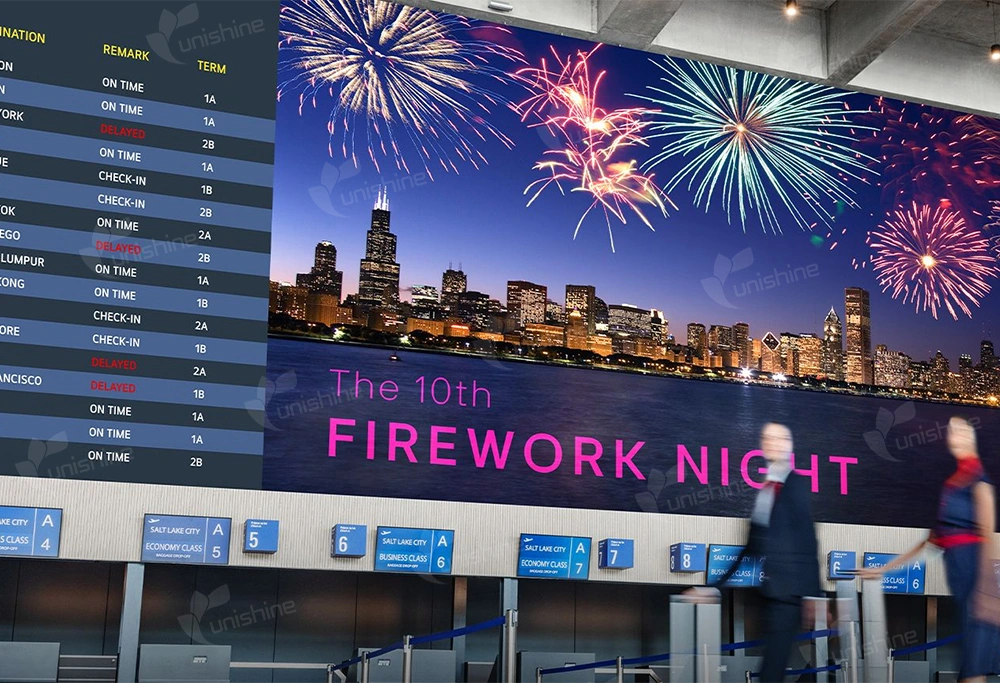

7.Widely used in auditorium stage, conference room, banquet hall, exhibition studio, traffic command, security monitoring and other occasions.
|

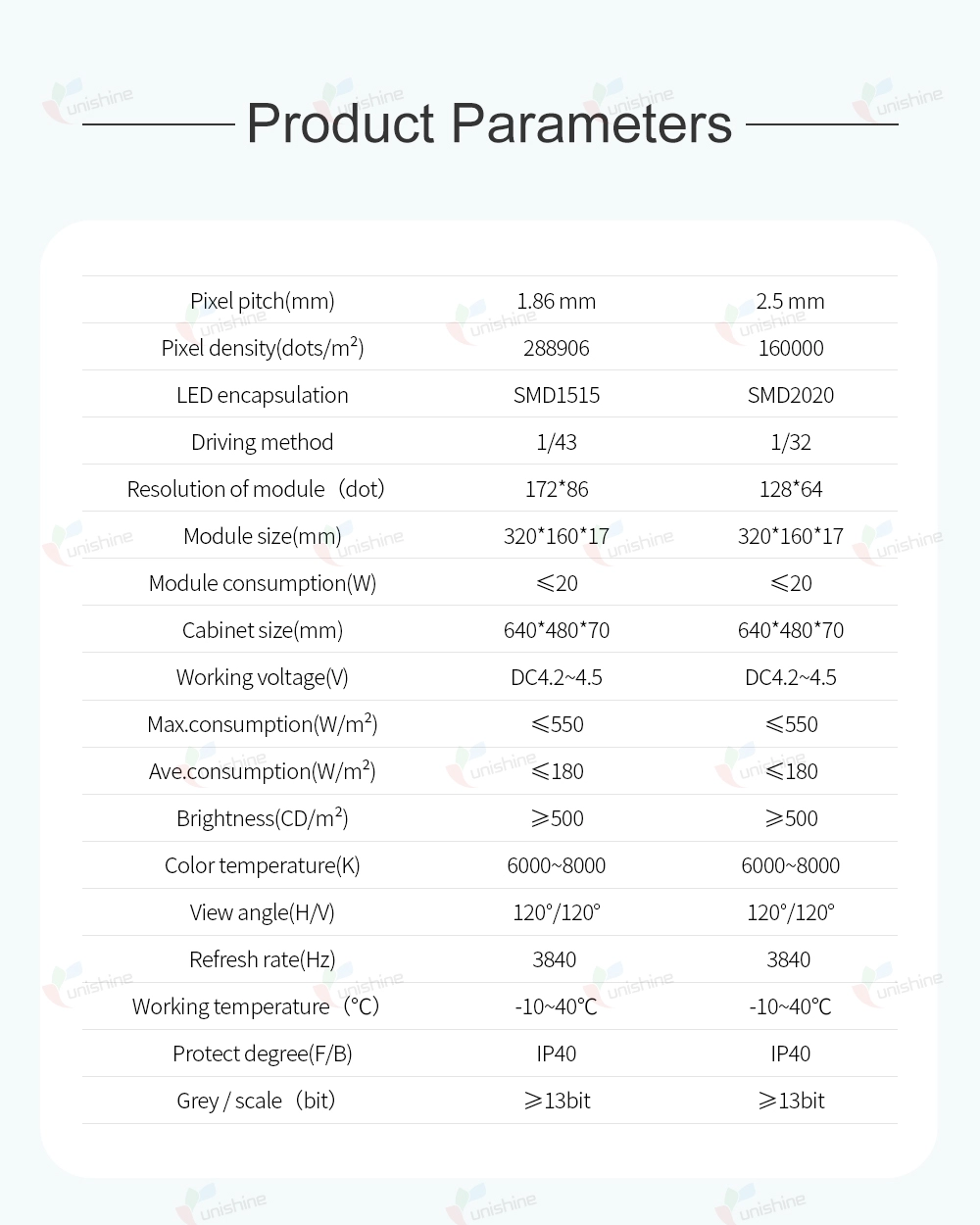

U-MAX |
||
|
Pixel pitch(mm) |
1.86 mm |
2.5 mm |
|
Pixel density(dots/m²) |
288906 Dots/㎡ |
160000 Dots/㎡ |
|
LED encapsulation |
SMD1515 |
SMD2020 |
|
Driving method |
1/43S |
1/32S |
|
Resolution of module（dot） |
172*86 Dots |
128*64 Dots |
|
Module size(mm) |
320*160 mm |
320*160 mm |
|
Module consumption(W) |
20W |
20W |
|
Working voltage(V) |
DC4.6V |
DC4.6V |
|
Max.consumption(W/m²) |
550W/m² |
5500W/m² |
|
Ave.consumption(W/m²) |
180W/m² |
180W/m² |
|
Brightness(CD/m²) |
600 CD/m² |
600 CD/m² |
|
Color temperature(K) |
6000K-8000K |
6000K-8000K |
|
View angle(H/V) |
H：120°；V：120° |
H：120°；V：120° |
|
Refresh rate(Hz) |
3840Hz |
3840Hz |
|
Working temperature（℃） |
-10~40℃ |
-10~40℃ |
|
Protect degree(F/B) |
IP40 |
IP40 |
|
Grey / scale（bit） |
14bit |
14bit |
|
Gross Weight（kg） |
35kg （Estimated data,6pcs /Case） |
|
Outer Package Size |
720*630*560mm （Estimated data,6pcs /Case） |
|

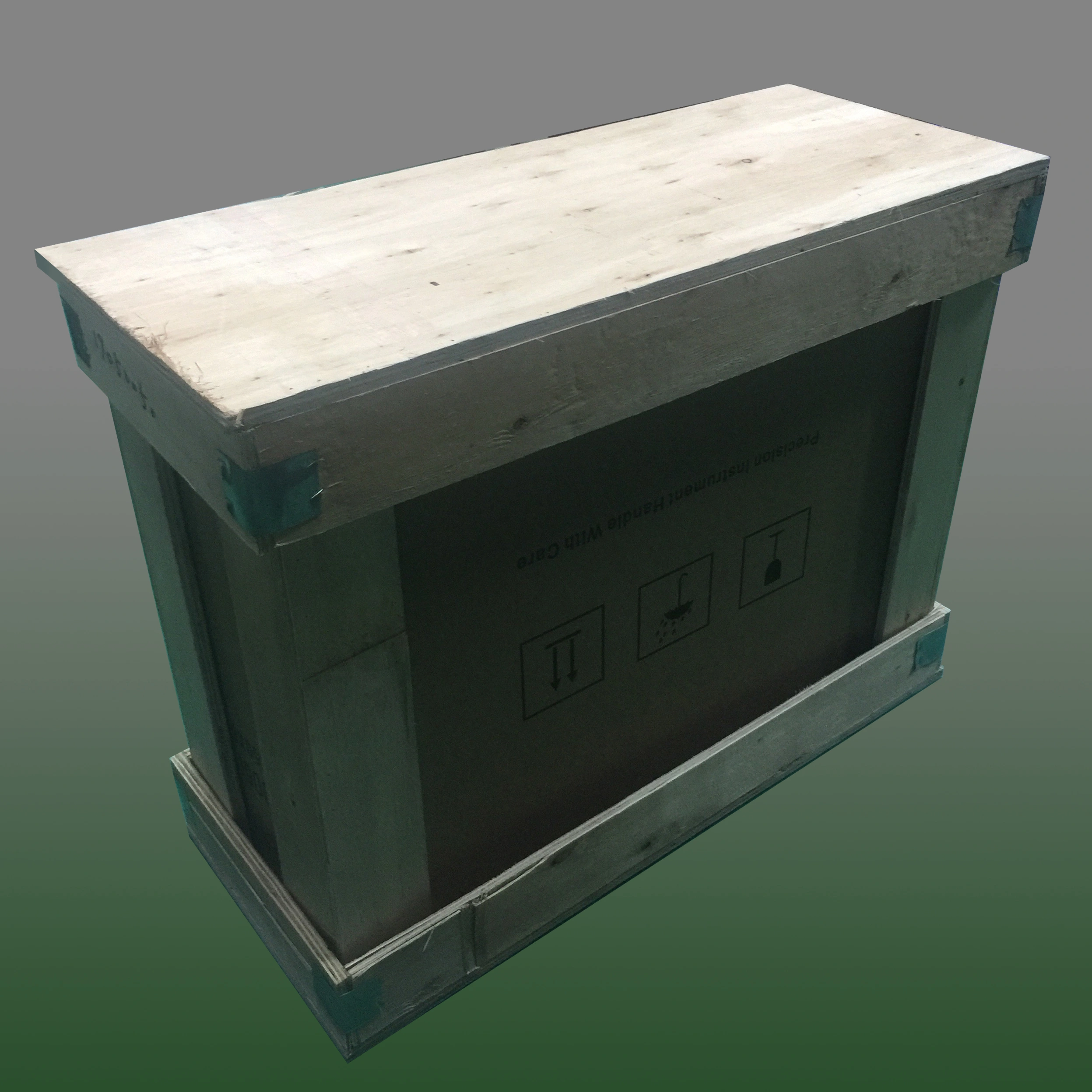

Packing Material |
Wooden bracket + paper packaging + pearl cotton * Packaging for reference only, |
