U-IM
Full Color Indoor LED Module
1.High-quality lamps, high lamp brightness utilization, while ensuring the service life of the lamps and high-quality plastic parts;
2.High reach can achieve good display effects;
3.Light weight, easy to install and sensitive;
4.Single point and single lamp maintenance is possible with low cost
5.Using constant current mode to drive LED, the light is uniform and the power consumption is low.
|
U-IM |
||||
|
Pixel pitch(mm) |
1.53mm |
1.86 mm |
2.0 mm |
2.5 mm |
|
Pixel density(dots/m²) |
422500 dots/㎡ |
288906Dots/㎡ |
250000Dots/㎡ |
160000Dots/㎡ |
|
LED encapsulation |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2020 |
|
Driving method |
1/52S |
1/43S |
1/40S |
1/32S |
|
Resolution of module（dot） |
208*104 Dots |
172*86 Dots |
160*80 Dots |
128*64 Dots |
|

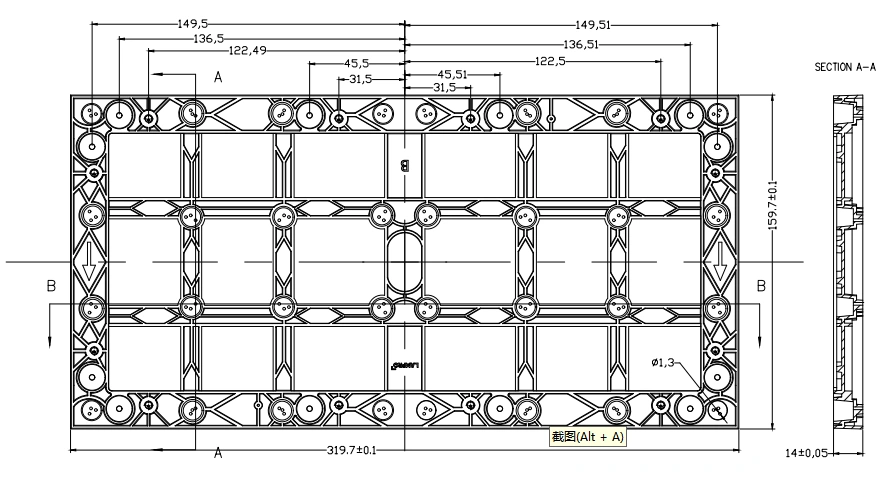

Module size(mm) |
320*160*16.2 mm |
320*160*16.2 mm |
320*160*16.2 mm |
320*160*16.2 mm |
|
Module consumption(W) |
≤22W |
≤20W |
≤20W |
≤20W |
|
Working voltage(V) |
DC4.2~5V |
DC4.2~5V |
DC4.2~5V |
DC4.2~5V |
|
Driving Method |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
|
Panel Current |
≤5A |
≤4A |
≤4A |
≤4A |
|
Brightness(CD/m²) |
≥550cd/㎡ |
≥550cd/㎡ |
≥550cd/㎡ |
≥550cd/㎡ |
|
View angle(H/V) |
H：160°；V：140° |
H：160°；V：140° |
H：160°；V：140° |
H：160°；V：140° |
|
Refresh rate(Hz) |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
Working temperature（℃) |
-10~40℃ |
-10~40℃ |
-10~40℃ |
-10~40℃ |
|
Protect degree(F/B) |
IP40 |
IP40 |
IP40 |
IP40 |
