U-FP
Foldable Splicing Advertising Poster LED Display

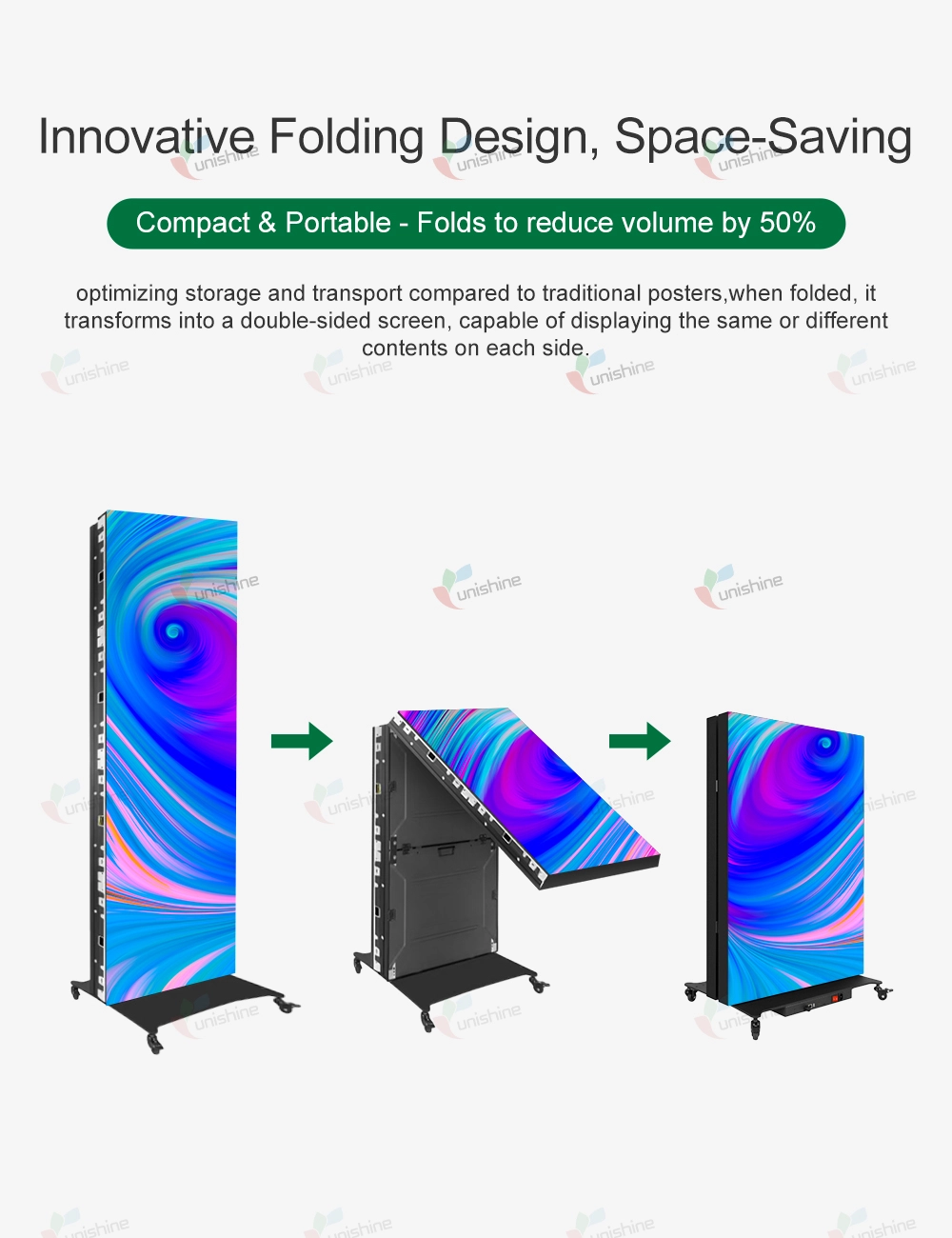

1.Inovative folding design, spave-saving;
2.Plug and Play, no any installtion needed;

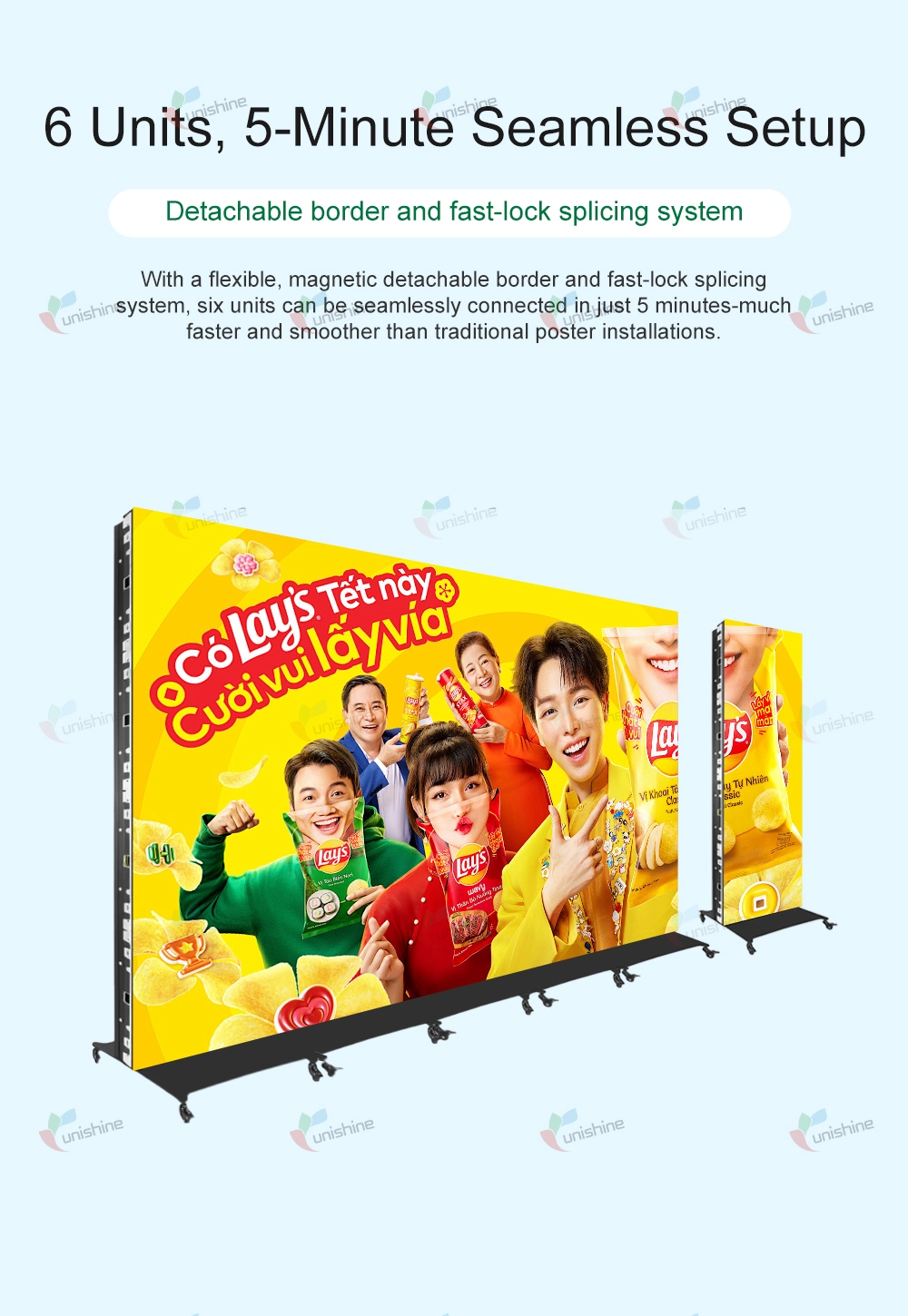

3.6 units, 5-minute seamless setup;
4.GOB protection tech, durable and low maintenance;

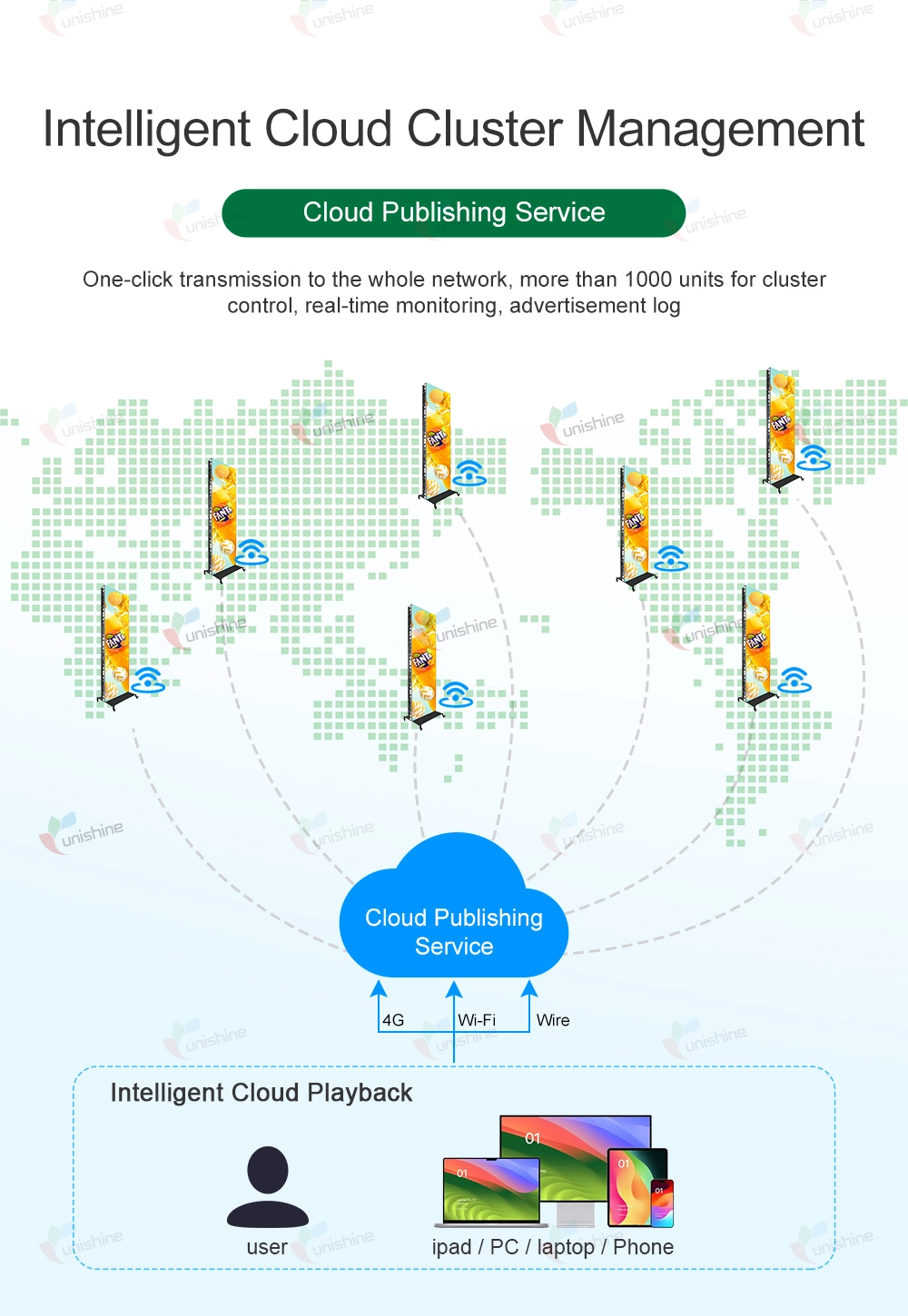

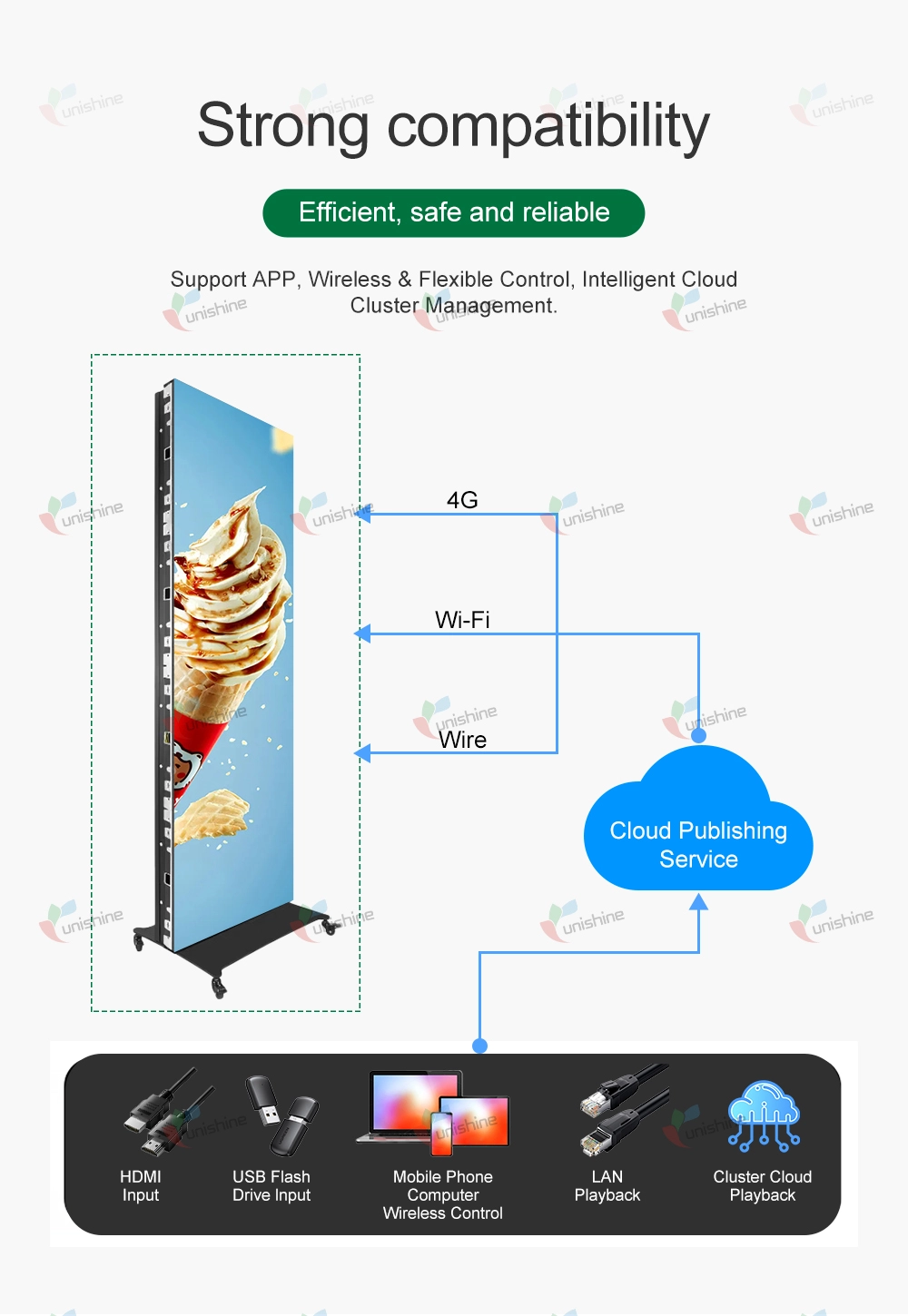

5.Strong compatibility, support APP, wireless and cloud control.
|

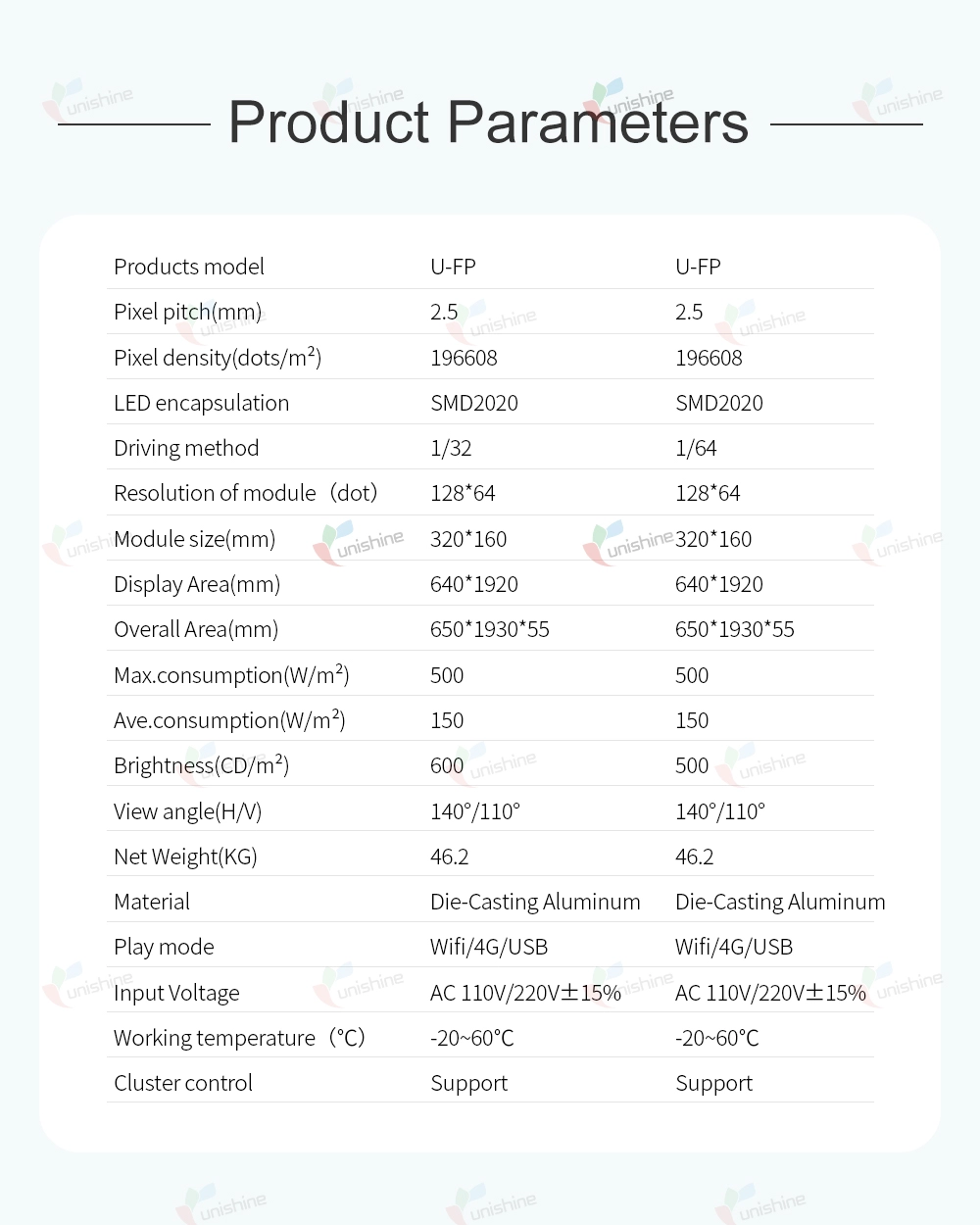

U-FP |
||
|
Pixel pitch(mm) |
2.5 |
2.5 |
|
Pixel density(dots/m²) |
196608 |
196608 |
|
LED encapsulation |
SMD2020 |
SMD2020 |
|
Driving method |
1/32 |
1/64 |
|
Resolution of module（dot） |
128*64 |
128*64 |
|
Module size(mm) |
320*160 |
320*160 |
|
Display Area(mm) |
640*1920 |
640*1920 |
|
OverallArea(mm) |
650*1930*55 |
650*1930*55 |
|
Max.consumption(W/m²) |
≤500 |
≤500 |
|
Ave.consumption(W/m²) |
≤150 |
≤150 |
|
Brightness(CD/m²) |
600 |
600 |
|
View angle(H/V) |
140°/110° |
140°/110° |
|
Refresh rate(Hz) |
3840 |
3840 |
|
Working temperature（℃） |
-20~60℃ |
-20~60℃ |
|
Protect degree(F/B) |
IP40 |
IP40 |
|
Grey / scale（bit） |
≥14 |
≥14 |
|
Material |
Die-casting Aluminum |
Die-casting Aluminum |
