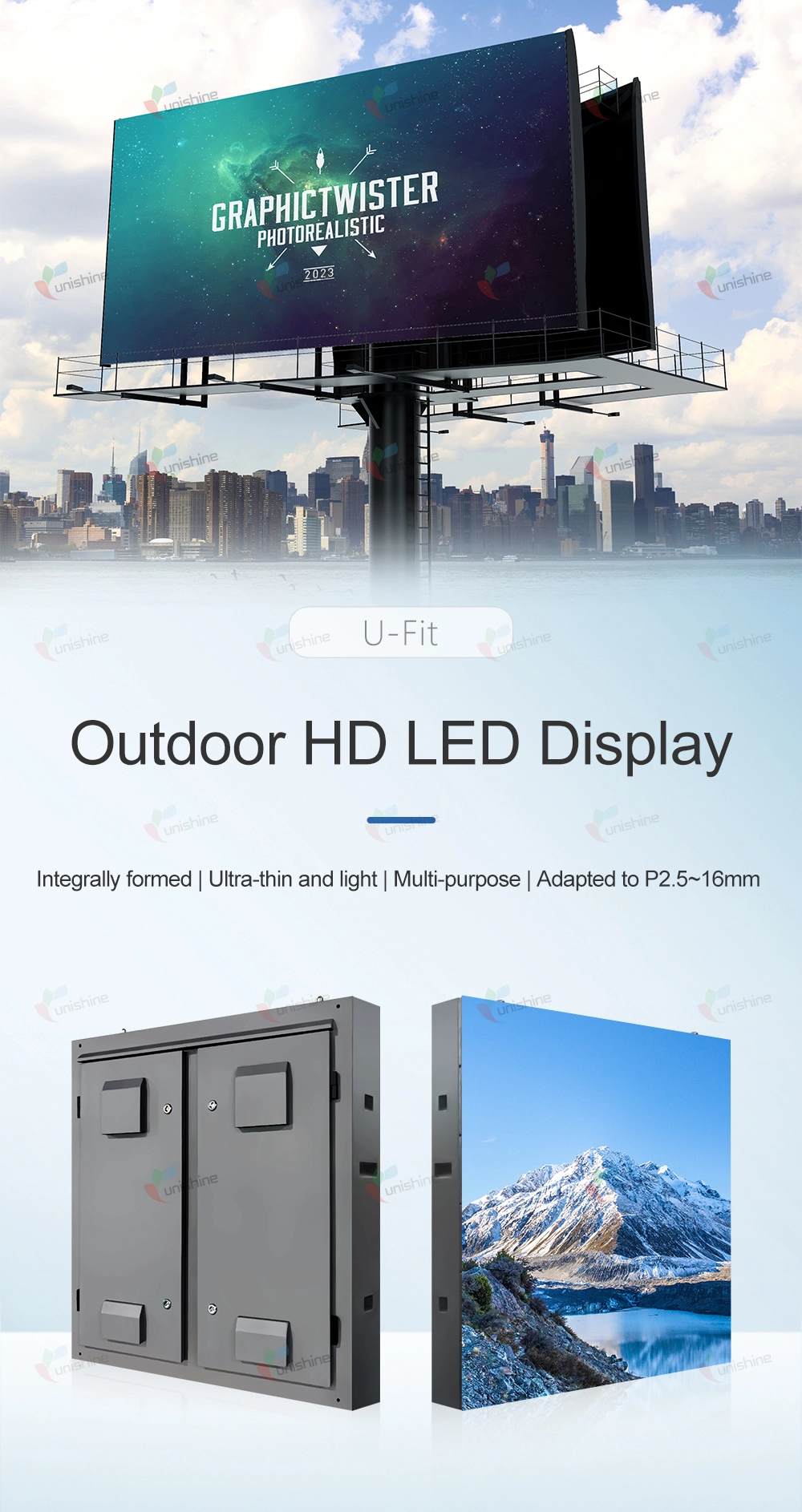

U-Fit
Outdoor HD LED Display
1.Adopting a new structural design, lightweight, beautiful and no deformation, easy and flat assemble;
2.Brightness 6000CD/㎡, the picture is still clear under strong light;

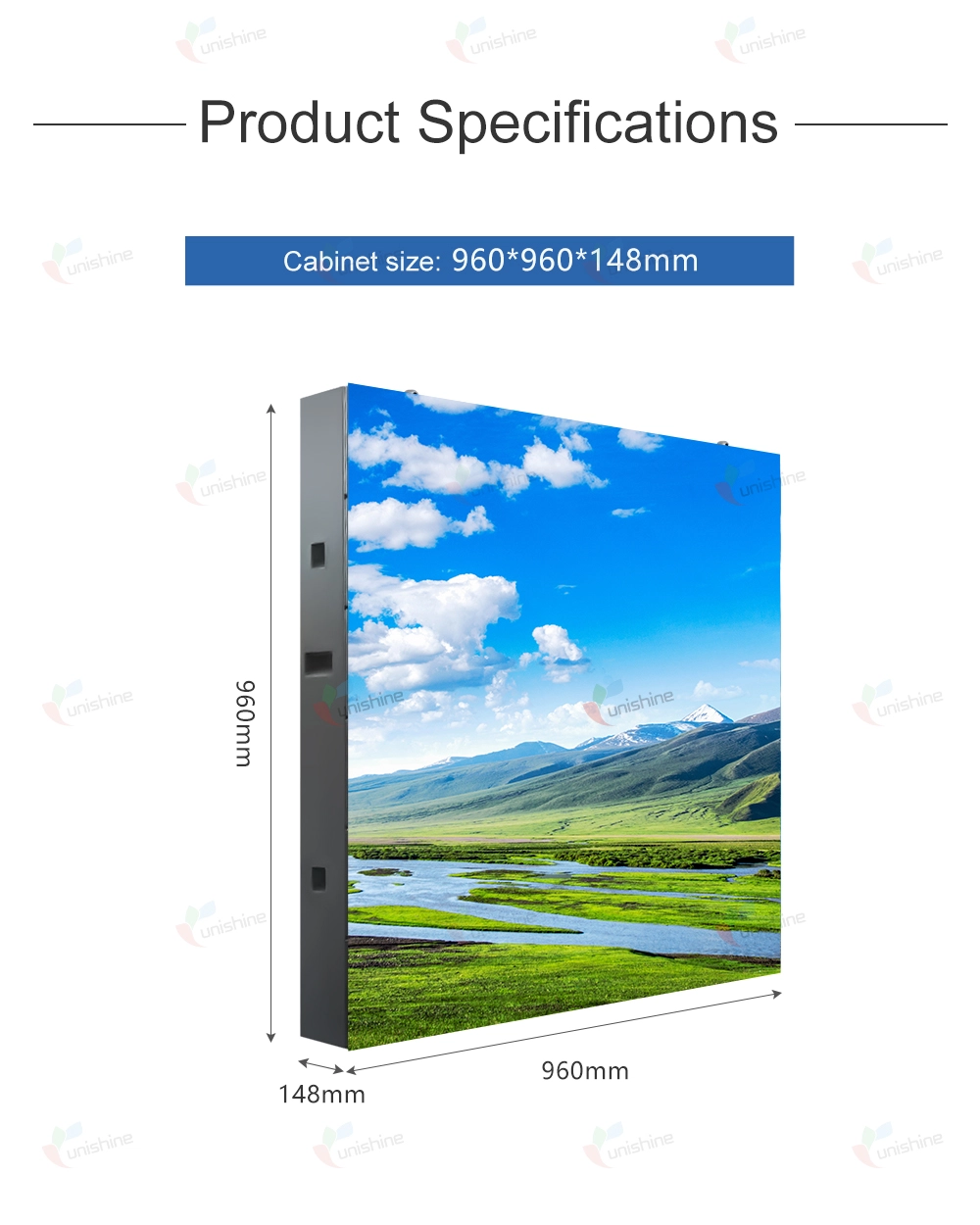

3.The cabinet is adapted to P2.5~P16 modules, no need to change the cabinet for upgrade, saving manpower and cabinet costs;

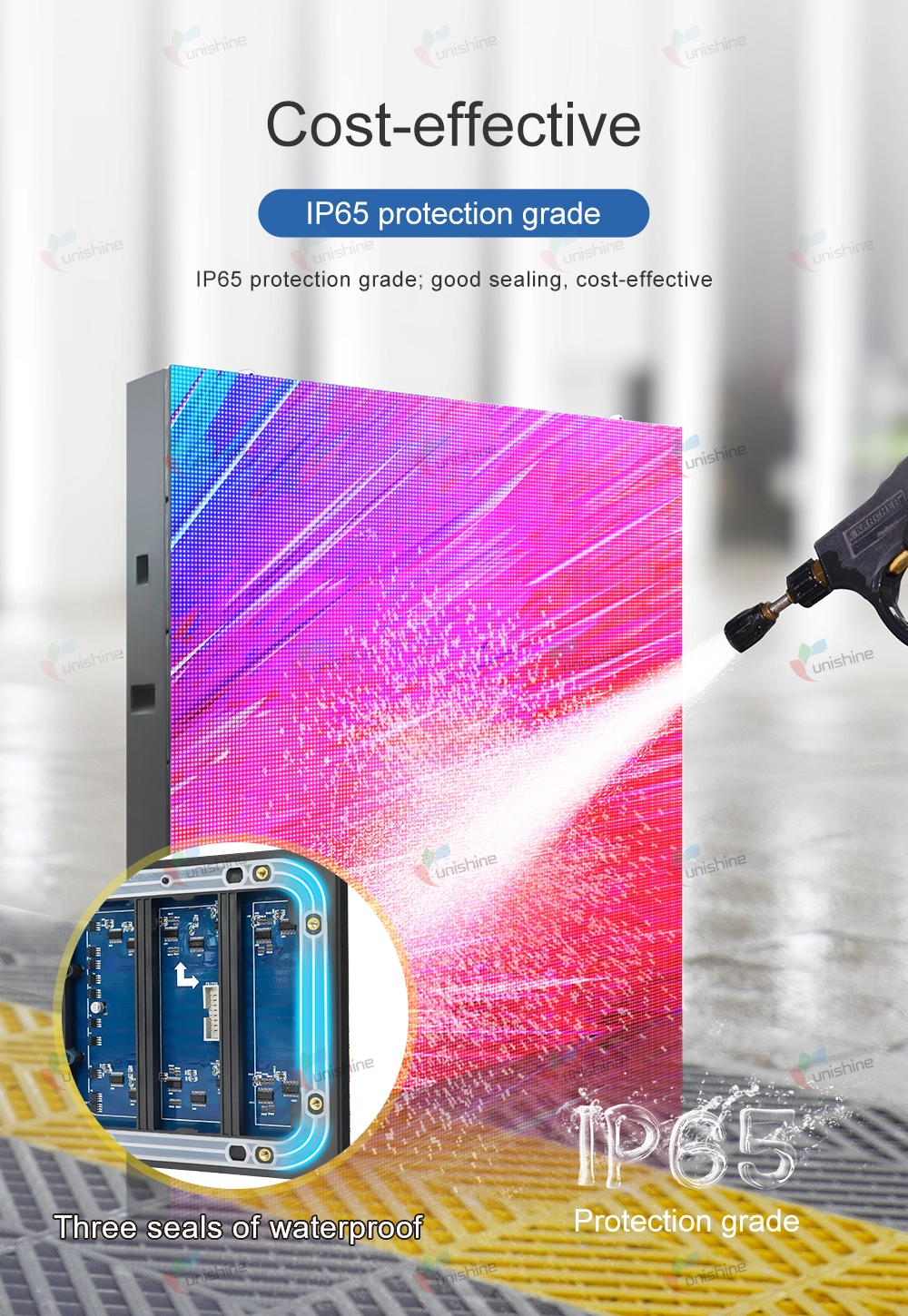

4.IP65 protection grade; good sealing, cost-effective;
5.Integrally formed;
6.Ultra-thin and light.
|

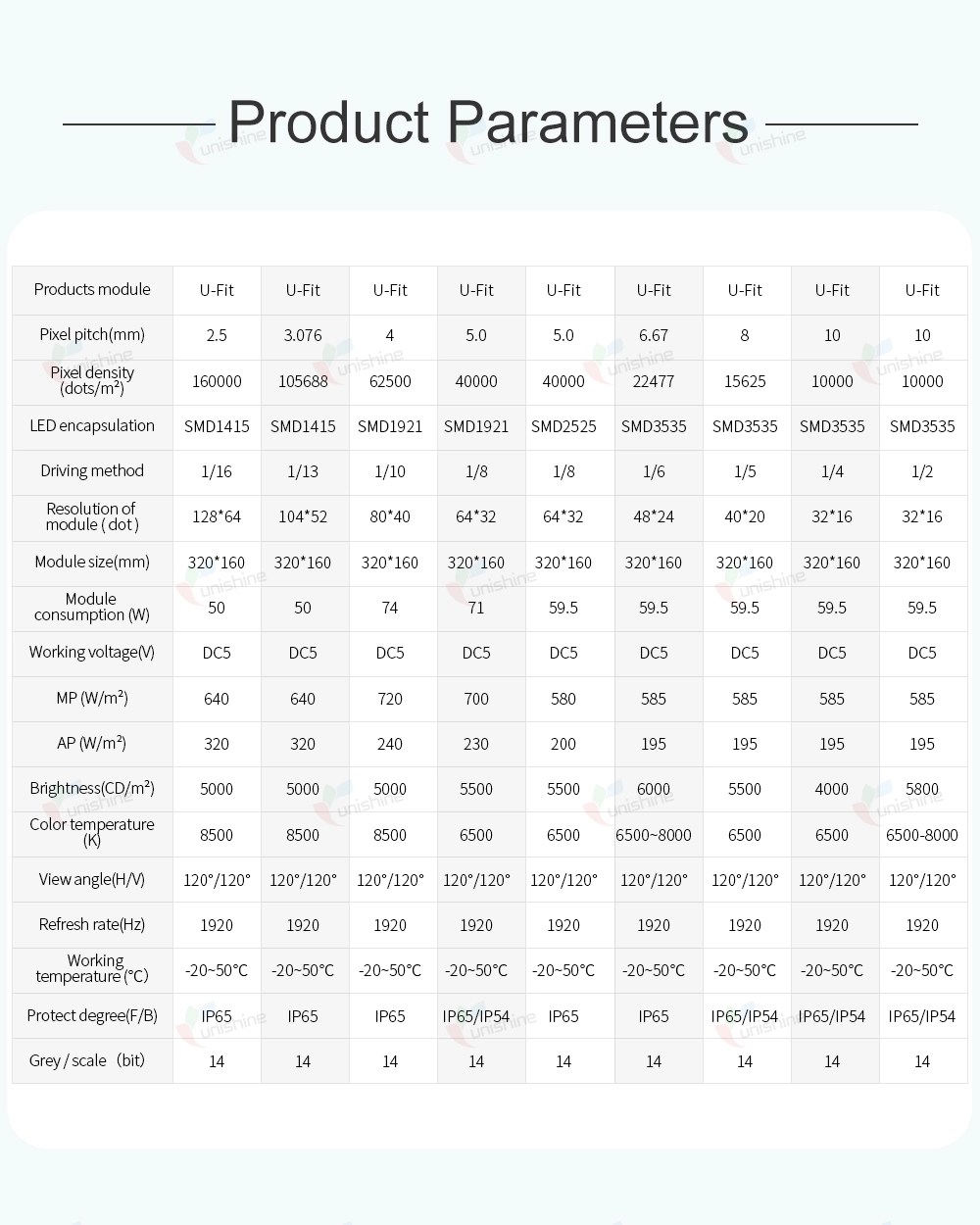

U-Fit |
||||||
|
Pixel pitch(mm) |
4 |
5 |
6.67 |
8 |
10 |
10 |
|
Pixel density(dots/m²) |
62500 |
40000 |
22477 |
15625 |
10000 |
10000 |
|
LED encapsulation |
SMD1921 |
SMD1921 |
SMD3535 |
SMD3535 |
SMD3535 |
DIP346 |
|
Driving method |
1/10 |
1/8 |
1/6 |
1/4 |
1/2 |
1/4 |
|
Resolution of module（dot） |
80*40 |
64*32 |
48*24 |
40*20 |
32*16 |
32*16 |
|
Module size(mm) |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
|
Module consumption(W) |
16 |
16 |
16 |
16 |
16 |
12 |
|
Working voltage(V) |
DC5 |
DC5 |
DC5 |
DC5 |
DC5 |
DC5 |
|
Max.consumption(W/m²) |
720 |
720 |
720 |
720 |
720 |
720 |
|
Ave.consumption(W/m²) |
240 |
240 |
240 |
240 |
240 |
200 |
|
Brightness(CD/m²) |
5000 |
5000 |
5500 |
5000 |
6000 |
4500 |
|
Color temperature(K) |
8500 |
8500 |
8500 |
8500 |
8500 |
8500 |
|
View angle(H/V) |
170°/120° |
170°/120° |
170°/120° |
170°/120° |
170°/120° |
170°/120° |
|
Refresh rate(Hz) |
1920 |
1920 |
1920 |
1920 |
1920 |
1920 |
|
Working temperature（℃） |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
|
Protect degree(F/B) |
IP65 |
IP65 |
IP65 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
|
Grey / scale（bit） |
14 |
14 |
14 |
14 |
14 |
14 |
|
Gross Weight（kg） |
109kg （Estimated data,2pcs /Case） |
|
Outer Package Size |
1030*388*1150mm （Estimated data,2pcs /Case） |
|

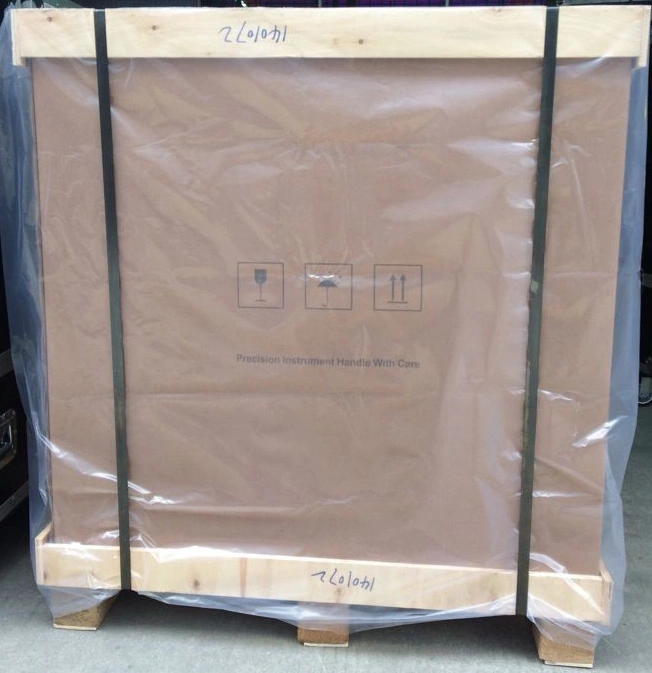

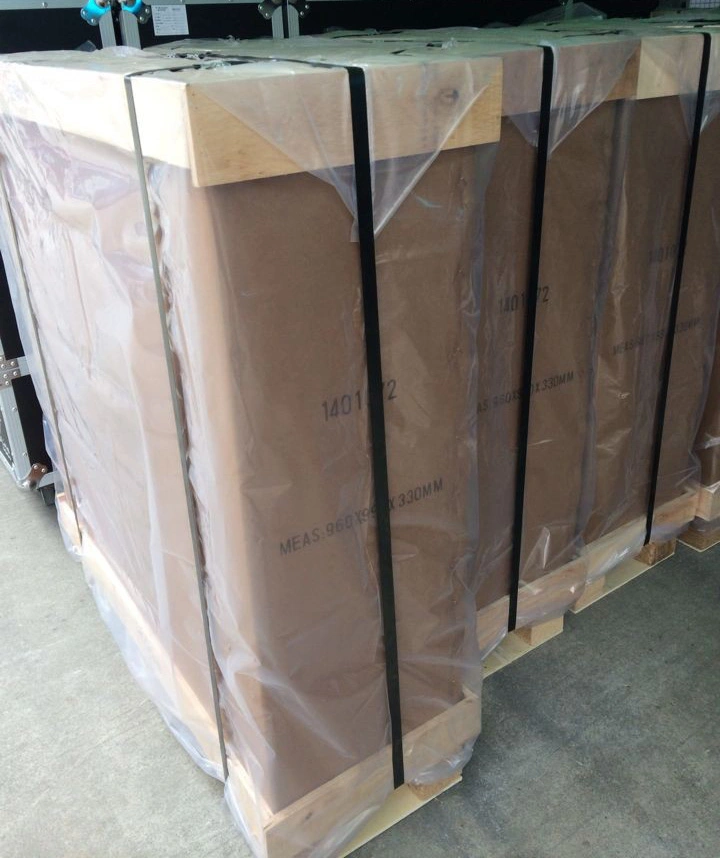

Packing Material |
Carton+Pearl cotton +wooden pallet |
