U-Box

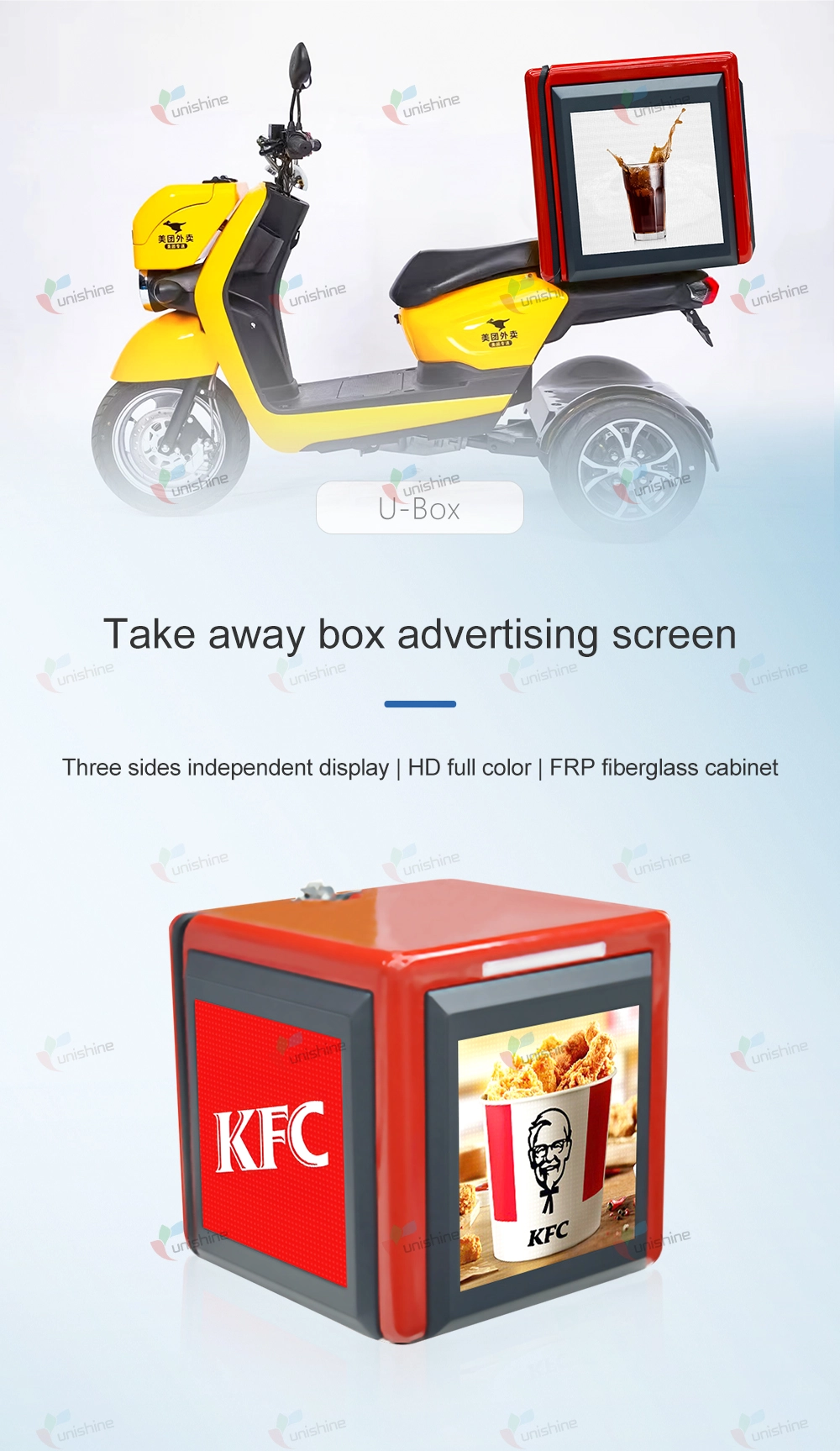

Take Away LED Screen Box

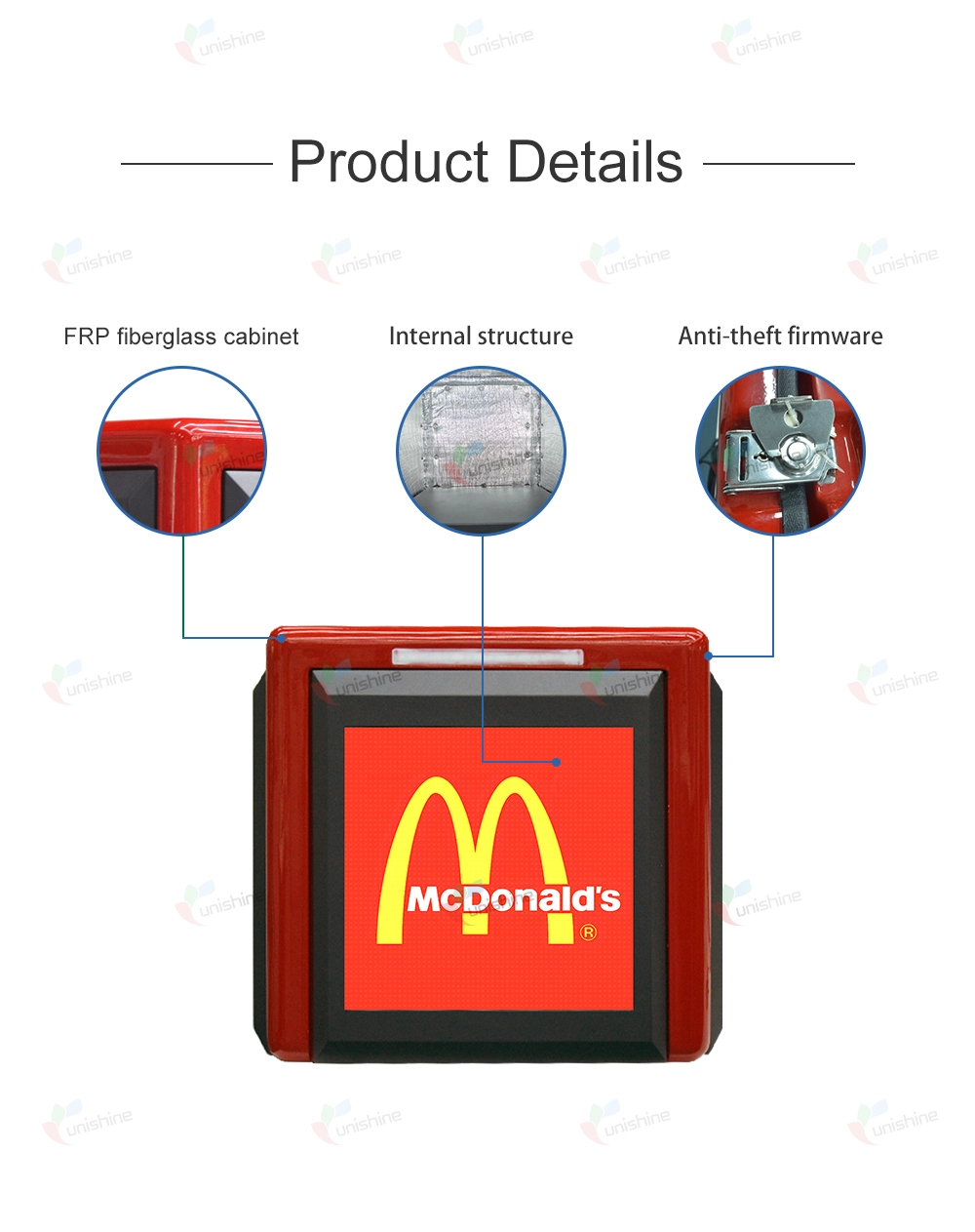

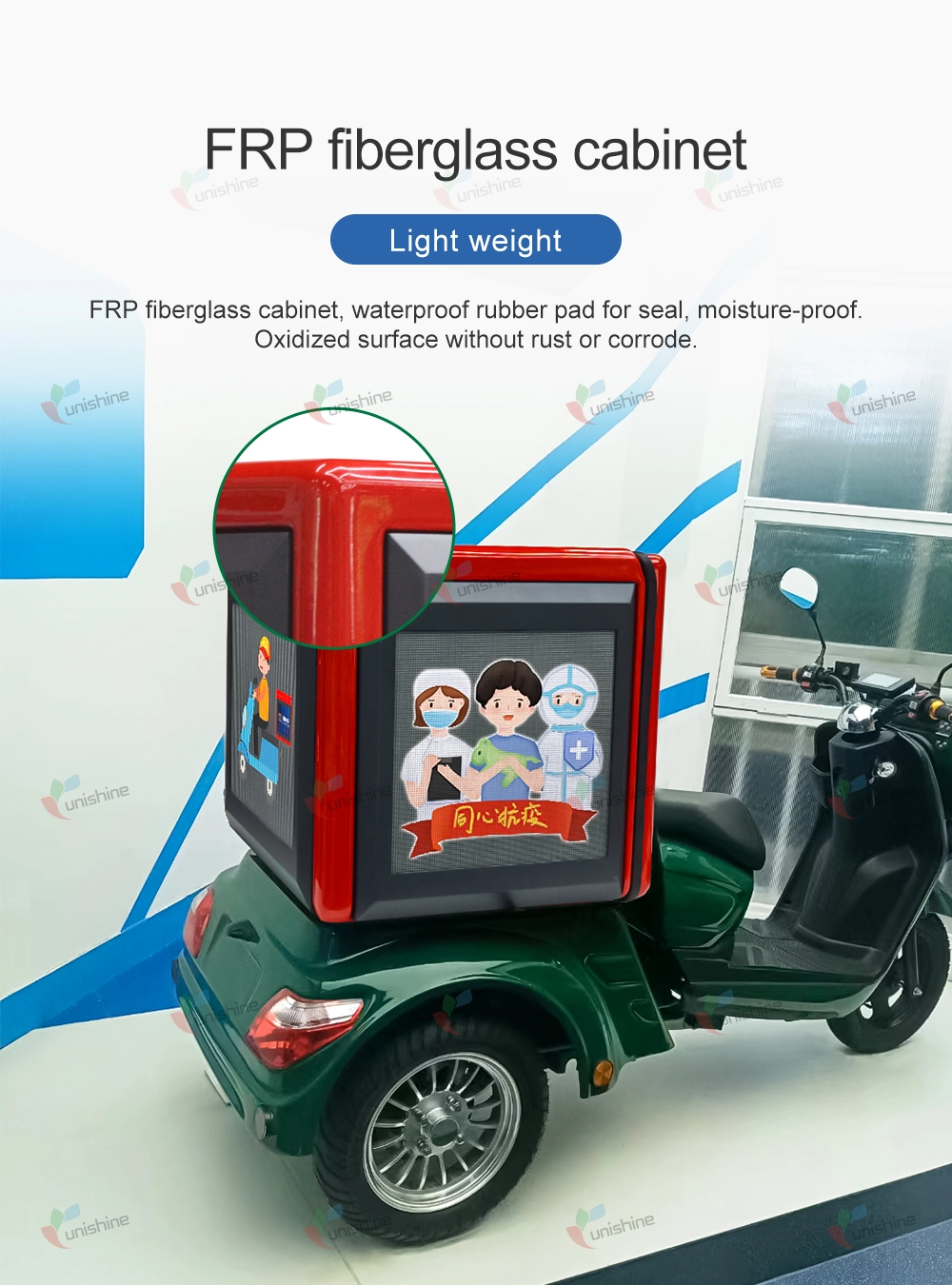

1.FRP fiberglass cabinet, waterproof rubber pad for seal, moisture-proof;
2.Oxidized surface without rust or corrode;

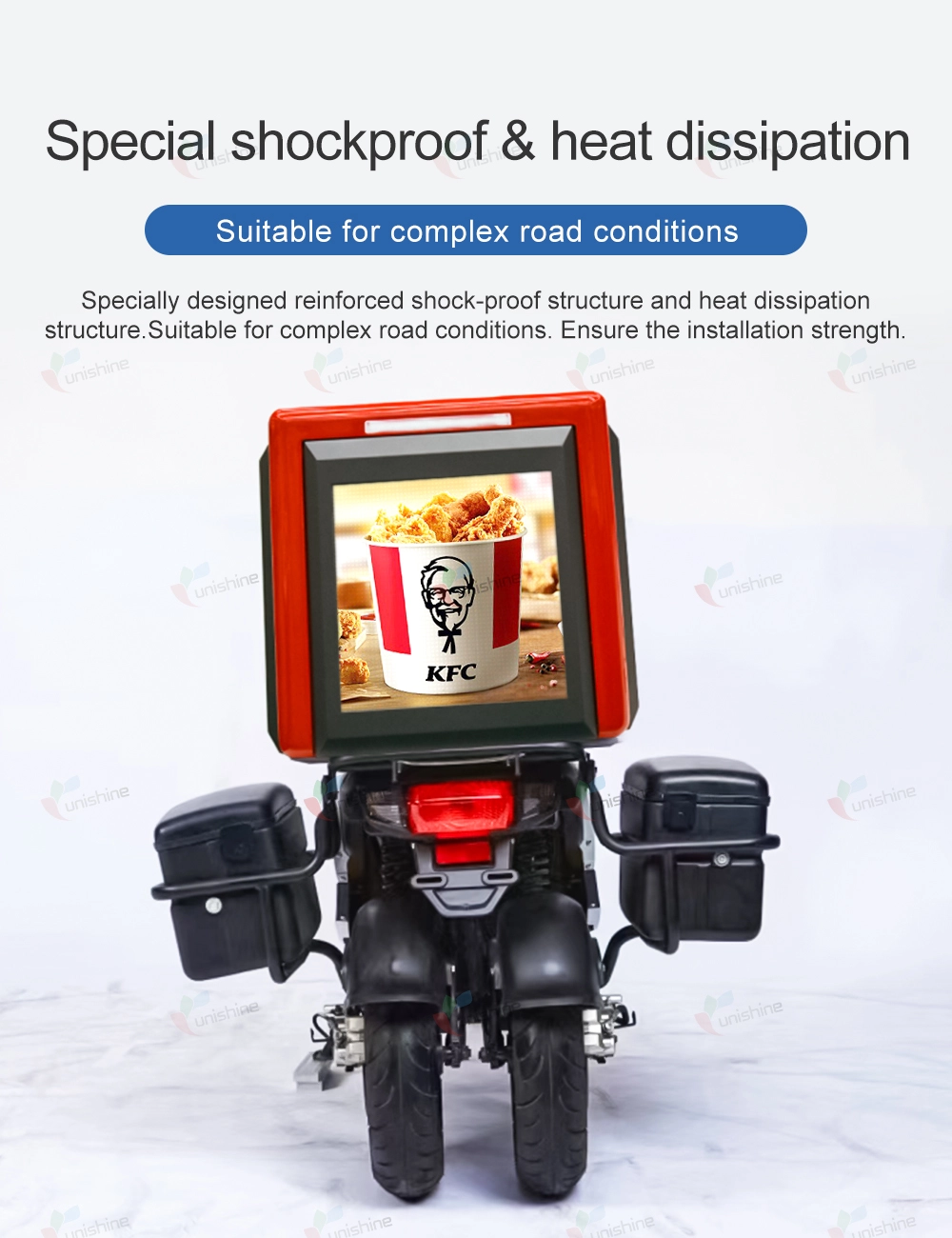

3.Specially designed reinforced shock-proof structure and heat dissipation structure;

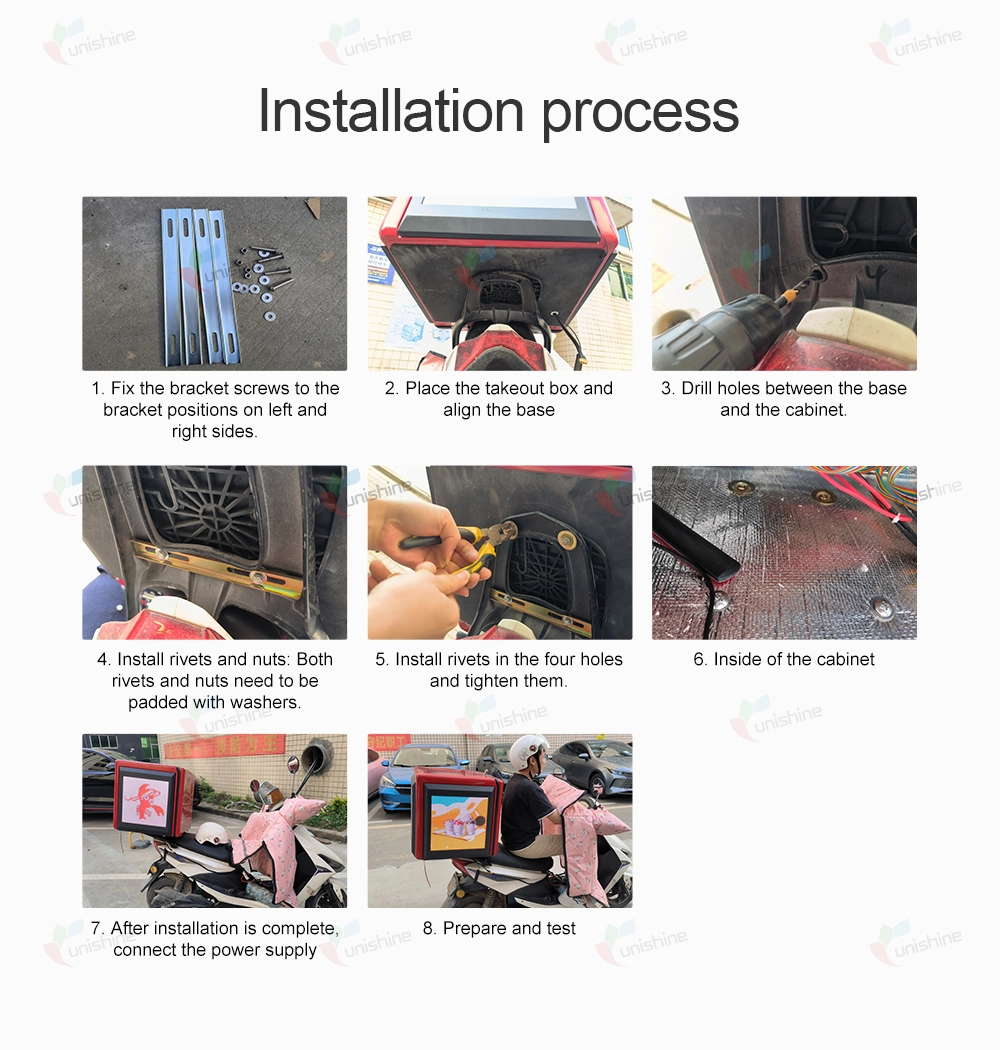

4.Suitable for complex road conditions. Ensure the installation strength;
5.Special shockproof & heat dissipation structural design;
6.Suitable for complex road conditions.
|
U-Box |
|||
|
Pixel pitch(mm) |
2.5mm |
3mm |
4mm |
|
Resolution of module（dot） |
128*128x3 |
128*112x3 |
96*84x3 |
|
Module size(mm) |
320*320x3 |
384*336x3 |
384*336x3 |
|
Display size(mm) |
320*320x3 |
384*336x3 |
384*336x3 |
|

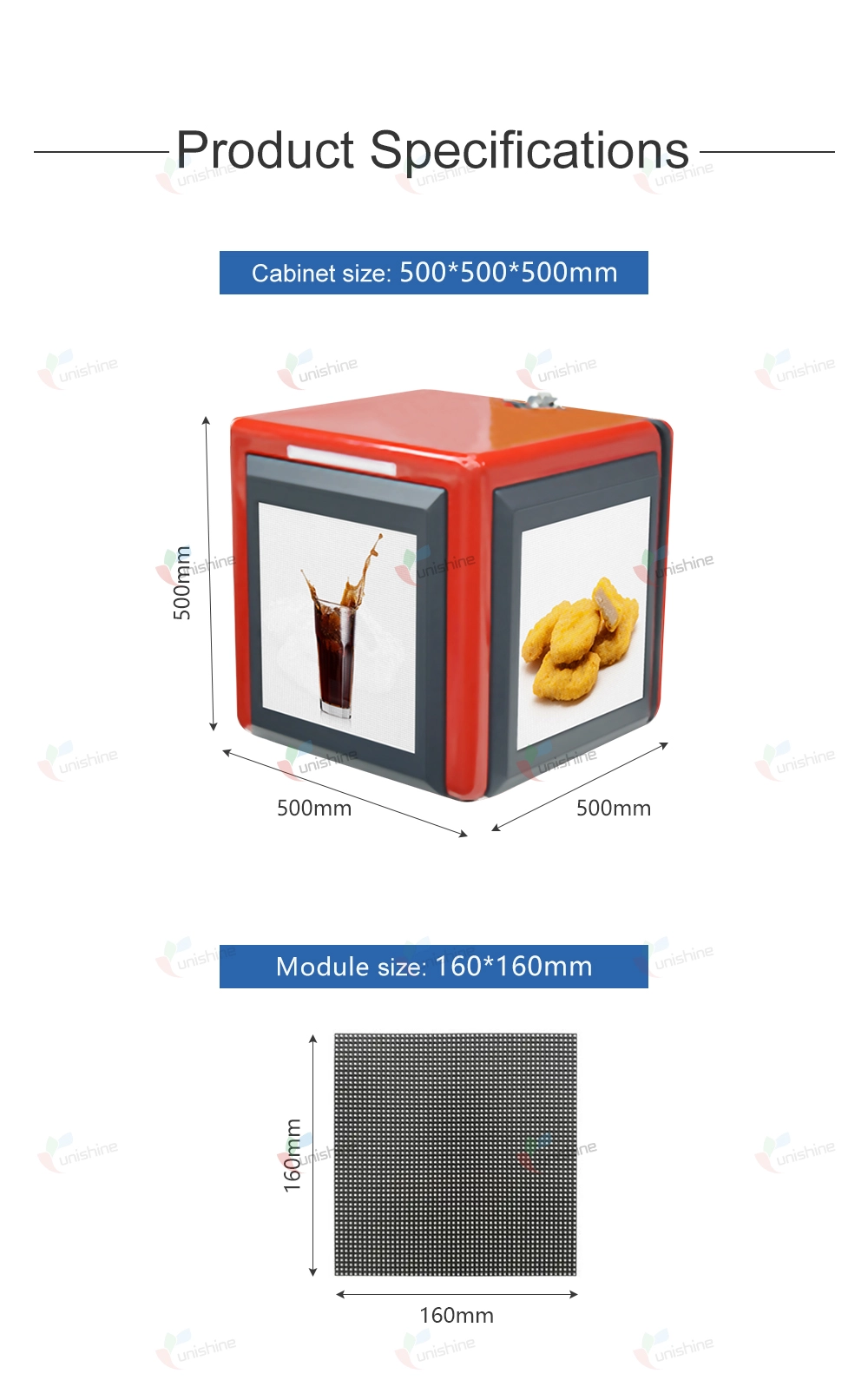

Cabinet size(mm) |
500*500*500 |
500*500*500 |
500*500*500 |
|

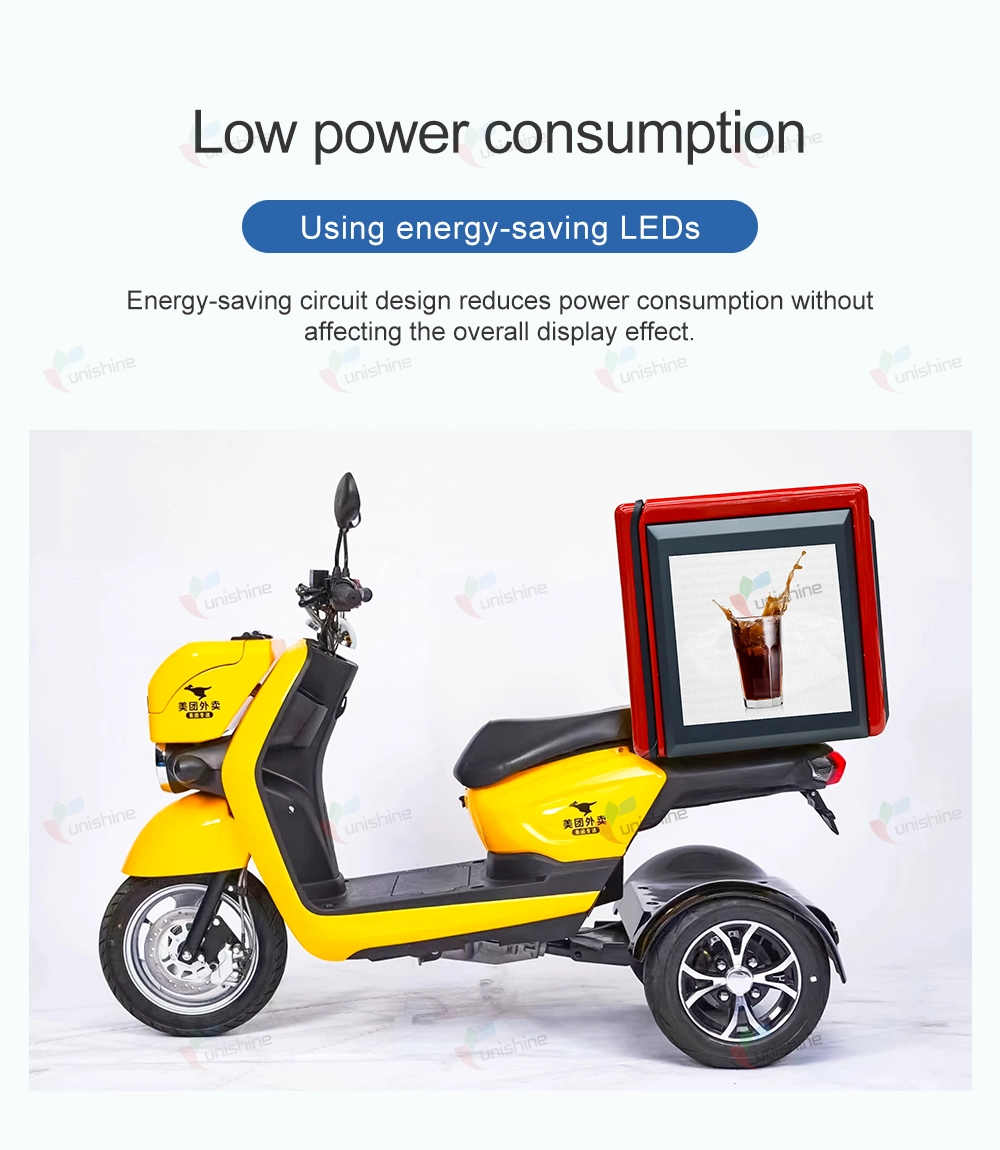

Ave.consumption(W/m²) |
70 |
70 |
70 |
|

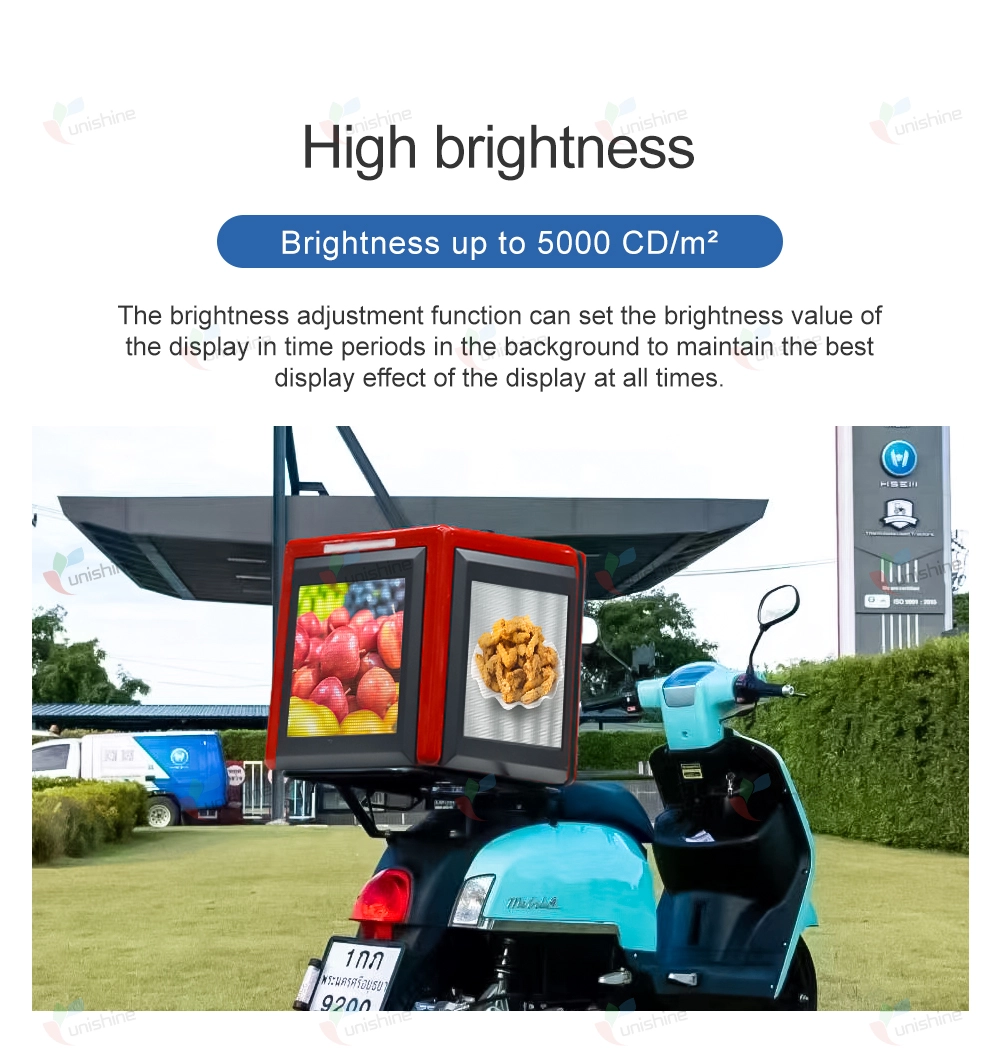

Brightness(CD/m²) |
4500 |
4500 |
4500 |
|
View angle(H/V) |
160° |
160° |
160° |
|
Refresh rate(Hz) |
3840 |
3840 |
1920 |
|
Weight(KG) |
16 |
16 |
15 |
|
Working temperature（℃） |
-20 ~50℃ |
-20 ~50℃ |
-20 ~50℃ |
|
Protect degree(F/B) |
IP55 |
IP55 |
IP65 |
|
Grey / scale（bit） |
16bit |
13bit |
16bit |
